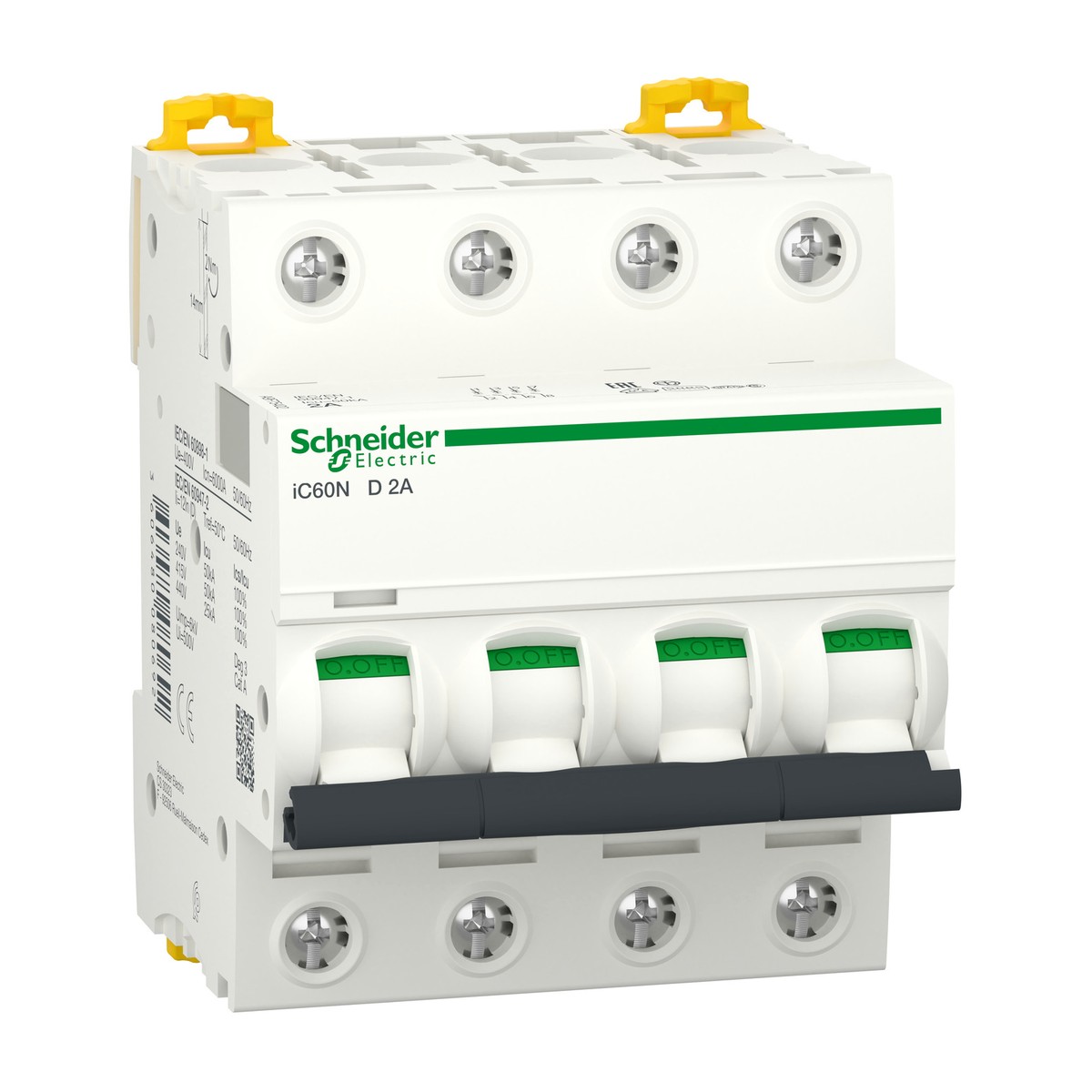

Schneider Electric A9F75402 Miniature Circuit Breaker, 4P, 2A, D-curve. The Schneider Electric A9F75402 Acti9 iC60N Miniature Circuit Breaker (MCB) is engineered for robust overcurrent protection in final distribution circuits. This 4-pole, 2A, D-curve thermal-magnetic MCB provides reliable safeguarding for both AC and DC networks. It features a breaking capacity of 6000 A Icn at 400 V AC (conforming to EN/IEC 60898-1) and an impressive 50 kA Icu at 380-415 V AC (conforming to EN/IEC 60947-2), accommodating a wide range of operational voltages from 12-440 V AC and up to 250 V DC, with 50/60 Hz frequency compatibility. Its D-curve characteristic makes it ideal for protecting circuits with high inrush currents, commonly found in industrial motor applications or transformer circuits. Designed for easy integration, the unit offers 35 mm DIN rail mounting and ensures suitability for isolation. This Schneider Electric A9F75402 MCB is a critical component for ensuring electrical safety and continuity in demanding environments across Egypt and the Gulf, including sectors like cement production, oil & gas, water treatment, and building services.
Details
- Brand: Schneider Electric
- Part number: A9F75402
- Series: Acti9 iC60
- Category: Miniature Circuit Breaker
Related Schneider Electric parts
- Schneider Electric A9F75404 — Miniature Circuit Breaker, 4P, 4A, D curve
- Schneider Electric A9F75406 — Miniature circuit breaker (MCB) Acti9 iC60N 4P 6A D-curve
- Schneider Electric A9F75416 — Acti9 iC60N Miniature Circuit Breaker (MCB) 4P 16A D-Curve
- Schneider Electric A9F75420 — Miniature Circuit Breaker Acti9 iC60N 4P 20A D-Curve
- Schneider Electric A9F75425 — Miniature Circuit Breaker iC60N 4P 25A D-Curve
- Schneider Electric A9F75432 — MCB, Acti9 iC60N, 4P, 32A, D-Curve
- Schneider Electric A9F75440 — Acti9 iC60N Miniature Circuit Breaker, 4P, 40A, D Curve
- Schneider Electric A9F75450 — Miniature Circuit Breaker Acti9 iC60N 4P 50A D-Curve
- Schneider Electric A9F77110 — Miniature Circuit Breaker Acti9 iC60N 1P 10A C-Curve
- Schneider Electric A9F77116 — Miniature circuit breaker iC60N 1P 16A C-curve
- Schneider Electric A9F77150 — Acti9 iC60N Miniature Circuit Breaker (MCB) 1P 50A C-curve
- Schneider Electric A9F77163 — Miniature Circuit Breaker iC60N 1P 63A C-curve
Specifications
- Standards
- EN/IEC 60947-2, EN/IEC 60898-1
- Curve code
- D
- Net weight
- 0.5 Kg
- Network type
- AC, DC
- Mounting support
- 35 mm DIN rail
- Poles description
- 4P
- [In] rated current
- 2 A
- Connection terminals
- Single terminal, 1…25 mm², rigid, copper
- Trip unit technology
- Thermal-magnetic
- Dimensions (H x W x D)
- 85 x 72 x 78.5 mm
- IP degree of protection
- IP20
- Manufacturer part number
- A9F75402
- Suitability for isolation
- Yes
- [Ue] rated operational voltage
- 12...440 V AC 50/60 Hz, <= 250 V DC
- Breaking capacity (IEC/EN 60898-1)
- 6000 A Icn at 400 V AC 50/60 Hz
- Ambient air temperature for operation
- -35…70 °C
- Breaking capacity (IEC/EN 60947-2 AC)
- 50 KA Icu at 380-415 V AC 50/60 Hz
- Breaking capacity (IEC/EN 60947-2 DC)
- 10 KA Icu at <= 250 V DC
