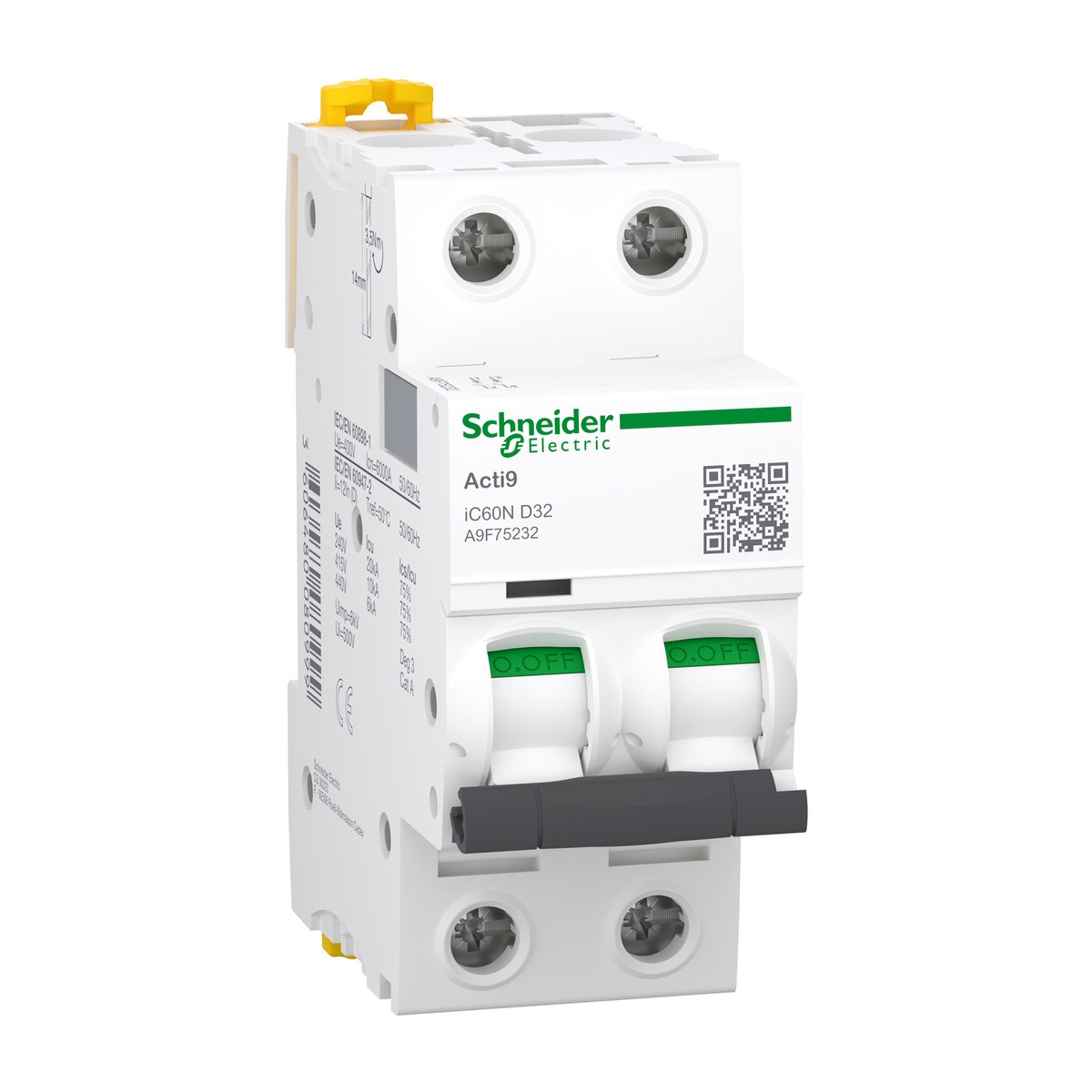

Schneider Electric A9F75232 Miniature Circuit Breaker Acti9 iC60N 2P 32A D-Curve. The Schneider Electric A9F75232 is a robust Miniature Circuit Breaker (MCB) from the Acti9 iC60N range, specifically designed for reliable protection in final distribution circuits. This 2-pole, 32A device features a D-curve thermal-magnetic trip unit, ensuring effective protection against overcurrents and short-circuits. It is compatible with both AC and DC networks, supporting operational voltages across 220-240 V AC, 380-415 V AC, and up to 125 V DC, making it highly versatile for various electrical systems in the Gulf and Egypt. With a breaking capacity of 6000A according to IEC/EN 60898-1 at 400 V AC and 10kA according to IEC/EN 60947-2 at 380-415 V AC, the Schneider Electric A9F75232 provides excellent safety and performance. Its DIN-rail clip-on mounting and flexible terminal connections (1-35 mm² rigid copper) ensure straightforward installation in industrial and commercial panels. This MCB is suitable for isolation and offers an IP20 degree of protection. It is ideal for critical applications in sectors such as cement production, oil and gas facilities, water treatment plants, food and beverage processing, textiles, and general building services, where reliable circuit protection is paramount.
Details
- Brand: Schneider Electric
- Part number: A9F75232
- Series: Acti9 iC60
- Category: Miniature Circuit Breaker
Related Schneider Electric parts
- Schneider Electric A9F75263 — Miniature circuit breaker (MCB), 2P, 63A, D curve, 6000A (IEC/EN 60898-1), 10kA (IEC/EN 60947-2)
- Schneider Electric A9F75303 — Miniature Circuit Breaker (MCB) 3P 3A D-Curve
- Schneider Electric A9F75310 — Acti9 iC60N Miniature Circuit Breaker, 3P, 10A, D curve
- Schneider Electric A9F75325 — Acti9 iC60N Miniature Circuit Breaker 3P 25A D-Curve
- Schneider Electric A9F75402 — Miniature Circuit Breaker, 4P, 2A, D-curve
- Schneider Electric A9F75404 — Miniature Circuit Breaker, 4P, 4A, D curve
- Schneider Electric A9F75406 — Miniature circuit breaker (MCB) Acti9 iC60N 4P 6A D-curve
- Schneider Electric A9F75416 — Acti9 iC60N Miniature Circuit Breaker (MCB) 4P 16A D-Curve
- Schneider Electric A9F75420 — Miniature Circuit Breaker Acti9 iC60N 4P 20A D-Curve
- Schneider Electric A9F75425 — Miniature Circuit Breaker iC60N 4P 25A D-Curve
- Schneider Electric A9F75432 — MCB, Acti9 iC60N, 4P, 32A, D-Curve
- Schneider Electric A9F75440 — Acti9 iC60N Miniature Circuit Breaker, 4P, 40A, D Curve
Specifications
- Depth
- 78.5 Mm
- Width
- 36 Mm
- Height
- 85 Mm
- Curve code
- D
- Net weight
- 0.25 Kg
- Network type
- AC, DC
- Limitation class
- 3 conforming to EN/IEC 60898-1
- Mounting support
- 35 mm DIN rail
- Network frequency
- 50/60 Hz
- Poles description
- 2P
- [In] rated current
- 32 A
- Trip unit technology
- Thermal-magnetic
- Connections - terminals
- Single terminal (top or bottom) , for 1 cable(s) , 1…35 mm², rigid, copper
- IP degree of protection
- IP20 conforming to IEC 60529
- Manufacturer part number
- A9F75232
- Product or component type
- Miniature circuit-breaker
- Suitability for isolation
- Yes
- [Ue] rated operational voltage
- 12...440 V AC 50/60 Hz; <= 125 V DC
- Breaking capacity (IEC/EN 60898-1)
- 6000 A Icn at 400 V AC 50/60 Hz
- Ambient air temperature for operation
- -35…70 °C
- Breaking capacity (IEC/EN 60947-2, AC)
- 10 KA Icu at 380-415 V AC 50/60 Hz
- Breaking capacity (IEC/EN 60947-2, DC)
- 10 KA Icu at <= 125 V DC
