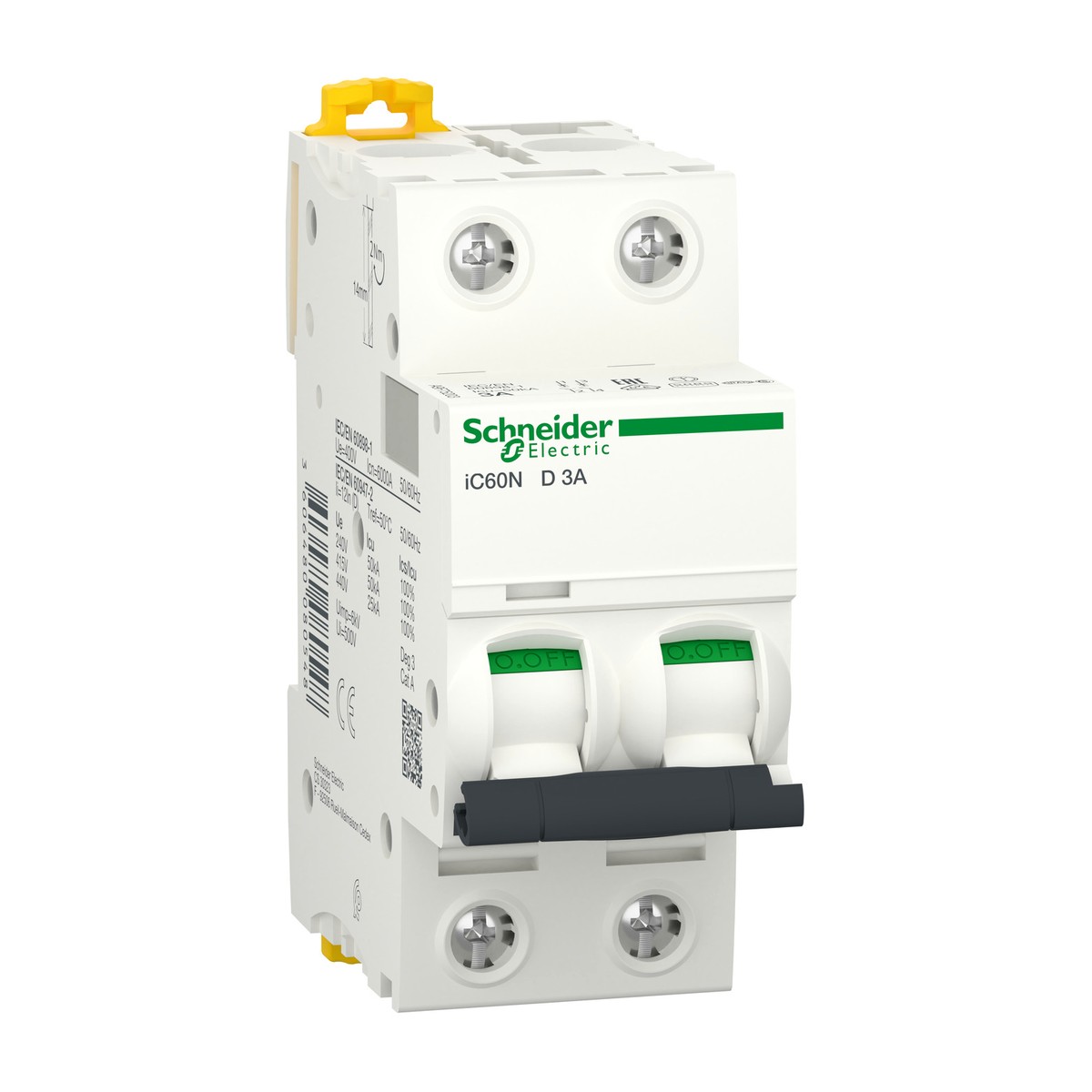

Schneider Electric A9F75203 Miniature circuit breaker iC60N 2P 3A D curve. The Schneider Electric A9F75203 is a robust Miniature Circuit Breaker (MCB) from the Acti9 iC60N series, specifically designed for dependable protection in final distribution circuits. This 2-pole, 3A, D-curve thermal-magnetic breaker offers exceptional performance across both AC and DC networks, operating effectively at 50/60 Hz. It supports a wide range of operational voltages, including 220-240 V AC and 380-415 V AC, as well as up to 125 V DC. Key safety specifications include a breaking capacity of 6000 A Icn at 400 V AC conforming to IEC/EN 60898-1, and up to 50 KA Icu at 380-415 V AC conforming to IEC/EN 60947-2. Its DIN rail mountable design and IP20 protection make it an ideal choice for demanding industrial environments found in Egypt and the Gulf region, such as cement plants, oil and gas facilities, water treatment, food and beverage processing, textiles, and critical building services. Engineered for durability with 20,000 mechanical and 10,000 electrical cycles, this Schneider Electric A9F75203 MCB ensures reliable protection and isolation.
Details
- Brand: Schneider Electric
- Part number: A9F75203
- Series: Acti9 iC60
- Category: Miniature Circuit Breaker
Related Schneider Electric parts
- Schneider Electric A9F75206 — Acti9 iC60N miniature circuit breaker 2P 6A D-curve
- Schneider Electric A9F75232 — Miniature Circuit Breaker Acti9 iC60N 2P 32A D-Curve
- Schneider Electric A9F75263 — Miniature circuit breaker (MCB), 2P, 63A, D curve, 6000A (IEC/EN 60898-1), 10kA (IEC/EN 60947-2)
- Schneider Electric A9F75303 — Miniature Circuit Breaker (MCB) 3P 3A D-Curve
- Schneider Electric A9F75310 — Acti9 iC60N Miniature Circuit Breaker, 3P, 10A, D curve
- Schneider Electric A9F75325 — Acti9 iC60N Miniature Circuit Breaker 3P 25A D-Curve
- Schneider Electric A9F75402 — Miniature Circuit Breaker, 4P, 2A, D-curve
- Schneider Electric A9F75404 — Miniature Circuit Breaker, 4P, 4A, D curve
- Schneider Electric A9F75406 — Miniature circuit breaker (MCB) Acti9 iC60N 4P 6A D-curve
- Schneider Electric A9F75416 — Acti9 iC60N Miniature Circuit Breaker (MCB) 4P 16A D-Curve
- Schneider Electric A9F75420 — Miniature Circuit Breaker Acti9 iC60N 4P 20A D-Curve
- Schneider Electric A9F75425 — Miniature Circuit Breaker iC60N 4P 25A D-Curve
Specifications
- Depth
- 78.5 Mm
- Width
- 36 Mm
- Height
- 85 Mm
- Curve code
- D
- Network type
- AC, DC
- Mounting support
- 35 mm DIN rail
- Poles description
- 2P
- Tightening torque
- 2 N.M top or bottom
- [In] rated current
- 3 A
- Trip unit technology
- Thermal-magnetic
- Connections - terminals
- Single terminal (top or bottom), for 1 cable(s), 1…25 mm², rigid, copper
- IP degree of protection
- IP20
- Manufacturer part number
- A9F75203
- [Ue] rated operational voltage
- 12...133 V AC 50/60 Hz, 220...240 V AC 50/60 Hz, 380...415 V AC 50/60 Hz, 440 V AC 50/60 Hz, <= 125 V DC
- Breaking capacity (IEC/EN 60898-1)
- 6000 A Icn at 400 V AC 50/60 Hz
- Breaking capacity (IEC/EN 60947-2)
- 50 KA Icu at 380...415 V AC 50/60 Hz
- Ambient air temperature for operation
- -35…70 °C
