6AV2123-2GB03-0AX0

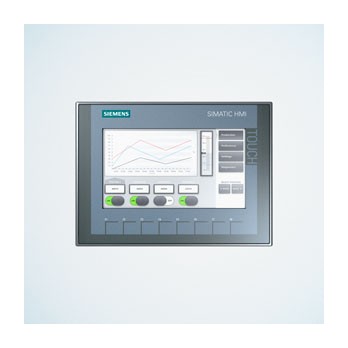

Siemens 6AV2123-2GB03-0AX0 SIMATIC HMI KTP700 Basic Panel, 7" TFT, Key/Touch. SIMATIC HMI, KTP700 Basic, Basic Panel, Key/touch operation, 7" TFT display, 65536 colors, PROFINET interface, configurable from WinCC Basic V13/ STEP 7 Basic V13, contains open-source software, which is provided free of charge see enclosed CD. It belongs to Standard devices 2nd Generation. Recorded manufacturer technical characteristics include Display width: 154.1 mm; Display height: 85.9 mm; USB interfaces: 1; Screen diagonal: 7 in; Number of colors: 65536; User data memory: 10 Mbyte; Inrush current A²s: 0.2 A²·s; Supply voltage (DC): 24 V.
Details
- Brand: Siemens
- Part number: 6AV2123-2GB03-0AX0
- Series: SIMATIC HMI Basic Panels
- Category: PLC / Automation Module
Related Siemens parts
- Siemens 6ES7211-1AE40-0XB0 — SIMATIC S7-1200 CPU 1211C, Compact CPU, DC/DC/DC
- Siemens 6ES7231-4HD32-0XB0 — SIMATIC S7-1200 SM 1231 Analog Input Module
- Siemens 6ES7214-1AG40-0XB0 — SIMATIC S7-1200, CPU 1214C, COMPACT CPU, DC/DC/DC
- Siemens 6ES7148-4PC00-0HA0 — SIMATIC ET200PRO PS/1AC/24VDC/8A/IP67
- Siemens 3RK7271-1AA30-0AA0 — SIMATIC S7-1200 DCM 1271 Data Decoupling Module
- Siemens 6AG1333-4BA00-7AA0 — SIPLUS S7-1500 PM 1507 24V/8A Stabilized Power Supply
- Siemens 3RT2015-1BB41 — Power contactor, AC-3 7 A, 3 kW / 400 V 1 NO, 24 V DC 3-pole, Size S00 screw terminal
- Siemens 6EP1334-3BA10 — SITOP PSU200M 10 A Stabilized Power Supply
- Siemens 6SL3210-1KE11-8UF2 — SINAMICS G120C Drive
- Siemens 7PV1508-1AW30 — Timing relay, electronic Multifunction 1 change-over contact, 7 functions 7 time ranges 0.05 s ... 100 h 12-240 V AC/DC with LED, Screw terminal
- Siemens 3RT2016-1AP01 — SIRIUS Power Contactor 3RT2 9 A, 230 V AC Coil, Size S00
- Siemens 3VA1110-4EF32-0AA0 — Molded Case Circuit Breaker 3VA1 IEC Frame 160 Line Protection TM240
Request a quote for 6AV2123-2GB03-0AX0
Specifications
- Product type
- PLC / Automation Module
- Display width
- 154.1 mm
- Display height
- 85.9 mm
- USB interfaces
- 1
- Screen diagonal
- 7 in
- Number of colors
- 65536
- User data memory
- 10 Mbyte
- Inrush current A²s
- 0.2 A²·s
- Supply voltage (DC)
- 24 V
- Vertical resolution
- 480 pixels
- Horizontal resolution
- 800 pixels
- Number of function keys
- 8
- Manufacturer part number
- 6AV2123-2GB03-0AX0
- Typical power consumption
- 5.5 W
- Backlight MTBF (at 25 °C)
- 20000 h
- Current consumption (rated value)
- 230 mA
- Permissible range, lower limit (DC)
- 19.2 V
- Permissible range, upper limit (DC)
- 28.8 V
