6ES7214-1AG40-0XB0

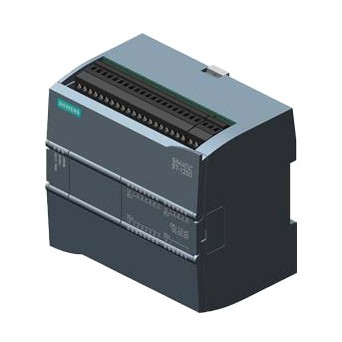

Siemens 6ES7214-1AG40-0XB0 SIMATIC S7-1200, CPU 1214C, COMPACT CPU, DC/DC/DC. SIMATIC S7-1200, CPU 1214C, compact CPU, DC/DC/DC, onboard I/O: 14 DI 24 V DC; 10 DO 24 V DC; 2 AI 0-10 V DC, power supply: DC 20.4-28.8 V DC. It belongs to CPU 1214C. Recorded manufacturer technical characteristics include Flag Memory (max): 8 KB; Inrush Current (max): 12 A; Power Loss (typical): 12 W; Onboard Analog Inputs: 2 AI 0-10V DC; Integrated Load Memory: 4 MB; Onboard Digital Inputs: 14 DI 24V DC.
Details
- Brand: Siemens
- Part number: 6ES7214-1AG40-0XB0
- Series: SIMATIC S7-1200
- Category: PLC / Automation Module
Related Siemens parts
- Siemens 3RK7271-1AA30-0AA0 — SIMATIC S7-1200 DCM 1271 Data Decoupling Module
- Siemens 6ES7211-1BE40-0XB0 — PLC CPU Module
- Siemens 6ES7211-1HE40-0XB0 — PLC CPU Module
- Siemens 6ES7212-1AE40-0XB0 — PLC CPU Module
- Siemens 6ES7212-1AF40-0XB0 — PLC CPU Module
- Siemens 6ES7212-1AF50-0XB0 — PLC CPU Module
- Siemens 6ES7212-1AG50-0XB0 — PLC CPU Module
- Siemens 6ES7212-1BE40-0XB0 — PLC CPU Module
- Siemens 6ES7212-1BG50-0XB0 — PLC CPU Module
- Siemens 6ES7212-1HE40-0XB0 — PLC CPU Module
- Siemens 6ES7212-1HF40-0XB0 — PLC CPU Module
- Siemens 6ES7212-1HF50-0XB0 — PLC CPU Module
Request a quote for 6ES7214-1AG40-0XB0
Specifications
- Product type
- PLC / Automation Module
- Flag Memory (max)
- 8 KB
- Inrush Current (max)
- 12 A
- Power Loss (typical)
- 12 W
- Onboard Analog Inputs
- 2 AI 0-10V DC
- Integrated Load Memory
- 4 MB
- Onboard Digital Inputs
- 14 DI 24V DC
- Onboard Digital Outputs
- 10 DO 24 V DC
- Manufacturer part number
- 6ES7214-1AG40-0XB0
- Current Consumption (max)
- 1500 mA
- Retentive Data Area (max)
- 10 KB
- Supply Voltage (DC) Range
- 20.4 - 28.8 V
- Supply Voltage (DC) Rated
- 24 V
- Bit Operation Time (typical)
- 0.085 µs
- Word Operation Time (typical)
- 1.7 µs
- Current Consumption (CPU only)
- 500 mA
- Output Current Backplane Bus (max)
- 1600 mA
- Local Data per Priority Class 1 (max)
- 16 KB
- Floating Point Operation Time (typical)
- 2.3 µs
