6ES7231-4HD32-0XB0

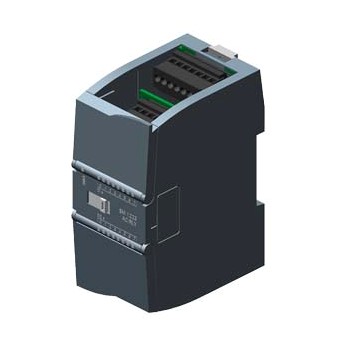

Siemens 6ES7231-4HD32-0XB0 SIMATIC S7-1200 SM 1231 Analog Input Module. SIMATIC S7-1200, Analog input, SM 1231, 4 AI, +/-10 V, +/-5 V, +/-2.5 V, or 0-20 mA/4-20 mA, 12 bit+sign (13 bit ADC). It belongs to SM 1231 analog input modules. Recorded manufacturer technical characteristics include Alarms: Yes; Analog inputs: 4; IP Protection: IP20; Integration time: Parametrizable; Loss power (typ.): 1.5 W; Rated voltage (DC): 24 V; Diagnostic function: Yes; Input current ranges: 0-20 mA, 4-20 mA.
Details
- Brand: Siemens
- Part number: 6ES7231-4HD32-0XB0
- Series: SIMATIC S7-1200
- Category: PLC / Automation Module
Related Siemens parts
- Siemens 6ES7214-1AG40-0XB0 — SIMATIC S7-1200, CPU 1214C, COMPACT CPU, DC/DC/DC
- Siemens 3RK7271-1AA30-0AA0 — SIMATIC S7-1200 DCM 1271 Data Decoupling Module
- Siemens 6ES7211-1BE40-0XB0 — PLC CPU Module
- Siemens 6ES7211-1HE40-0XB0 — PLC CPU Module
- Siemens 6ES7212-1AE40-0XB0 — PLC CPU Module
- Siemens 6ES7212-1AF40-0XB0 — PLC CPU Module
- Siemens 6ES7212-1AF50-0XB0 — PLC CPU Module
- Siemens 6ES7212-1AG50-0XB0 — PLC CPU Module
- Siemens 6ES7212-1BE40-0XB0 — PLC CPU Module
- Siemens 6ES7212-1BG50-0XB0 — PLC CPU Module
- Siemens 6ES7212-1HE40-0XB0 — PLC CPU Module
- Siemens 6ES7212-1HF40-0XB0 — PLC CPU Module
Request a quote for 6ES7231-4HD32-0XB0
Specifications
- Alarms
- Yes
- Product type
- PLC / Automation Module
- Analog inputs
- 4
- IP Protection
- IP20
- Rated voltage
- 10 V
- Integration time
- Parametrizable
- Loss power (typ.)
- 1.5 W
- Rated voltage (DC)
- 24 V
- Diagnostic function
- Yes
- Input current ranges
- 0-20 mA, 4-20 mA
- Input voltage ranges
- ±10 V, ±5 V, ±2.5 V
- Operating temperature
- -20 °C to 60 °C (horizontal), -20 °C to 50 °C (vertical)
- Resolution (incl. sign)
- 12 bit + sign
- Manufacturer part number
- 6ES7231-4HD32-0XB0
- Cycle time (all channels)
- 625 µs
- Measuring value smoothing
- Parametrizable
- Noise voltage suppression
- 40 dB
- Common mode voltage (max.)
- 12 V
- Current consumption (typ.)
- 45 mA
- Input resistance (current)
- 280 Ohm
- Input resistance (voltage)
- ≥9 MOhm
- Temperature error (25 °C)
- ±0.1 %
- Basic error limit (current)
- ±0.1 %
- Basic error limit (voltage)
- ±0.1 %
- Storage/transport temperature
- -40 °C to 70 °C
- Temperature error (up to 55 °C)
- ±0.2 %
- Max. input current (destruction limit)
- 40 mA
- Max. input voltage (destruction limit)
- 35 V
- Current consumption from backplane bus DC 5 V (typ.)
- 80 mA
