3VA1110-4EF32-0AA0

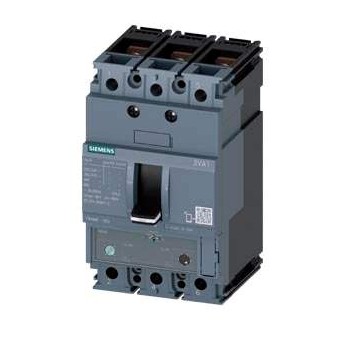

Siemens 3VA1110-4EF32-0AA0 Molded Case Circuit Breaker 3VA1 IEC Frame 160 Line Protection TM240. circuit breaker 3VA1 IEC Frame 160 breaking capacity class S Icu=36 kA @ 415 V 3-pole, line protection TM240, ATAM, In=100 A overload protection Ir=70 A...100 A short-circuit protection Ii=5...10 x In nut keeper kit. It belongs to 3VA Molded Case Circuit Breakers up to 1600 A, IEC. Recorded manufacturer technical characteristics include Depth: 70 mm; Poles: 3; Width: 76.2 mm; Height: 130 mm; Net Weight: 917 g; Rated current: 100 A; Protection class: IP40; Rated insulation voltage: 800 V.
Details
- Brand: Siemens
- Part number: 3VA1110-4EF32-0AA0
- Series: SENTRON 3VA1
- Category: Circuit Breaker
Related Siemens parts
- Miniature Circuit Breaker 5SY6116-7 1P 16A C 6kA
- Siemens 3RV2021-4AA10 — SIRIUS 3RV2 Circuit Breaker S0 for Motor Protection
- Siemens 6EP1333-2BA20 — SITOP PSU100S 24 V/5 A stabilized power supply input: 120/230 V AC output: 24 V DC/5 A
- Siemens 3RW3016-1BB04 — SIRIUS soft starter S00 9 A, 4 kW/400 V, 40 °C 200-480 V AC, 24 V AC/DC Screw terminals
- Siemens 6ES7231-4HD32-0XB0 — SIMATIC S7-1200 SM 1231 Analog Input Module
- Siemens 3RH2140-1BB40 — contactor relay
- Siemens 3RT2026-1BB40 — CONTACTOR, AC-3, 11KW/400V, 1NO+1NC, DC 24V, 3-POLE, SZ S0 SCREW TERMINAL
- Siemens 3RH2911-1HA22 — AUX.SWITCH BLOCK,FRONT,2NO+2NC
- Siemens 6ES7214-1AG40-0XB0 — SIMATIC S7-1200, CPU 1214C, COMPACT CPU, DC/DC/DC
- Siemens 6EP1333-3BA10 — SITOP PSU200M 5 A stabilized power supply input: 120/230-500 V AC output: 24 V DC/5 A
- Siemens 6EP1333-3BA10-8AC0 — SITOP PSU200M plus 5 A Stabilized power supply input: AC 120-230/230-500 V output: 24 V DC/5 A Option for with protective varnish
- Siemens 6EP1334-3BA10-8AB0 — SITOP PSU200M plus 10 A Stabilized power supply input: AC 120-230/230-500 V output: DC 24 V/10 A Option for with protective varnish
Request a quote for 3VA1110-4EF32-0AA0
Specifications
- Depth
- 70 mm
- Poles
- 3P
- Width
- 76.2 mm
- Height
- 130 mm
- Net Weight
- 917 g
- Product type
- Circuit Breaker
- Rated current
- 100 A
- Rated voltage
- 415 V
- Protection class
- IP40
- Manufacturer part number
- 3VA1110-4EF32-0AA0
- Rated insulation voltage
- 800 V
- Rated operating voltage AC
- 690 V
- Rated operating voltage DC
- 500 V
- Adjustable overload protection (Ir)
- 70 A - 100 A
- Adjustable short-circuit protection (Ii)
- 500 A - 1000 A
- Maximum short-circuit breaking capacity (Icu) at 415V
- 36 kA
- Operating short-circuit breaking capacity (Ics) at 415V
- 36 kA
