5SY6116-7

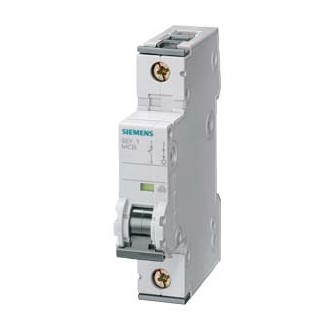

Siemens 5SY6116-7 Miniature Circuit Breaker 1P 16A C 6kA. Miniature circuit breaker 230/400 V 6kA, 1-pole, C, 16A, D=70 mm. It belongs to Basic Devices. Recorded manufacturer technical characteristics include Depth: 70 mm; Poles: 1; Frequency: 50/60 Hz; Rated current: 16 A; Tripping curve: C; IP Protection class: IP20 (with connected conductors); Power loss per pole: 1.6 W; Energy limiting class: 3.
Details
- Brand: Siemens
- Part number: 5SY6116-7
- Series: SENTRON
- Category: Circuit Breaker
Related Siemens parts
- Siemens 3VA1110-4EF32-0AA0 — Molded Case Circuit Breaker 3VA1 IEC Frame 160 Line Protection TM240
- Siemens 6ES7231-4HD32-0XB0 — SIMATIC S7-1200 SM 1231 Analog Input Module
- Siemens 3RH2140-1BB40 — contactor relay
- Siemens 3RT2026-1BB40 — CONTACTOR, AC-3, 11KW/400V, 1NO+1NC, DC 24V, 3-POLE, SZ S0 SCREW TERMINAL
- Siemens 3RH2911-1HA22 — AUX.SWITCH BLOCK,FRONT,2NO+2NC
- Siemens 6ES7214-1AG40-0XB0 — SIMATIC S7-1200, CPU 1214C, COMPACT CPU, DC/DC/DC
- Siemens 6EP1333-3BA10 — SITOP PSU200M 5 A stabilized power supply input: 120/230-500 V AC output: 24 V DC/5 A
- Siemens 6EP1333-3BA10-8AC0 — SITOP PSU200M plus 5 A Stabilized power supply input: AC 120-230/230-500 V output: 24 V DC/5 A Option for with protective varnish
- Siemens 6EP1334-3BA10-8AB0 — SITOP PSU200M plus 10 A Stabilized power supply input: AC 120-230/230-500 V output: DC 24 V/10 A Option for with protective varnish
- Siemens 6EP1336-3BA10 — SITOP PSU8200 20 A stabilized power supply input: 120-230 V AC 110-220 V DC output: 24 V DC/20 A
- Siemens 6EP3333-8SB00-0AY0 — SITOP PSU8200 24 V/5 A stabilized power supply input: 120/230 V AC output: 24 V DC/5 A
- Siemens 6EP3334-8SB00-0AY0 — SITOP PSU8200 24 V/10 A stabilized power supply input: 120/230 V AC output: 24 V DC/10 A
Specifications
- Depth
- 70 mm
- Poles
- 1P
- Frequency
- 50/60 Hz
- Product type
- Circuit Breaker
- Rated current
- 16A
- Rated voltage
- 230/400 V
- Tripping curve
- C
- IP Protection class
- IP20 (with connected conductors)
- Power loss per pole
- 1.6 W
- Energy limiting class
- 3
- Mechanical service life
- 20000 switching cycles
- Manufacturer part number
- 5SY6116-7
- Rated operational voltage AC
- 400 V
- Breaking capacity acc. to UL 1077
- 5 kA
- Breaking capacity acc. to EN 60898
- 6 kA
- Rated insulation voltage AC (multi-phase)
- 440 V
- Breaking capacity acc. to IEC 60947-2 (DC)
- 15 kA
- Rated insulation voltage AC (single-phase)
- 250 V
