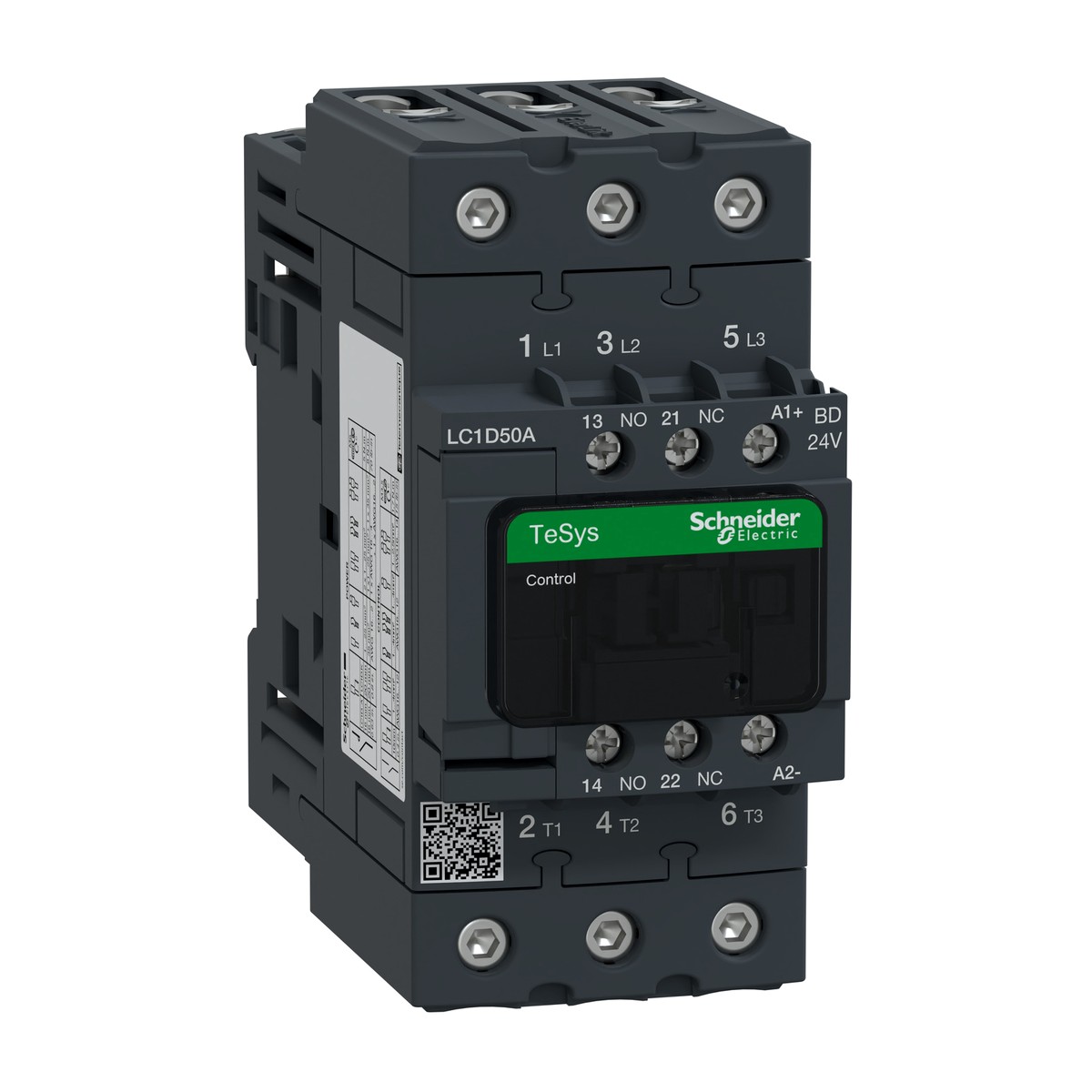

LC1D50ABD
Schneider Electric LC1D50ABD TeSys Deca contactor 50A AC-3 3P with 24V DC coil. The Schneider Electric TeSys Deca LC1D50ABD contactor is a robust three-pole IEC power contactor designed for reliable motor control and load switching in industrial panels. This versatile component features 3 NO main contacts and an optimal 50 A AC-3 rated operational current at <= 440 V AC. It comes equipped with a 24 V DC standard control coil, ensuring consistent performance, and utilizes secure screw clamp terminals for both power and control circuits. With a rated operational voltage of up to 690 V AC for the power circuit, it efficiently handles motor loads, providing 22 kW at 380/400 V AC 50/60 Hz (AC-3). The LC1D50ABD is suitable for diverse applications in Egypt and the Gulf, including cement production, oil and gas operations, water treatment facilities, food and beverage processing, textiles, and building services. Built for durability, it boasts a mechanical durability of 10 Mcycles and an electrical durability of 1.45 Mcycles for 50 A AC-3 operation. Certified to international standards like IEC 60947-4-1 and bearing CE, UL, CCC, and Marine certifications, this contactor offers high reliability. For a competitive quote on the Schneider Electric LC1D50ABD contactor, please submit your request.
Details
- Brand: Schneider Electric
- Part number: LC1D50ABD
- Series: TeSys Deca
- Category: Contactor
Related Schneider Electric parts
- TeSys Deca LC2D09ED reversing contactor pair 3P 9A AC-3 with 48V DC coil
- TeSys Deca LC2D09F7 reversing contactor 9 A AC-3 3P with 110 V AC coil
- Schneider Electric LADN13 — Auxiliary Contact Block, TeSys Deca, 1NO + 3NC, Front Mount, Screw Clamp Terminals
- Schneider Electric GV2L04 — TeSys GV2L Motor Circuit Breaker 3P 0.63A Magnetic Rotary Handle Screw Clamp Terminals
- Schneider Electric GV2L05 — TeSys Deca GV2L motor circuit breaker 3P 1A magnetic rotary handle screw clamp
- Schneider Electric GV2L06 — Motor circuit breaker 3P 1.6A magnetic rotary handle screw clamp terminals
- Schneider Electric GV2L07 — TeSys GV2L Motor Circuit Breaker 3P 2.5A Magnetic Rotary Handle
- Schneider Electric GV2L08 — TeSys Deca GV2L motor circuit breaker 3P 4A magnetic rotary handle screw clamp
- Schneider Electric GV2L10 — TeSys Deca Motor Circuit Breaker, 3P, 6.3A, Magnetic, Rotary Handle, Screw Clamp Terminals
- Schneider Electric GV2L14 — TeSys GV2L Motor Circuit Breaker 3P 10A Magnetic Rotary Handle
- TeSys GV2L16 motor circuit breaker 14A 3P magnetic rotary handle
- Schneider Electric GV2L20 — TeSys Deca GV2L motor circuit breaker 3P 18A magnetic rotary handle
Specifications
- Depth
- 120 mm
- Width
- 55 mm
- Height
- 122 mm
- Standards
- IEC 60947-4-1, IEC 60947-5-1
- Terminal type
- Screw clamp terminals
- Product weight
- 0.93 kg
- Coil technology
- Built-in bidirectional peak limiting diode suppressor
- Poles description
- 3P (3 NO)
- Utilisation category
- AC-3, AC-3e, AC-1, AC-4
- Mechanical durability
- 10 Mcycles
- Motor power kW (AC-3)
- 22 kW at 380/400 V AC 50/60 Hz
- Product certifications
- CE, UL, CCC, Marine
- Control circuit voltage
- 24 V DC
- IP degree of protection
- IP20 front face conforming to IEC 60529
- Manufacturer part number
- LC1D50ABD
- Electrical durability (AC-3)
- 1.45 Mcycles 50 A AC-3 at Ue <= 440 V
- Auxiliary contact composition
- 1 NO + 1 NC
- Rated operational current (AC-3)
- 50 A (at <60 °C) at <= 440 V AC
- Rated operational voltage (Power circuit)
- <= 690 V AC
- Permissible ambient air temperature around the device (Operating)
- -40…60 °C
