LC2D09ED

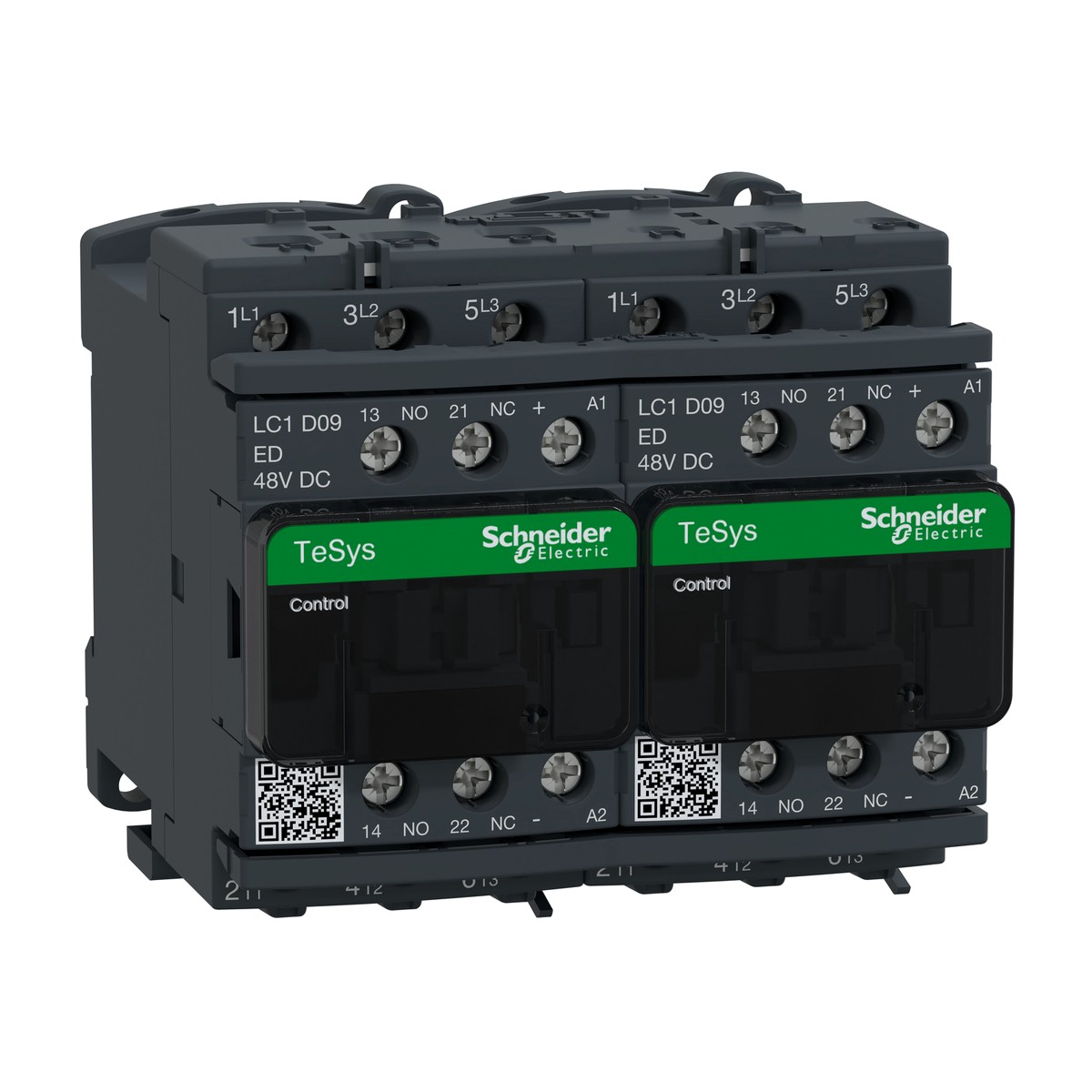

Schneider Electric LC2D09ED TeSys Deca reversing contactor pair 3P 9A AC-3 with 48V DC coil. The Schneider Electric LC2D09ED is a robust TeSys Deca reversing contactor pair, engineered for reliable motor control and resistive load applications in demanding industrial environments across Egypt and the Gulf region. This pre-assembled unit features a 3-pole configuration with 3 normally open (3NO) power contacts, making it ideal for controlling 3-phase AC motors up to 4 kW at 380-400 V AC. It boasts a rated operational current of 9 A for AC-3 utilization at up to 440 V AC, with a 48 V DC control coil for precise operation. The LC2D09ED integrates a mechanical interlock and reversing power busbar, ensuring safe and efficient directional motor control. With screw clamp terminals for secure connections and an auxiliary contact composition of 1 NO + 1 NC, it offers versatility for signaling circuits. Its IP20 front face protection and wide operating temperature range (-40 to 60 °C) guarantee dependable performance in harsh conditions. Commonly found in critical infrastructure like water treatment plants, oil and gas facilities, cement factories, and food and beverage processing, this Schneider Electric contactor ensures optimal operational uptime.
Details
- Brand: Schneider Electric
- Part number: LC2D09ED
- Series: TeSys Deca
- Category: Reversing Contactor
Related Schneider Electric parts
- TeSys Deca LC2D09F7 reversing contactor 9 A AC-3 3P with 110 V AC coil
- Schneider Electric LADN13 — Auxiliary Contact Block, TeSys Deca, 1NO + 3NC, Front Mount, Screw Clamp Terminals
- Schneider Electric GV2L04 — TeSys GV2L Motor Circuit Breaker 3P 0.63A Magnetic Rotary Handle Screw Clamp Terminals
- Schneider Electric GV2L05 — TeSys Deca GV2L motor circuit breaker 3P 1A magnetic rotary handle screw clamp
- Schneider Electric GV2L06 — Motor circuit breaker 3P 1.6A magnetic rotary handle screw clamp terminals
- Schneider Electric GV2L07 — TeSys GV2L Motor Circuit Breaker 3P 2.5A Magnetic Rotary Handle
- Schneider Electric GV2L08 — TeSys Deca GV2L motor circuit breaker 3P 4A magnetic rotary handle screw clamp
- Schneider Electric GV2L10 — TeSys Deca Motor Circuit Breaker, 3P, 6.3A, Magnetic, Rotary Handle, Screw Clamp Terminals
- Schneider Electric GV2L14 — TeSys GV2L Motor Circuit Breaker 3P 10A Magnetic Rotary Handle
- TeSys GV2L16 motor circuit breaker 14A 3P magnetic rotary handle
- Schneider Electric GV2L20 — TeSys Deca GV2L motor circuit breaker 3P 18A magnetic rotary handle
- Schneider Electric GV2L22 — TeSys GV2L Motor Circuit Breaker 3P 25A Magnetic Rotary Handle Screw Clamp
Specifications
- Net weight
- 1.017 Kg
- Interlocking type
- Mechanical
- Poles description
- 3P
- Utilisation category
- AC-1, AC-3, AC-3e
- Mechanical durability
- 30 Mcycles
- Connections - terminals
- screw clamp terminals
- IP degree of protection
- IP20 front face conforming to IEC 60529
- Manufacturer part number
- LC2D09ED
- Pole contact composition
- 3 NO
- [Uc] control circuit voltage
- 48 V DC
- Auxiliary contact composition
- 1 NO + 1 NC
- [Ie] rated operational current
- 9 A (at <60 °C) at <= 440 V AC AC-3 for power circuit
- Ambient air temperature for operation
- -40…60 °C
- Motor power kW (at 380-400 V AC 50-60 Hz)
- 4 KW
- [Ue] rated operational voltage (power circuit)
- <= 690 V AC 25...400 Hz
