C63N4

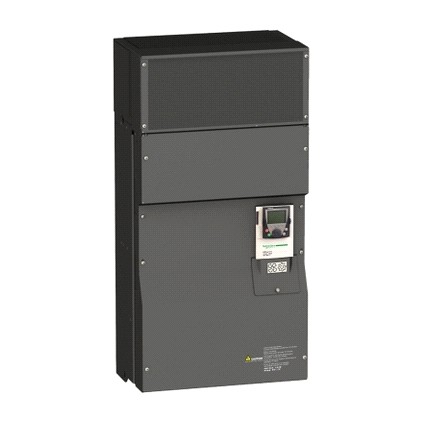

Schneider Electric C63N4 Altivar 61 Variable Speed Drive ATV61HC63N4 for Pumping and Ventilation. This is a 4 poles basic frame for ComPacT NSX630N. ComPacT NSX is designed to optimize space and breaking capacity for all standard and specific applications. This basic frame comes without trip unit, and is compatible with any type of trip unit which has to be ordered separately The breaking capacity Icu is 50kA at 415VAC 50/60Hz. The operational voltage is 690VAC 50/60Hz (limited to 440VAC 50/60Hz if there is an earth-leakage protection). The dimensions are 185mm x 255mm x 110mm. It ensures compliance with international standards (IEC 60947), CCC, EAC and marine specifications. ComPacT NSX630N is part of Schneider Electric EcoStruxure Power architecture.
Details
- Brand: Schneider Electric
- Part number: C63N4
- Series: Altivar 61
- Category: VFD
Related Schneider Electric parts
- Schneider Electric C25N4 — Altivar 61 Variable Speed Drive 400 HP 460 V
- Altivar 61 Variable Speed Drive ATV61HC16N4
- Schneider Electric VW3A7702 — Altivar Braking Resistor
- VW3A5103 motor choke - 90 A - for variable speed drive
- Schneider Electric ATV630U15M3 — Altivar Process ATV630 Variable Speed Drive 1.5kW 200-240V IP21
- Schneider Electric ATV630U22M3 — Altivar Process ATV630 Variable Speed Drive 2.2 kW 200-240V IP21
- Schneider Electric ATV630U40Y6 — Altivar Process ATV630 Variable Speed Drive 4kW 5hp
- Schneider Electric ATV630U07M3 — Variable speed drive, Altivar Process ATV600, ATV630, 0.75kW/1 hp, 200...240 V, IP21/UL type 1
- Schneider Electric ATV630U22Y6 — Variable speed drive Altivar Process ATV600 ATV630, 2.2kW/3 hp, 500-690V, IP00
- Schneider Electric ATV630U30M3 — Altivar Process ATV630 Variable Speed Drive 3kW 200-240V IP21/UL type 1
- Schneider Electric ATV630U30Y6 — Altivar Process ATV630 Variable Speed Drive 3kW
- Altivar Process ATV630U75Y6 Variable Speed Drive, 7.5hp, 500-690V, IP21
Specifications
- Phase
- 3 phases
- Braking torque
- 30 % (without braking resistor), <= 125 % (with braking resistor)
- Motor power (hp)
- 800 hp (380-480 V), 900 hp (380-480 V)
- Motor power (kW)
- 560 kW (380-480 V), 630 kW (380-480 V)
- Output frequency
- 0.1...500 Hz
- Supply frequency
- 50...60 Hz
- Network frequency
- 47.5...63 Hz
- Switching frequency
- 2...8 kHz adjustable
- Prospective line Isc
- 50 kA
- Rated supply voltage
- 380...480 V
- Transient overtorque
- 130 % of nominal motor torque for 60 s
- Supply voltage limits
- 323...528 V
- Manufacturer part number
- C63N4
- Continuous output current
- 1188 A (at 2.5 kHz, 380 V / 460 V)
- Line current (max, 380 V)
- 1091 A (for 630 kW)
- Line current (max, 480 V)
- 964 A (for 630 kW)
- Maximum transient current
- 1425.6 A for 60 s
- Apparent power (max, 380 V)
- 718 kVA (for 630 kW)
- Nominal switching frequency
- 2.5 kHz
