C16N4

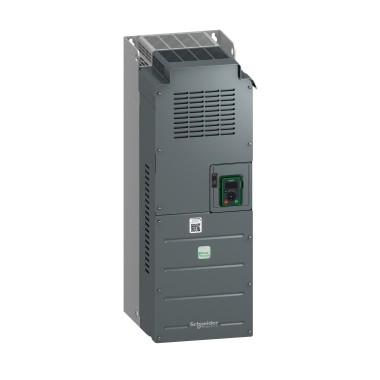

Schneider Electric C16N4 Altivar 61 Variable Speed Drive ATV61HC16N4. This is a 4 poles basic frame for ComPacT NSX160N. ComPacT NSX is designed to optimize space and breaking capacity for all standard and specific applications. This basic frame comes without trip unit, and is compatible with any type of trip unit which has to be ordered separately The breaking capacity Icu is 50kA at 415VAC 50/60Hz. The operational voltage is 690VAC 50/60Hz (limited to 440VAC 50/60Hz if there is an earth-leakage protection). The dimensions are 140mm x 161mm x 86mm. It ensures compliance with international standards (IEC 60947), CCC, EAC and marine specifications. ComPacT NSX160N is part of Schneider Electric EcoStruxure Power architecture.
Details
- Brand: Schneider Electric
- Part number: C16N4
- Series: Altivar 61
- Category: VFD
Related Schneider Electric parts
- Altivar 61 Variable Speed Drive ATV61HC63N4 for Pumping and Ventilation
- Schneider Electric C25N4 — Altivar 61 Variable Speed Drive 400 HP 460 V
- Schneider Electric VW3A7702 — Altivar Braking Resistor
- VW3A5103 motor choke - 90 A - for variable speed drive
- Schneider Electric ATV630U15M3 — Altivar Process ATV630 Variable Speed Drive 1.5kW 200-240V IP21
- Schneider Electric ATV630U22M3 — Altivar Process ATV630 Variable Speed Drive 2.2 kW 200-240V IP21
- Schneider Electric ATV630U40Y6 — Altivar Process ATV630 Variable Speed Drive 4kW 5hp
- Schneider Electric ATV630U07M3 — Variable speed drive, Altivar Process ATV600, ATV630, 0.75kW/1 hp, 200...240 V, IP21/UL type 1
- Schneider Electric ATV630U22Y6 — Variable speed drive Altivar Process ATV600 ATV630, 2.2kW/3 hp, 500-690V, IP00
- Schneider Electric ATV630U30M3 — Altivar Process ATV630 Variable Speed Drive 3kW 200-240V IP21/UL type 1
- Schneider Electric ATV630U30Y6 — Altivar Process ATV630 Variable Speed Drive 3kW
- Altivar Process ATV630U75Y6 Variable Speed Drive, 7.5hp, 500-690V, IP21
Specifications
- Phase
- 3 phases
- EMC filter
- Level 3
- Motor power
- 160 kW
- Speed range
- 1...100 in open-loop mode
- Motor power hp
- 250 hp
- Output frequency
- 0.1...500 Hz
- Supply frequency
- 50...60 Hz
- Switching frequency
- 2...8 kHz adjustable
- Line current (380 V)
- 289 A
- Line current (480 V)
- 275 A
- Prospective line Isc
- 50 kA
- Rated supply voltage
- 380...480 V
- Transient overtorque
- 130 %
- Analogue input number
- 2
- Supply voltage limits
- 323...528 V
- Analogue output number
- 1
- Apparent power (380 V)
- 190.2 kVA
- Discrete output number
- 2
- Manufacturer part number
- C16N4
- Nominal switching frequency
- 2.5 kHz
- Braking torque (with resistor)
- <= 125 %
- Maximum transient current (60 s)
- 376.8 A
- Braking torque (without resistor)
- 30 %
- Continuous output current (380 V, 2.5 kHz)
- 314 A
- Continuous output current (460 V, 2.5 kHz)
- 314 A
