VW3A7702

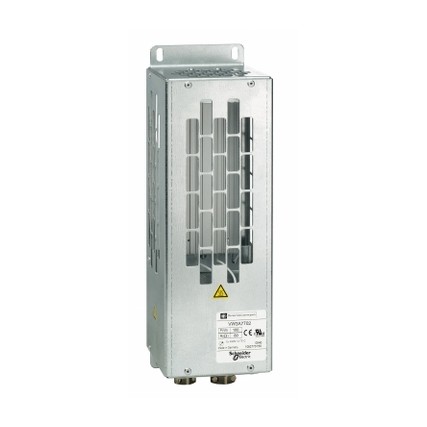

Schneider Electric VW3A7702 Altivar Braking Resistor. This braking resistor is an option for variable speed drives of Altivar range. It dissipates the braking energy, and enables maximum transient braking torque. It has an Ohmic value of 60Ohms at 20°C and its protection index is IP20. It is compatible with Altivar 312, Altivar 31, Altivar 32, Altivar 320, Altivar 61, Altivar 71 and Altivar easy 310. Its protection index is IP20. It weighs 2.4kg. This resistor is designed to be mounted on the outside of the enclosure, but should not inhibit natural cooling, air inlets and outlets must not be obstructed in any way.
Details
- Brand: Schneider Electric
- Part number: VW3A7702
- Series: Altivar
- Category: VFD
Related Schneider Electric parts
- VW3A5103 motor choke - 90 A - for variable speed drive
- Schneider Electric ATV630U15M3 — Altivar Process ATV630 Variable Speed Drive 1.5kW 200-240V IP21
- Schneider Electric ATV630U22M3 — Altivar Process ATV630 Variable Speed Drive 2.2 kW 200-240V IP21
- Schneider Electric ATV630U40Y6 — Altivar Process ATV630 Variable Speed Drive 4kW 5hp
- Schneider Electric ATV630U07M3 — Variable speed drive, Altivar Process ATV600, ATV630, 0.75kW/1 hp, 200...240 V, IP21/UL type 1
- Schneider Electric ATV630U22Y6 — Variable speed drive Altivar Process ATV600 ATV630, 2.2kW/3 hp, 500-690V, IP00
- Schneider Electric ATV630U30M3 — Altivar Process ATV630 Variable Speed Drive 3kW 200-240V IP21/UL type 1
- Schneider Electric ATV630U30Y6 — Altivar Process ATV630 Variable Speed Drive 3kW
- Altivar Process ATV630U75Y6 Variable Speed Drive, 7.5hp, 500-690V, IP21
- ATV630U40M3 Variable Speed Drive 4kW/5HP 200-240V IP21
- ATV630U55M3 variable speed drive ATV630 - 5.5kW/7.5HP - 200...240V - IP21/UL type 1
- Schneider Electric ATV630D15M3 — Altivar Process ATV630 Variable Speed Drive 15kW/20HP 200-240V IP21
Specifications
- Ohmic value
- 60 Ohm
- Product weight
- 2.4 kg
- Contact resistance
- 60 µOhm
- IP degree of protection
- IP20
- Manufacturer part number
- VW3A7702
- Rated operational current (AC)
- 1 A
- Rated operational current (DC)
- 0.1 A
- Rated operational voltage (AC)
- 250 V
- Rated operational voltage (DC)
- 24 V
- Temperature control switch setting
- 120 °C
- Ambient air temperature for storage
- -25…70 °C
- Average power available (at 40 °C)
- 115 W
- Average power available (at 50 °C)
- 100 W
- Ambient air temperature for operation
- 0…50 °C
