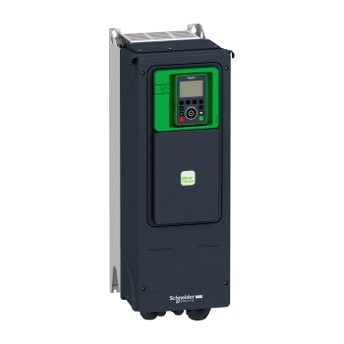

ATV950D11N4
Schneider Electric ATV950D11N4 Altivar Process ATV950 Variable Speed Drive 11kW 400/480V with Braking Unit IP55. This Altivar Process ATV900 variable speed drive can feed 3-phase synchronous and asynchronous power motors. It is suitable for motors with power rating up to 11kW/15HP for applications requiring slight overload (up to 120%). It is suitable for motors with power rating up to 7.5kW/10HP for applications requiring significant overload (up to 150%). It works at a rated supply voltage from 380Vac to 480Vac. This variable speed / frequency drive (VSD / VFD) is specifically designed for industrial processes. In the following market segments, oil and gas, mining, minerals and metals, food and beverage water and wastewater. It offers high motor performance on any motor and total control of any kind of coupling in master/slave applications. Network services help ensure operation continuity even in case of connection breakdown. Web server and data logging help reduce downtime through fast troubleshooting and preventive maintenance. Its advanced connectivity, including EtherNet/IP and Modbus TCP, allows deep integration into automation architectures.
Details
- Brand: Schneider Electric
- Part number: ATV950D11N4
- Series: Altivar Process ATV900
- Category: Variable Frequency Drive
Related Schneider Electric parts
- Schneider Electric ATV950D15N4E — Altivar Process ATV950 Variable Speed Drive 15kW 400/480V with Braking Unit/Switch IP55
- Schneider Electric ATV950D15N4U — Altivar Process ATV950 Variable Speed Drive 15kW 380-480V IP55
- Schneider Electric ATV950D15N4 — Altivar Process ATV950 Variable Speed Drive 15kW 400/480V with Braking Unit
- Schneider Electric ATV950D18N4 — Altivar Process ATV950 Variable Speed Drive 18.5kW 400/480V IP55 with Braking Unit
- Schneider Electric ATV950D18N4EU — Variable speed drive, Altivar Process ATV900, ATV950, 18.5kW/25 hp -380/480 V, IP55/UL type12, disc.switch
- Schneider Electric ATV950D18N4E — Altivar Process ATV950 Variable Speed Drive 18.5 kW 400/480V with Braking Unit/Switch IP55
- Altivar Process ATV900 Variable Speed Drive ATV950D30N4, 30kW, 400/480V, IP55 with Braking Unit
- Altivar Process ATV900 Variable Speed Drive ATV950D22N4
- Schneider Electric ATV950D22N4E — Altivar Process ATV950 Variable Speed Drive 22 kW 400/480 V with Braking Unit and Switch, IP55
- Schneider Electric ATV950D22N4EU — Variable speed drive, Altivar Process ATV900, ATV950, 22kW/30 hp, 380/480 V, IP55/UL type12, disc.switch
- Schneider Electric Altivar Process ATV950D37N4 Variable Speed Drive 37kW 400/480V IP55
- Schneider Electric ATV950D37N4E — Altivar Process ATV950 Variable Speed Drive, 37kW 400/480V with Braking Unit & Load Break Switch
Request a quote for ATV950D11N4
Specifications
- Depth
- 299 mm
- Width
- 264 mm
- Height
- 678 mm
- Product weight
- 13.7 kg
- Safety function
- STO (safe torque off) SIL 3
- Type of cooling
- Forced convection
- Supply frequency
- 50...60 Hz
- Switching frequency
- 2...16 kHz adjustable
- Prospective line Isc
- 50 kA
- Rated supply voltage
- 380...480 V
- IP degree of protection
- IP55
- Manufacturer part number
- ATV950D11N4
- Network number of phases
- 3 phases
- Line current (heavy duty)
- 14.1 A at 380 V / 12.5 A at 480 V
- Line current (normal duty)
- 19.8 A at 380 V / 17 A at 480 V
- Apparent power (heavy duty)
- 10.4 kVA at 480 V
- Communication port protocol
- Ethernet/IP, Modbus serial, Modbus TCP
- Motor power hp (heavy duty)
- 10 hp
- Motor power kW (heavy duty)
- 7.5 kW
- Nominal switching frequency
- 4 kHz
- Apparent power (normal duty)
- 14.1 kVA at 480 V
- Motor power hp (normal duty)
- 15 hp
- Motor power kW (normal duty)
- 11 kW
- Speed drive output frequency
- 0.1...599 Hz
- Continuous output current (heavy duty)
- 16.5 A at 4 kHz
- Maximum transient current (heavy duty)
- 24.8 A during 60 s
- Continuous output current (normal duty)
- 23.5 A at 4 kHz
- Maximum transient current (normal duty)
- 28.2 A during 60 s
