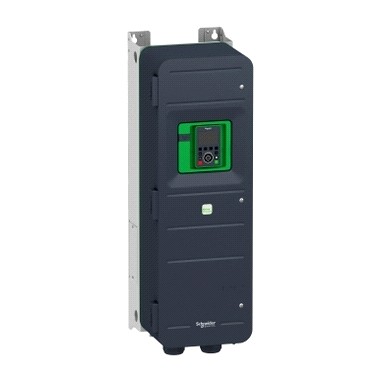

ATV950D37N4
Schneider Electric ATV950D37N4 Altivar Process Variable Speed Drive 37kW 400/480V IP55. This Altivar Process ATV900 variable speed drive can feed 3-phase synchronous and asynchronous power motors. It is suitable for motors with power rating up to 37kW/50HP for applications requiring slight overload (up to 120%). It is suitable for motors with power rating up to 30kW/40HP for applications requiring significant overload (up to 150%). It works at a rated supply voltage from 380Vac to 480Vac. This variable speed / frequency drive (VSD / VFD) is specifically designed for industrial processes. In the following market segments: oil and gas, mining, minerals and metals, food and beverage water and wastewater. It offers high motor performance on any motor and total control of any kind of coupling in master/slave applications. Network services help ensure operation continuity even in case of connection breakdown. Web server and data logging help reduce downtime through fast troubleshooting and preventive maintenance. Its advanced connectivity, including EtherNet/IP and Modbus TCP, allows deep integration into automation architectures.
Details
- Brand: Schneider Electric
- Part number: ATV950D37N4
- Series: Altivar Process ATV900
- Category: Variable Frequency Drive
Related Schneider Electric parts
- Schneider Electric ATV950D37N4E — Altivar Process ATV950 Variable Speed Drive, 37kW 400/480V with Braking Unit & Load Break Switch
- Schneider Electric ATV950D37N4EU — Altivar Process ATV950 Variable Speed Drive 37kW 380/480V IP55
- Altivar Process ATV900 Variable Speed Drive ATV950D55N4 55kW
- Schneider Electric ATV950D45N4 — Altivar Process ATV950 Variable Speed Drive 45 kW with Braking Unit
- Altivar Process ATV900 Variable Speed Drive ATV950D45N4E 45kW 400/480V IP55 with Braking Unit/Switch
- Schneider Electric ATV950D30N4E — Altivar Process ATV950 Variable Speed Drive - 30kW, 400/480V, with braking unit/switch, IP55
- Schneider Electric ATV950D75N4 — Altivar Process ATV950 Variable Speed Drive 75kW
- Schneider Electric ATV950D55N4E — Altivar Process ATV950 Variable Speed Drive, 55kW, 400/480V, with Braking Unit/Load Break Switch, IP55
- Schneider Electric ATV950D55N4U — Altivar Process ATV950 Variable Speed Drive 55 kW
- Schneider Electric ATV950D75N4E — Variable Speed Drive ATV950 75kW 400/480V with braking unit/switch
- Schneider Electric ATV950D55N4EU — Altivar Process ATV950 Variable Speed Drive 55kW IP55 with disconnect switch
- Schneider Electric ATV950D90N4 — Altivar Process ATV900 Variable Speed Drive ATV950 90kW 400-480V with Braking Unit IP55
Request a quote for ATV950D37N4
Specifications
- Depth
- 340 mm
- Width
- 290 mm
- Height
- 910 mm
- Weight
- 50 kg
- IP rating
- IP55
- Network phases
- 3
- Safety function
- STO (safe torque off) SIL 3
- Type of cooling
- Forced convection
- Supply frequency
- 50-60 Hz
- Switching frequency
- 2-16 kHz adjustable
- Prospective line Isc
- 50 kA
- Rated supply voltage
- 380-480 V
- Manufacturer part number
- ATV950D37N4
- Motor power (heavy duty)
- 30 kW
- Motor power (normal duty)
- 37 kW
- Nominal switching frequency
- 4 kHz
- Continuous output current (heavy duty)
- 61.5 A at 4 kHz
- Continuous output current (normal duty)
- 74.5 A at 4 kHz
