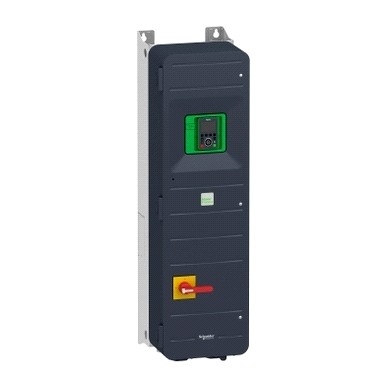

ATV950D55N4E
Schneider Electric ATV950D55N4E Altivar Process ATV950 Variable Speed Drive, 55kW, 400/480V, with Braking Unit/Load Break Switch, IP55. This Altivar Process ATV900 variable speed drive can feed 3-phase synchronous and asynchronous power motors. It is suitable for motors with power rating up to 55kW/75HP for applications requiring slight overload (up to 120%). It is suitable for motors with power rating up to 45kW/60HP for applications requiring significant overload (up to 150%). It works at a rated supply voltage from 380Vac to 480Vac. This variable speed / frequency drive (VSD / VFD) is specifically designed for industrial processes. In the following market segments: oil and gas, mining, minerals and metals, food and beverage water and wastewater. It offers high motor performance on any motor and total control of any kind of coupling in master/slave applications. Network services help ensure operation continuity even in case of connection breakdown. Web server and data logging help reduce downtime through fast troubleshooting and preventive maintenance. Its advanced connectivity, including EtherNet/IP and Modbus TCP, allows deep integration into automation architectures.
Details
- Brand: Schneider Electric
- Part number: ATV950D55N4E
- Series: Altivar Process ATV900
- Category: Variable Frequency Drive
Related Schneider Electric parts
- Schneider Electric ATV950D55N4U — Altivar Process ATV950 Variable Speed Drive 55 kW
- Schneider Electric ATV950D75N4E — Variable Speed Drive ATV950 75kW 400/480V with braking unit/switch
- Schneider Electric ATV950D55N4EU — Altivar Process ATV950 Variable Speed Drive 55kW IP55 with disconnect switch
- Schneider Electric ATV950D90N4 — Altivar Process ATV900 Variable Speed Drive ATV950 90kW 400-480V with Braking Unit IP55
- Schneider Electric ATV950D90N4E — variable speed drive ATV950, 90kW, 400/480V, with braking unit/switch, IP55
- Schneider Electric ATV9A0C13R4 — ATV930C16N4C variable speed drive, Altivar Process ATV900, ATV930, 160kW, 400 to 480V, without braking unit, IP00
- Schneider Electric ATV9A0M10Q6 — Altivar Process ATV900 Variable Speed Drive, Single 690V, 1000 kW
- Schneider Electric ATV930C13N4 — variable speed drive, Altivar Process ATV900, ATV930, 132kW, 380 to 480V, with braking unit, IP20
- Schneider Electric ATV930C16N4 — variable speed drive, Altivar Process ATV900, ATV930, 160kW, 380 to 480V, with braking unit, IP20
- Schneider Electric ATV930C20N4F — variable speed drive, Altivar Process ATV900, floor standing ATV930, 200kW, 400 to 440V, without braking unit, IP21
- Schneider Electric ATV930C22N4 — Variable speed drive, Altivar Process ATV900, ATV930, 220 kW, 400/480 V, with braking unit, IP00
- Schneider Electric ATV930C25N4F — variable speed drive, Altivar Process ATV900, floor standing ATV930, 250kW, 400 to 440V, without braking unit, IP21
Request a quote for ATV950D55N4E
Specifications
- Weight
- 89.3 kg
- EMC filter
- Integrated C3
- Number of phases
- 3 phases
- Output frequency
- 0.1...599 Hz
- Dimensions (WxHxD)
- 345 x 1250 x 436 mm
- Rated supply voltage
- 380...480 V
- IP degree of protection
- IP55
- Manufacturer part number
- ATV950D55N4E
- Motor power (Heavy Duty)
- 45 kW
- Motor power (Normal Duty)
- 55 kW
- Nominal switching frequency
- 2.5 kHz
- Continuous output current (Heavy Duty)
- 88 A at 2.5 kHz
- Continuous output current (Normal Duty)
- 106 A at 2.5 kHz
