ATV9A0M10Q6

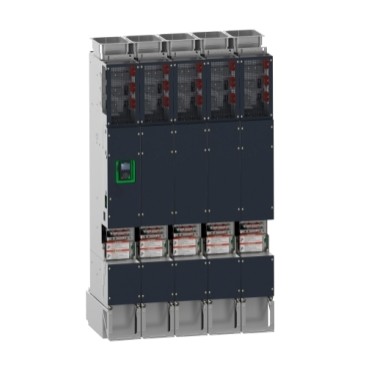

Schneider Electric ATV9A0M10Q6 Altivar Process ATV900 Variable Speed Drive, Single 690V, 1000 kW. Motor power (heavy duty): 800 kW at 690 V; Motor power (normal duty): 1000 kW at 690 V; Rated supply voltage: 690 V.
Details
- Brand: Schneider Electric
- Part number: ATV9A0M10Q6
- Series: Altivar Process ATV900
- Category: Variable Frequency Drive
Related Schneider Electric parts
- Schneider Electric ATV930C13N4 — variable speed drive, Altivar Process ATV900, ATV930, 132kW, 380 to 480V, with braking unit, IP20
- Schneider Electric ATV930C16N4 — variable speed drive, Altivar Process ATV900, ATV930, 160kW, 380 to 480V, with braking unit, IP20
- Schneider Electric ATV930C20N4F — variable speed drive, Altivar Process ATV900, floor standing ATV930, 200kW, 400 to 440V, without braking unit, IP21
- Schneider Electric ATV930C22N4 — Variable speed drive, Altivar Process ATV900, ATV930, 220 kW, 400/480 V, with braking unit, IP00
- Schneider Electric ATV930C25N4F — variable speed drive, Altivar Process ATV900, floor standing ATV930, 250kW, 400 to 440V, without braking unit, IP21
- Schneider Electric ATV930D11N4Z — variable speed drive, Altivar Process ATV900, ATV930, 11kW, 380 to 480V, cabinet Integration, IP20
- Schneider Electric ATV930D15N4Z — variable speed drive, Altivar Process ATV900, ATV930, 15kW, 380 to 480V, cabinet Integration, IP20
- Schneider Electric ATV930D22N4Z — variable speed drive, Altivar Process ATV900, ATV930, 22kW, 380 to 480V, cabinet Integration, IP20
- Schneider Electric ATV930D37N4Z — variable speed drive, Altivar Process ATV900, ATV930, 37kW, 380 to 480V, cabinet Integration, IP20
- Schneider Electric ATV930U30N4Z — variable speed drive, Altivar Process ATV900, ATV930, 3kW, 380 to 480V, cabinet Integration, IP20
- Schneider Electric ATV930U75N4Z — variable speed drive, Altivar Process ATV900, ATV930, 7.5kW, 380 to 480V, cabinet Integration, IP20
- Schneider Electric ATV9A0C16Q6 — Variable speed drive, Altivar Process ATV900, APM, single 690 V, 160 kW
Request a quote for ATV9A0M10Q6
Specifications
- Safety function
- STO (SIL 3)
- Type of cooling
- Forced convection
- Output frequency
- 0.1-599 Hz
- Degree of protection
- IP00
- Rated supply voltage
- 690 V
- Communication protocols
- EtherNet/IP, Modbus serial, Modbus TCP
- Manufacturer part number
- ATV9A0M10Q6
- Motor power (heavy duty)
- 800 kW at 690 V
- Network number of phases
- 3 phases
- Line current (heavy duty)
- 779 A at 690 V
- Motor power (normal duty)
- 1000 kW at 690 V
- Line current (normal duty)
- 969 A at 690 V
- Nominal switching frequency
- 2.5 kHz
- Continuous output current (heavy duty)
- 830 A at 2.5 kHz
- Continuous output current (normal duty)
- 1030 A at 2.5 kHz
