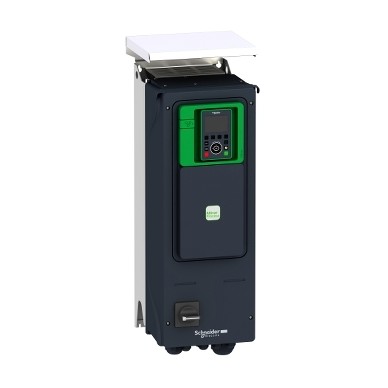

ATV950D22N4EU
Schneider Electric ATV950D22N4EU Variable speed drive, Altivar Process ATV900, ATV950, 22kW/30 hp, 380/480 V, IP55/UL type12, disc.switch. Motor power (heavy duty): 18.5 kW; Motor power (normal duty): 22.0 KW; Rated supply voltage: 380...480 V.
Details
- Brand: Schneider Electric
- Part number: ATV950D22N4EU
- Series: Altivar Process ATV900
- Category: Variable Frequency Drive
Related Schneider Electric parts
- Schneider Electric Altivar Process ATV950D37N4 Variable Speed Drive 37kW 400/480V IP55
- Schneider Electric ATV950D37N4E — Altivar Process ATV950 Variable Speed Drive, 37kW 400/480V with Braking Unit & Load Break Switch
- Schneider Electric ATV950D37N4EU — Altivar Process ATV950 Variable Speed Drive 37kW 380/480V IP55
- Altivar Process ATV900 Variable Speed Drive ATV950D55N4 55kW
- Schneider Electric ATV950D45N4 — Altivar Process ATV950 Variable Speed Drive 45 kW with Braking Unit
- Altivar Process ATV900 Variable Speed Drive ATV950D45N4E 45kW 400/480V IP55 with Braking Unit/Switch
- Schneider Electric ATV950D30N4E — Altivar Process ATV950 Variable Speed Drive - 30kW, 400/480V, with braking unit/switch, IP55
- Schneider Electric ATV950D75N4 — Altivar Process ATV950 Variable Speed Drive 75kW
- Schneider Electric ATV950D55N4E — Altivar Process ATV950 Variable Speed Drive, 55kW, 400/480V, with Braking Unit/Load Break Switch, IP55
- Schneider Electric ATV950D55N4U — Altivar Process ATV950 Variable Speed Drive 55 kW
- Schneider Electric ATV950D75N4E — Variable Speed Drive ATV950 75kW 400/480V with braking unit/switch
- Schneider Electric ATV950D55N4EU — Altivar Process ATV950 Variable Speed Drive 55kW IP55 with disconnect switch
Request a quote for ATV950D22N4EU
Specifications
- EMC filter
- Integrated
- Rated supply voltage
- 380...480 V
- IP degree of protection
- IP55
- Manufacturer part number
- ATV950D22N4EU
- Maximum output frequency
- 599 Hz
- Motor power (heavy duty)
- 18.5 kW
- Line current (heavy duty)
- 34.1 A at 380 V
- Motor power (normal duty)
- 22.0 KW
- Line current (normal duty)
- 39.6 A at 380 V
- Apparent power (heavy duty)
- 24.9 kVA at 480 V
- Nominal switching frequency
- 4 kHz
- Apparent power (normal duty)
- 28.6 KVA at 480 V
- Degree of protection UL type
- 12
- Continuous output current (heavy duty)
- 39.2 A at 4 kHz
- Maximum transient current (heavy duty)
- 58.8 A during 60 s
- Continuous output current (normal duty)
- 46.3 A at 4 kHz
- Maximum transient current (normal duty)
- 55.6 A during 60 s
