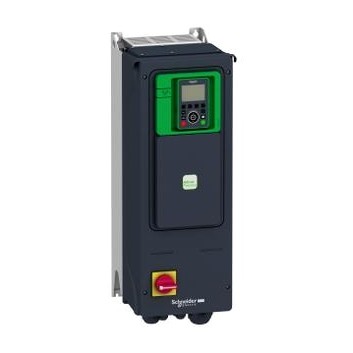

ATV950D18N4E
Schneider Electric ATV950D18N4E Altivar Process ATV950 Variable Speed Drive 18.5 kW 400/480V with Braking Unit/Switch IP55. This Altivar Process ATV900 variable speed drive can feed 3-phase synchronous and asynchronous power motors. It is suitable for motors with power rating up to 18.5kW/25HP for applications requiring slight overload (up to 120%). It is suitable for motors with power rating up to 15kW/20HP for applications requiring significant overload (up to 150%). It works at a rated supply voltage from 380Vac to 480Vac. This variable speed / frequency drive (VSD / VFD) is specifically designed for industrial processes. In the following market segments, oil and gas, mining, minerals and metals, food and beverage water and wastewater. It offers high motor performance on any motor and total control of any kind of coupling in master/slave applications. Network services help ensure operation continuity even in case of connection breakdown. Web server and data logging help reduce downtime through fast troubleshooting and preventive maintenance. Its advanced connectivity, including EtherNet/IP and Modbus TCP, allows deep integration into automation architectures.
Details
- Brand: Schneider Electric
- Part number: ATV950D18N4E
- Series: Altivar Process ATV900
- Category: Variable Frequency Drive
Related Schneider Electric parts
- Altivar Process ATV900 Variable Speed Drive ATV950D30N4, 30kW, 400/480V, IP55 with Braking Unit
- Altivar Process ATV900 Variable Speed Drive ATV950D22N4
- Schneider Electric ATV950D22N4E — Altivar Process ATV950 Variable Speed Drive 22 kW 400/480 V with Braking Unit and Switch, IP55
- Schneider Electric ATV950D22N4EU — Variable speed drive, Altivar Process ATV900, ATV950, 22kW/30 hp, 380/480 V, IP55/UL type12, disc.switch
- Schneider Electric Altivar Process ATV950D37N4 Variable Speed Drive 37kW 400/480V IP55
- Schneider Electric ATV950D37N4E — Altivar Process ATV950 Variable Speed Drive, 37kW 400/480V with Braking Unit & Load Break Switch
- Schneider Electric ATV950D37N4EU — Altivar Process ATV950 Variable Speed Drive 37kW 380/480V IP55
- Altivar Process ATV900 Variable Speed Drive ATV950D55N4 55kW
- Schneider Electric ATV950D45N4 — Altivar Process ATV950 Variable Speed Drive 45 kW with Braking Unit
- Altivar Process ATV900 Variable Speed Drive ATV950D45N4E 45kW 400/480V IP55 with Braking Unit/Switch
- Schneider Electric ATV950D30N4E — Altivar Process ATV950 Variable Speed Drive - 30kW, 400/480V, with braking unit/switch, IP55
- Schneider Electric ATV950D75N4 — Altivar Process ATV950 Variable Speed Drive 75kW
Request a quote for ATV950D18N4E
Specifications
- IP protection
- IP55
- Number of phases
- 3
- Network frequency
- 50...60 Hz
- Relay output number
- 3
- Prospective line Isc
- 50 kA
- Rated supply voltage
- 380...480 V
- Analogue input number
- 3
- Discrete input number
- 10
- Analogue output number
- 2
- Discrete output number
- 2
- Communication protocols
- EtherNet/IP, Modbus serial, Modbus TCP
- Manufacturer part number
- ATV950D18N4E
- Maximum output frequency
- 599 Hz
- Motor power (heavy duty)
- 15.0 kW
- Motor power (normal duty)
- 18.5 kW
- Nominal switching frequency
- 4 kHz
- Continuous output current (heavy duty)
- 31.7 A
- Continuous output current (normal duty)
- 39.2 A
