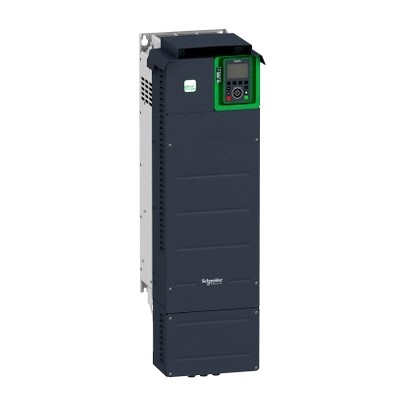

ATV930D90N4
Schneider Electric ATV930D90N4 variable speed drive - ATV930 - 90kW - 400/480V - with braking unit - IP21. This Altivar Process ATV900 variable speed drive can feed 3-phase synchronous and asynchronous power motors. It is suitable for motors with power rating up to 90kW/125hp for applications requiring slight overload (up to 120%). It is suitable for motors with power rating up to 75kW/100hp for applications requiring significant overload (up to 150%). It works at a rated supply voltage from 380V to 480V AC. This variable speed / frequency drive (VSD / VFD) is specifically designed for industrial processes. In the following market segments, oil and gas, mining, minerals and metals, food and beverage water and wastewater. It offers high motor performance on any motor and total control of any kind of coupling in master/slave applications. Network services help ensure operation continuity even in case of connection breakdown. Web server and data logging help reduce downtime through fast troubleshooting and preventive maintenance. Its advanced connectivity, including EtherNet/IP and Modbus TCP, allows deep integration into automation architectures. It is designed to be mounted in vertical position (+/- 10 °) on a wall.
Details
- Brand: Schneider Electric
- Part number: ATV930D90N4
- Series: Altivar Process ATV900
- Category: VFD
Related Schneider Electric parts
- Schneider Electric ATV930D11Y6 — Altivar Process ATV930 Variable Speed Drive 11kW 500-690V IP00
- Schneider Electric ATV930U40Y6 — Altivar Process ATV900 ATV930 Variable Speed Drive 4kW
- Schneider Electric ATV930D18Y6 — Altivar Process ATV930 Variable Speed Drive 18.5kW
- Schneider Electric ATV930U30Y6 — Altivar Process ATV930 Variable Speed Drive 3 kW 500V/690V
- Schneider Electric ATV930U55Y6 — Altivar Process ATV930 Variable Speed Drive 5.5kW/7.5hp 500V/690V IP00
- Altivar Process ATV900 Variable Speed Drive ATV930U75Y6 7.5kW/10 hp
- Schneider Electric ATV930D55Y6 — Altivar Process ATV900 Variable Speed Drive ATV930 55kW
- Schneider Electric ATV930D75Y6 — Altivar Process ATV900 Variable Speed Drive ATV930 75kW / 100 hp
- Variable speed drive ATV930D90Y6
- Schneider Electric ATV930D30Y6 — Altivar Process ATV930 Variable Speed Drive 30kW
- Schneider Electric ATV930D22Y6 — Altivar Process ATV900 ATV930 Variable Speed Drive 22kW/30hp
- Schneider Electric ATV930D15Y6 — Altivar Process ATV930 Variable Speed Drive 15kW
Request a quote for ATV930D90N4
Specifications
- Depth
- 325.5 mm
- Width
- 290 mm
- Height
- 922 mm
- Weight
- 59.5 kg
- Network phases
- 3 phases
- Safety function
- STO (safe torque off) SIL 3
- Output frequency
- 0.1-599 Hz
- Supply frequency
- 50-60 Hz
- Analog input number
- 3
- Switching frequency
- 2.5-8 kHz
- Discrete input logic
- 16 preset speeds
- Prospective line Isc
- 50 kA
- Rated supply voltage
- 380-480 V
- IP degree of protection
- IP21
- Manufacturer part number
- ATV930D90N4
- Motor power (heavy duty)
- 100 hp
- Motor power (normal duty)
- 125 hp
- Apparent power (heavy duty)
- 98.2 kVA
- Nominal switching frequency
- 2.5 kHz
- Apparent power (normal duty)
- 112.9 kVA
- Line current (heavy duty, 380V)
- 134.3 A
- Line current (heavy duty, 480V)
- 118.1 A
- Line current (normal duty, 380V)
- 156.2 A
- Line current (normal duty, 480V)
- 135.8 A
- Continuous output current (heavy duty)
- 145 A at 2.5 kHz
- Maximum transient current (heavy duty)
- 217.5 A during 60 s
- Continuous output current (normal duty)
- 173 A at 2.5 kHz
- Maximum transient current (normal duty)
- 207.6 A during 60 s
