ATV930D90Y6

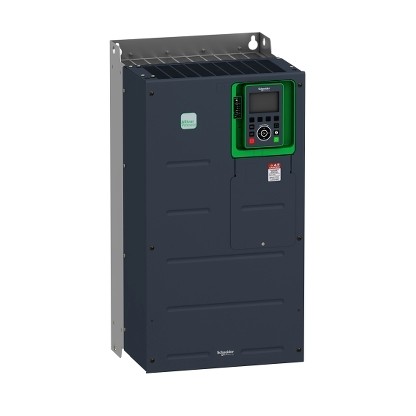

Schneider Electric ATV930D90Y6 Variable speed drive. This Altivar Process ATV900 variable speed drive can feed 3-phase synchronous and asynchronous power motors. It is suitable for motors with power rating up to 90kW/125HP for applications requiring slight overload (up to 120%).
Details
- Brand: Schneider Electric
- Part number: ATV930D90Y6
- Series: Altivar Process ATV900
- Category: Variable Frequency Drive
Related Schneider Electric parts
- Schneider Electric ATV930D30Y6 — Altivar Process ATV930 Variable Speed Drive 30kW
- Schneider Electric ATV930D22Y6 — Altivar Process ATV900 ATV930 Variable Speed Drive 22kW/30hp
- Schneider Electric ATV930D15Y6 — Altivar Process ATV930 Variable Speed Drive 15kW
- Schneider Electric ATV930D37Y6 — Altivar Process ATV930 Variable Speed Drive 37kW / 50 hp
- Schneider Electric ATV930U55S6X — Altivar Process ATV930 Frequenzumrichter 7.5 HP 600V IP21
- Schneider Electric ATV930D45Y6 — Altivar Process ATV930 Variable Speed Drive
- Schneider Electric ATV930U22S6X — Altivar Process ATV930 3hp 600V IP21 Variable Speed Drive
- Schneider Electric ATV930D15S6X — Altivar Process ATV930 Variable Speed Drive 20hp 600V IP21
- Schneider Electric ATV930D18S6 — Altivar Process ATV930 Variable Speed Drive 25hp 600V IP20
- Schneider Electric ATV950U07N4 — Altivar Process ATV950 Variable Speed Drive 0.75kW 380-480V IP55
- Schneider Electric ATV930D75S6 — Altivar Process ATV930 Variable Speed Drive 100hp 600V IP20
- Altivar Process ATV900 Variable Speed Drive ATV950U07N4E 0.75kW 400/480V IP55 with braking unit/switch
Request a quote for ATV930D90Y6
Specifications
- Phases
- 3
- Analog Inputs
- 3
- Mounting Mode
- Wall mount
- Relay Outputs
- 3
- Analog Outputs
- 2
- Discrete Inputs
- 10
- Network Frequency
- 50...60 Hz
- Physical Interface
- Ethernet, 2-wire RS 485
- UL Type Protection
- 1
- Prospective Line Isc
- 70 kA
- Rated Supply Voltage
- 500...690 V
- Min Switching Current
- 5 mA at 24 V DC
- Communication Protocols
- Modbus serial, EtherNet/IP, Modbus TCP
- IP Degree Of Protection
- IP21
- Manufacturer part number
- ATV930D90Y6
- Maximum Output Frequency
- 599 Hz
- Motor Power (heavy duty)
- 55.0 kW
- RS 485 Transmission Rate
- 4.8 kbps, 9600 bit/s, 19200 bit/s
- Motor Power (normal duty)
- 75.0 kW
- Ethernet Transmission Rate
- 10, 100 Mbits
- Nominal Switching Frequency
- 2.5 kHz
- Max Switching Current (R1 inductive)
- 2 A at 250 V AC / 30 V DC
- Max Switching Current (R1 resistive)
- 3 A at 250 V AC / 30 V DC
- Continuous Output Current (heavy duty)
- 83 A at 2.5 kHz
- Continuous Output Current (normal duty)
- 108 A at 2.5 kHz
- Max Switching Current (R2, R3 inductive)
- 2 A at 250 V AC / 30 V DC
- Max Switching Current (R2, R3 resistive)
- 5 A at 250 V AC / 30 V DC
