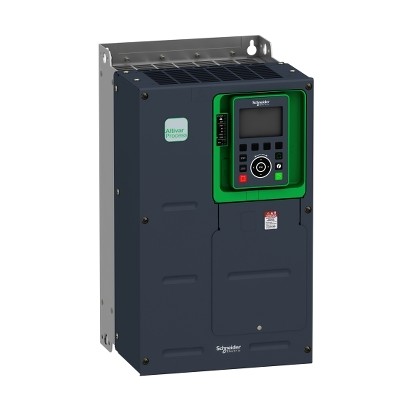

ATV930U40Y6
Schneider Electric ATV930U40Y6 Altivar Process ATV900 ATV930 Variable Speed Drive 4kW. Motor Power (Heavy Duty): 2.2 kW; Motor Power (Normal Duty): 3.0 kW; Rated Supply Voltage: 500...690 V.
Details
- Brand: Schneider Electric
- Part number: ATV930U40Y6
- Series: Altivar Process ATV900
- Category: Variable Frequency Drive
Related Schneider Electric parts
- Schneider Electric ATV930D18Y6 — Altivar Process ATV930 Variable Speed Drive 18.5kW
- Schneider Electric ATV930U30Y6 — Altivar Process ATV930 Variable Speed Drive 3 kW 500V/690V
- Schneider Electric ATV930U55Y6 — Altivar Process ATV930 Variable Speed Drive 5.5kW/7.5hp 500V/690V IP00
- Altivar Process ATV900 Variable Speed Drive ATV930U75Y6 7.5kW/10 hp
- Schneider Electric ATV930D55Y6 — Altivar Process ATV900 Variable Speed Drive ATV930 55kW
- Schneider Electric ATV930D75Y6 — Altivar Process ATV900 Variable Speed Drive ATV930 75kW / 100 hp
- Variable speed drive ATV930D90Y6
- Schneider Electric ATV930D30Y6 — Altivar Process ATV930 Variable Speed Drive 30kW
- Schneider Electric ATV930D22Y6 — Altivar Process ATV900 ATV930 Variable Speed Drive 22kW/30hp
- Schneider Electric ATV930D15Y6 — Altivar Process ATV930 Variable Speed Drive 15kW
- Schneider Electric ATV930D37Y6 — Altivar Process ATV930 Variable Speed Drive 37kW / 50 hp
- Schneider Electric ATV930U55S6X — Altivar Process ATV930 Frequenzumrichter 7.5 HP 600V IP21
Request a quote for ATV930U40Y6
Specifications
- Relay Outputs
- 3
- Analogue Inputs
- 3
- Discrete Inputs
- 10
- Analogue Outputs
- 2
- Discrete Outputs
- 2
- Network Frequency
- 50...60 Hz
- Prospective Line Isc
- 70 kA
- Rated Supply Voltage
- 500...690 V
- IP Degree Of Protection
- IP21 (UL Type 1)
- Manufacturer part number
- ATV930U40Y6
- Maximum Output Frequency
- 599 Hz
- Motor Power (Heavy Duty)
- 2.2 kW
- Network Number Of Phases
- 3 phases
- Motor Power (Normal Duty)
- 3.0 kW
- Apparent Power (Heavy Duty)
- 5.7 kVA at 690 V
- Nominal Switching Frequency
- 4 kHz
- Apparent Power (Normal Duty)
- 7.3 kVA at 690 V
- Continuous Output Current (Heavy Duty)
- 4.2 A at 4 kHz
- Maximum Transient Current (Heavy Duty)
- 6.3 A during 60 s
- Continuous Output Current (Normal Duty)
- 5.4 A at 4 kHz
- Maximum Transient Current (Normal Duty)
- 6.48 A during 60 s
