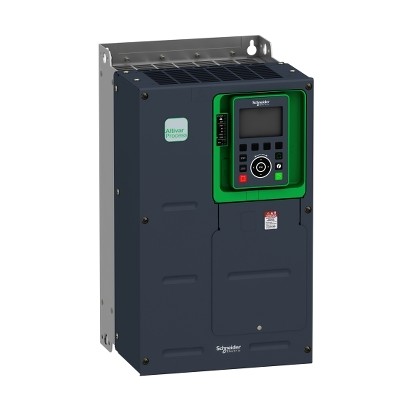

ATV930D11Y6
Schneider Electric ATV930D11Y6 Altivar Process ATV930 Variable Speed Drive 11kW 500-690V IP00. This Altivar Process ATV900 variable speed drive can feed 3-phase synchronous and asynchronous power motors. It is suitable for motors with power rating up to 11kW/15HP for applications requiring slight overload (up to 120%).
Details
- Brand: Schneider Electric
- Part number: ATV930D11Y6
- Series: Altivar Process ATV900
- Category: Variable Frequency Drive
Related Schneider Electric parts
- Schneider Electric ATV930U40Y6 — Altivar Process ATV900 ATV930 Variable Speed Drive 4kW
- Schneider Electric ATV930D18Y6 — Altivar Process ATV930 Variable Speed Drive 18.5kW
- Schneider Electric ATV930U30Y6 — Altivar Process ATV930 Variable Speed Drive 3 kW 500V/690V
- Schneider Electric ATV930U55Y6 — Altivar Process ATV930 Variable Speed Drive 5.5kW/7.5hp 500V/690V IP00
- Altivar Process ATV900 Variable Speed Drive ATV930U75Y6 7.5kW/10 hp
- Schneider Electric ATV930D55Y6 — Altivar Process ATV900 Variable Speed Drive ATV930 55kW
- Schneider Electric ATV930D75Y6 — Altivar Process ATV900 Variable Speed Drive ATV930 75kW / 100 hp
- Variable speed drive ATV930D90Y6
- Schneider Electric ATV930D30Y6 — Altivar Process ATV930 Variable Speed Drive 30kW
- Schneider Electric ATV930D22Y6 — Altivar Process ATV900 ATV930 Variable Speed Drive 22kW/30hp
- Schneider Electric ATV930D15Y6 — Altivar Process ATV930 Variable Speed Drive 15kW
- Schneider Electric ATV930D37Y6 — Altivar Process ATV930 Variable Speed Drive 37kW / 50 hp
Request a quote for ATV930D11Y6
Specifications
- Motor Power
- 11 kW / 15 hp
- Network Phases
- 3 phases
- Network Frequency
- 50...60 Hz
- Relay Output Number
- 3
- Degree of Protection
- IP00
- Prospective Line Isc
- 70 kA
- Rated Supply Voltage
- 500...690 V
- Analogue Input Number
- 3
- Discrete Input Number
- 10
- Analogue Output Number
- 2
- Communication Protocols
- Modbus TCP, EtherNet/IP, Modbus serial
- Manufacturer part number
- ATV930D11Y6
- Maximum Output Frequency
- 599 Hz
- Motor Power (Heavy Duty)
- 5.5 kW
- Line Current (Heavy Duty)
- 10.4 A at 500 V, 10.5 A at 690 V
- Motor Power (Normal Duty)
- 7.5 kW
- Line Current (Normal Duty)
- 13.6 A at 500 V, 14.7 A at 690 V
- Apparent Power (Heavy Duty)
- 12.5 kVA at 690 V
- Nominal Switching Frequency
- 4 kHz
- Apparent Power (Normal Duty)
- 17.6 kVA at 690 V
- Continuous Output Current (Heavy Duty)
- 9.5 A at 4 kHz
- Maximum Transient Current (Heavy Duty)
- 14.3 A during 60 s
- Continuous Output Current (Normal Duty)
- 13.5 A at 4 kHz
- Maximum Transient Current (Normal Duty)
- 16.2 A during 60 s
