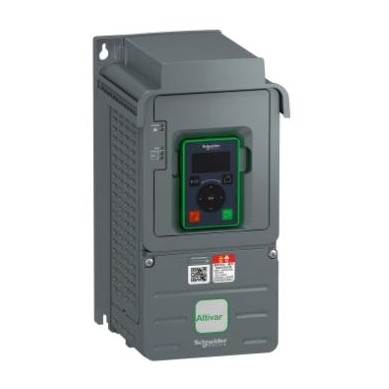

ATV610U40N4
Schneider Electric ATV610U40N4 Easy Altivar 610 Variable Speed Drive 4kW 5hp. This Easy Altivar 610 drive is a frequency inverter for three-phase asynchronous motors. It works at a rated supply voltage from 380V to 415V AC. It is suitable for motors with power rating up to 4kW / 5hp for applications requiring slight overload (up to 120%). It is suitable for motors with power rating up to 3kW for applications requiring significant overload (up to 150%). It offers a plug & play solution, whereby parameters are preset in the factory to the desired configuration, to help save process control and operating time. It has integrated radio interference input filters in accordance with the EMC standard for variable speed electrical power drive “products” IEC/EN 61800-3, edition 2, category C3 in environment 1 or 2. It weighs 4kg and its dimensions are, 145mm wide, 297mm high, 203mm deep. this drive has been specially designed for standard applications in the market segments water and wastewater and oil and gas and in the domains process and machine management and building management.
Details
- Brand: Schneider Electric
- Part number: ATV610U40N4
- Series: Easy Altivar 610
- Category: VFD
Related Schneider Electric parts
- Schneider Electric ATV610U22N4 — ATV610 Variable Speed Drive - 2.2 kW / 3HP - 380...415 V - IP20
- Schneider Electric ATV610U30N4 — ATV610 Variable Speed Drive 3 kW, 380...415 V, IP20
- Schneider Electric ATV610U55N4 — Altivar 610 Variable Speed Drive 5.5 kW 380-460 V
- Schneider Electric ATV610D15N4 — Easy Altivar 610 variable speed drive 15 kW 380-460V IP20
- Schneider Electric ATV610D18N4 — Easy Altivar 610 Variable Speed Drive 18.5kW 380-460V IP20
- Schneider Electric ATV610D22N4 — variable speed drive ATV610 - 22 kW/30 HP - 380...415 V - IP20
- Schneider Electric ATV610D37N4 — Schneider Electric Easy Altivar 610 Variable Speed Drive 37kW
- Schneider Electric ATV610D30N4 — Easy Altivar 610 Variable Speed Drive, 30kW
- Schneider Electric ATV610D45N4 — ATV610 Variable Speed Drive 45 kW/60 HP 380-460 V IP20
- Schneider Electric ATV610D55N4 — Easy Altivar 610 Variable Speed Drive 55kW 75hp 380-460V IP20
- Schneider Electric ATV610D75N4 — Easy Altivar 610 Variable Speed Drive 75 kW
- Schneider Electric ATV610D90N4 — Variable Speed Drive Easy Altivar 610, 90kW, 125hp, 380 to 460V, IP20
Request a quote for ATV610U40N4
Specifications
- Depth
- 203 mm
- Width
- 145 mm
- Height
- 297 mm
- EMC Filter
- Integrated C3
- Net Weight
- 4.045 kg
- Cooling Type
- Forced convection
- Motor Power (hp)
- 5 hp (normal duty)
- Motor Power (kW)
- 4 kW (normal duty)
- Output Frequency
- 0.0001…0.5 kHz
- Supply Frequency
- 50...60 Hz
- Prospective Line Isc
- 5 kA
- Rated Supply Voltage
- 380...460 V
- Communication Protocol
- Modbus serial
- IP Degree Of Protection
- IP20
- Manufacturer part number
- ATV610U40N4
- Network Number Of Phases
- 3 phases
- Continuous Output Current
- 9.3 A at 4 kHz (normal duty)
- Line Current (heavy duty)
- 7.2 A at 380 V, 6.2 A at 460 V
- Line Current (normal duty)
- 8.8 A at 380 V, 7.9 A at 460 V
- Apparent Power (heavy duty)
- 4.9 kVA at 460 V
- Nominal Switching Frequency
- 4 kHz
- Apparent Power (normal duty)
- 6.3 kVA at 460 V
