ATV610D18N4

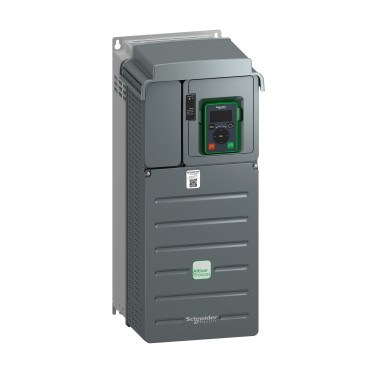

Schneider Electric ATV610D18N4 Easy Altivar 610 Variable Speed Drive 18.5kW 380-460V IP20. This Easy Altivar 610 drive is a frequency inverter for three-phase asynchronous motors. It works at a rated supply voltage from 380V to 415V AC. It is suitable for motors with power rating up to 18.5kW / 25hp for applications requiring slight overload (up to 120%). It is suitable for motors with power rating up to 15kW / 20hp for applications requiring significant overload (up to 150%). It offers a plug & play solution, whereby parameters are preset in the factory to the desired configuration, to help save process control and operating time. It has integrated radio interference input filters in accordance with the EMC standard for variable speed electrical power drive “products” IEC/EN 61800-3, edition 2, category C3 in environment 1 or 2. It weighs 13.3kg and its dimensions are, 211mm wide, 495mm high, 232mm deep. this drive has been specially designed for standard applications in the market segments water and wastewater and oil and gas and in the domains process and machine management and building management.
Details
- Brand: Schneider Electric
- Part number: ATV610D18N4
- Series: Easy Altivar 610
- Category: VFD
Related Schneider Electric parts
- Schneider Electric ATV610D22N4 — variable speed drive ATV610 - 22 kW/30 HP - 380...415 V - IP20
- Schneider Electric ATV610D37N4 — Schneider Electric Easy Altivar 610 Variable Speed Drive 37kW
- Schneider Electric ATV610D30N4 — Easy Altivar 610 Variable Speed Drive, 30kW
- Schneider Electric ATV610D45N4 — ATV610 Variable Speed Drive 45 kW/60 HP 380-460 V IP20
- Schneider Electric ATV610D55N4 — Easy Altivar 610 Variable Speed Drive 55kW 75hp 380-460V IP20
- Schneider Electric ATV610D75N4 — Easy Altivar 610 Variable Speed Drive 75 kW
- Schneider Electric ATV610D90N4 — Variable Speed Drive Easy Altivar 610, 90kW, 125hp, 380 to 460V, IP20
- Schneider Electric ATV610U75N4 — Easy Altivar 610 Variable Speed Drive 7.5 kW
- Schneider Electric ATV610D11N4 — Easy Altivar 610 Variable Speed Drive 11kW 380-460V IP20
- Schneider Electric ATV610U15N4 — Easy Altivar 610 Variable Speed Drive 1.5kW
- Schneider Electric ATV610U40N4 — Easy Altivar 610 Variable Speed Drive 4kW 5hp
- Schneider Electric ATV610U22N4 — ATV610 Variable Speed Drive - 2.2 kW / 3HP - 380...415 V - IP20
Request a quote for ATV610D18N4
Specifications
- Depth
- 232 mm
- Width
- 211 mm
- Height
- 495 mm
- Net weight
- 13.5 kg
- Type of cooling
- Forced convection
- Output frequency
- 0.1…500 Hz
- Prospective line Isc
- 22 kA
- Rated supply voltage
- 380...460 V
- IP degree of protection
- IP20
- Manufacturer part number
- ATV610D18N4
- Motor power (heavy duty)
- 15 kW
- Network number of phases
- 3 phases
- Motor power (normal duty)
- 18.5 kW
- Communication port protocol
- Modbus serial
- Nominal switching frequency
- 4 kHz
- Motor power (hp, heavy duty)
- 20 hp
- Motor power (hp, normal duty)
- 25 hp
- Line current (normal duty, 380V)
- 37.2 A
- Continuous output current (normal duty)
- 39.2 A at 4 kHz
