ATV610D55N4

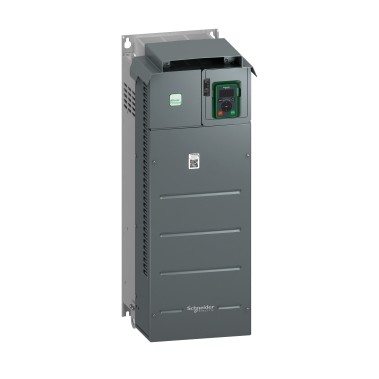

Schneider Electric ATV610D55N4 Easy Altivar 610 Variable Speed Drive 55kW 75hp 380-460V IP20. This Easy Altivar 610 drive is a frequency inverter for three-phase asynchronous motors. It works at a rated supply voltage from 380V to 415V AC. It is suitable for motors with power rating up to 55kW / 75hp for applications requiring slight overload (up to 120%). It is suitable for motors with power rating up to 45kW / 60hp for applications requiring significant overload (up to 150%). It offers a plug & play solution, whereby parameters are preset in the factory to the desired configuration, to help save process control and operating time. It has integrated radio interference input filters in accordance with the EMC standard for variable speed electrical power drive “products” IEC/EN 61800-3, edition 2, category C3 in environment 1 or 2. It weighs 53.7kg and its dimensions are, 290mm wide, 762mm high, 323mm deep. this drive has been specially designed for standard applications in the market segments water and wastewater and oil and gas and in the domains process and machine management and building management.
Details
- Brand: Schneider Electric
- Part number: ATV610D55N4
- Series: Easy Altivar 610
- Category: VFD
Related Schneider Electric parts
- Schneider Electric ATV610D75N4 — Easy Altivar 610 Variable Speed Drive 75 kW
- Schneider Electric ATV610D90N4 — Variable Speed Drive Easy Altivar 610, 90kW, 125hp, 380 to 460V, IP20
- Schneider Electric ATV610U75N4 — Easy Altivar 610 Variable Speed Drive 7.5 kW
- Schneider Electric ATV610D11N4 — Easy Altivar 610 Variable Speed Drive 11kW 380-460V IP20
- Schneider Electric ATV610U15N4 — Easy Altivar 610 Variable Speed Drive 1.5kW
- Schneider Electric ATV610U40N4 — Easy Altivar 610 Variable Speed Drive 4kW 5hp
- Schneider Electric ATV610U22N4 — ATV610 Variable Speed Drive - 2.2 kW / 3HP - 380...415 V - IP20
- Schneider Electric ATV610U30N4 — ATV610 Variable Speed Drive 3 kW, 380...415 V, IP20
- Schneider Electric ATV610U55N4 — Altivar 610 Variable Speed Drive 5.5 kW 380-460 V
- Schneider Electric ATV610D15N4 — Easy Altivar 610 variable speed drive 15 kW 380-460V IP20
- Schneider Electric ATV610D18N4 — Easy Altivar 610 Variable Speed Drive 18.5kW 380-460V IP20
- Schneider Electric ATV610D22N4 — variable speed drive ATV610 - 22 kW/30 HP - 380...415 V - IP20
Request a quote for ATV610D55N4
Specifications
- Depth
- 323 mm
- Width
- 290 mm
- Height
- 762 mm
- EMC filter
- Integrated (Category C3)
- Net weight
- 53 kg
- Type of cooling
- Forced convection
- Output frequency
- 0.1-500 Hz
- Supply frequency
- 50-60 Hz
- Rated supply voltage
- 380-460 V
- IP degree of protection
- IP20
- Manufacturer part number
- ATV610D55N4
- Motor power (heavy duty)
- 60 hp
- Network number of phases
- 3 phases
- Maximum transient current
- 132 A during 60 s
- Motor power (normal duty)
- 75 hp
- Line current (normal duty)
- 111.5 A at 380 V
- Nominal switching frequency
- 2.5 kHz
- Continuous output current (heavy duty)
- 88 A at 2.5 kHz
- Continuous output current (normal duty)
- 120 A at 2.5 kHz
