ATV610D30N4

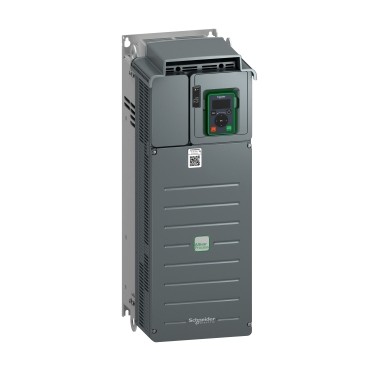

Schneider Electric ATV610D30N4 — VFD

Schneider Electric ATV610D30N4 Easy Altivar 610 Variable Speed Drive, 30kW. This Easy Altivar 610 drive is a frequency inverter for three-phase asynchronous motors. It works at a rated supply voltage from 380V to 415V AC. It is suitable for motors with power rating up to 30kW / 40hp for applications requiring slight overload (up to 120%). It is suitable for motors with power rating up to 22kW / 30hp for applications requiring significant overload (up to 150%). It offers a plug & play solution, whereby parameters are preset in the factory to the desired configuration, to help save process control and operating time. It has integrated radio interference input filters in accordance with the EMC standard for variable speed electrical power drive “products” IEC/EN 61800-3, edition 2, category C3 in environment 1 or 2. It weighs 26.1kg and its dimensions are, 226mm wide, 613mm high, 271mm deep. this drive has been specially designed for standard applications in the market segments water and wastewater and oil and gas and in the domains process and machine management and building management.

Details

Related Schneider Electric parts

Request a quote for ATV610D30N4

Specifications

Depth
271 mm
Width
226 mm
Height
613 mm
IP rating
IP20
Net weight
25.5 kg
Number of phases
3
Output frequency
0.1-500 Hz
Supply frequency
50-60 Hz
Prospective line Isc
22 kA
Rated supply voltage
380-460 V
Number of preset speeds
16
Manufacturer part number
ATV610D30N4
Motor power (heavy duty)
22 kW
Motor power (normal duty)
30 kW
Nominal switching frequency
4 kHz
Adjustable switching frequency
2-12 kHz
Continuous output current (heavy duty)
46.3 A
Continuous output current (normal duty)
61.5 A
