ATV610U07N4

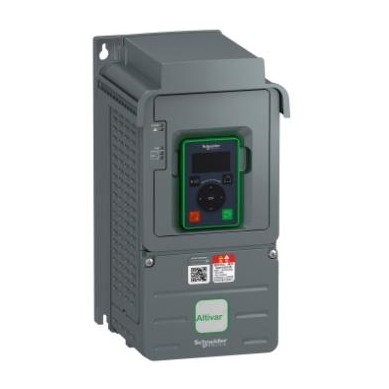

Schneider Electric ATV610U07N4 Variable Speed Drive ATV610 0.75 kW / 1HP 380-415V IP20. This Easy Altivar 610 drive is a frequency inverter for three-phase asynchronous motors. It works at a rated supply voltage from 380V to 415V AC. It is suitable for motors with power rating up to 0.75kW / 1hp for applications requiring slight overload (up to 120%). It is suitable for motors with power rating up to 0.37kW / 0.5hp for applications requiring significant overload (up to 150%). It offers a plug & play solution, whereby parameters are preset in the factory to the desired configuration, to help save process control and operating time. It has integrated radio interference input filters in accordance with the EMC standard for variable speed electrical power drive “products” IEC/EN 61800-3, edition 2, category C3 in environment 1 or 2. It weighs 2.4kg and its dimensions are, 145mm wide, 297mm high, 203mm deep. this drive has been specially designed for standard applications in the market segments water and wastewater and oil and gas and in the domains process and machine management and building management.
Details
- Brand: Schneider Electric
- Part number: ATV610U07N4
- Series: Altivar 610
- Category: VFD
Related Schneider Electric parts
- Schneider Electric ATV610U75N4 — Easy Altivar 610 Variable Speed Drive 7.5 kW
- Schneider Electric ATV610D11N4 — Easy Altivar 610 Variable Speed Drive 11kW 380-460V IP20
- Schneider Electric ATV610U15N4 — Easy Altivar 610 Variable Speed Drive 1.5kW
- Schneider Electric ATV610U40N4 — Easy Altivar 610 Variable Speed Drive 4kW 5hp
- Schneider Electric ATV610U22N4 — ATV610 Variable Speed Drive - 2.2 kW / 3HP - 380...415 V - IP20
- Schneider Electric ATV610U30N4 — ATV610 Variable Speed Drive 3 kW, 380...415 V, IP20
- Schneider Electric ATV610U55N4 — Altivar 610 Variable Speed Drive 5.5 kW 380-460 V
- Schneider Electric ATV610D15N4 — Easy Altivar 610 variable speed drive 15 kW 380-460V IP20
- Schneider Electric ATV610D18N4 — Easy Altivar 610 Variable Speed Drive 18.5kW 380-460V IP20
- Schneider Electric ATV610D22N4 — variable speed drive ATV610 - 22 kW/30 HP - 380...415 V - IP20
- Schneider Electric ATV610D37N4 — Schneider Electric Easy Altivar 610 Variable Speed Drive 37kW
- Schneider Electric ATV610D30N4 — Easy Altivar 610 Variable Speed Drive, 30kW
Request a quote for ATV610U07N4
Specifications
- Depth
- 203 mm
- Width
- 145 mm
- Height
- 297 mm
- Net Weight
- 3.135 kg
- Number of Phases
- 3 phases
- Output Frequency
- 0.0001…0.5 kHz
- Rated Supply Voltage
- 380...460 V
- IP Degree of Protection
- IP20
- Manufacturer part number
- ATV610U07N4
- Motor Power (Heavy Duty)
- 0.37 kW / 0.5 HP
- Motor Power (Normal Duty)
- 0.75 kW / 1 HP
- Line Current (Normal Duty)
- 3.1 A at 380 V
- Continuous Output Current (Normal Duty)
- 2.2 A at 4 kHz
