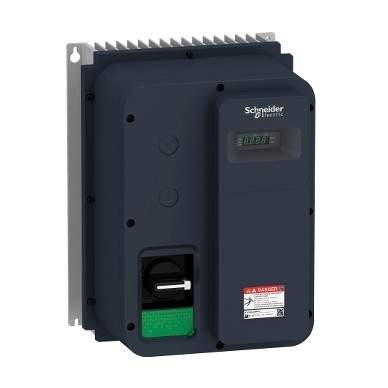

Schneider Electric ATV320U22M2WS Variable Speed Drive
Schneider Electric ATV320U22M2WS Variable speed drive, Altivar Machine ATV320, 2.2 kW, 200...240 V, 1 phase, enclosed. Altivar Machine ATV320 range is an offer of variable speed drives designed for Original Equipment Manufacturers (OEMs). This ATV320 drive can feed single-phase synchronous and asynchronous motors. It works at a rated power up to 2.2kW, and a rated voltage from 200V to 240V. Altivar high IP offers washable drives for harsh environments, if users want to clean the dust and chemical pollution outside of drives. It is delivered without fan, with embedded EMC C2 filter and it provides IP66 protection. It integrates as standard Modbus and CANopen communication protocols with access via the RJ45 connector on the front of the drive. It weighs 7.8kg. The drive software includes 5 safety functions that help machines meet safety requirements. These safety functions are configured using SoMove software. This Altivar Machine ATV320 is designed for conveyors, carton packers, gantry cranes, woodworking, metal processing, fans, Food & Beverage industry. It conforms to IEC, UL, TUV, KC and other international standards. EcoStruxure Machine software compatibility enables developping, configuring and commissioning the entire machine in a single software environment, including logic, motion control, HMI and related network automation functions. It is delivered in 2 packages. ATV320 can be installed alone or side by side in a multi-drive configuration. The Altivar Machine ATV320 series focus on easy integration for simple and advanced machine requirements with proven motor control and connectivity. ATV320 drives are specifically designed for material handling, packaging, textiles, hoisting, mechanical actuators, and material working.
Details
- Brand: Schneider Electric
- Part number: ATV320U22M2WS
- Series: Altivar Machine ATV320
- Category: VFD
Category
Altivar Machine ATV320 & ATV340 Drives
Related Schneider Electric parts
- Schneider Electric ATV320U75N4WS — Altivar Machine ATV320 Variable Speed Drive 7.5 kW 380-500 V 3-Phase IP65 Enclosed
- Schneider Electric ATV320D15N4C — Altivar Machine ATV320 Variable Speed Drive 15kW
- Schneider Electric ATV320U07N4C — variable speed drive ATV320 - 0.75kW - 380...500V - 3 phase - compact
- Schneider Electric ATV320U22N4B — variable speed drive, ATV320, 2.2 kW, 380… 500 V, 3 phases, book
- Schneider Electric ATV320U55N4B — Variable speed drive, Altivar Machine ATV320, 5.5 kW, 380-500 V, 3 phases
- Altivar Machine ATV320U40N4C variable speed drive 4 kW 380-500 V 3-phase compact
- Altivar Machine ATV320U75N4C variable speed drive 7.5 kW 380-500 V 3-phase compact
- Schneider Electric ATV320D11M3C — Variable Speed Drive, Altivar Machine ATV320, 11kW, 200-240V, 3 phases, Compact
- Schneider Electric ATV320D11N4B — Altivar Machine ATV320 Variable Speed Drive 11kW 3-Phase
- Schneider Electric ATV320D11N4C — Altivar Machine ATV320 Variable Speed Drive 11kW 3-Phase Compact
- Schneider Electric ATV320D15M3C — Altivar Machine ATV320 Variable Speed Drive 15kW 200-240V 3-phase Compact
- Altivar Machine ATV320D15N4B Variable Speed Drive, 15kW, 380-500V, 3-phase
Request a quote for ATV320U22M2WS
Specifications
- Phase
- 1 phase
- Width
- 250 mm
- Height
- 340 mm
- Motor power
- 2.2 kW
- Line current
- 24.0 A (200 V heavy duty), 20.2 A (240 V heavy duty)
- Mounting mode
- Wall mount
- Apparent power
- 4.8 kVA (240 V heavy duty)
- EMC filter class
- C2
- Network frequency
- 50-60 Hz
- Rated supply voltage
- 200-240 V
- Transient overtorque
- 170…200 % of nominal motor torque
- Analogue input number
- 3
- Discrete input number
- 7
- Maximum input current
- 24.0 A
- Analogue output number
- 1
- Discrete output number
- 3
- Maximum output voltage
- 240 V
- Nominal output current
- 11.0 A
- IP degree of protection
- IP65
- Manufacturer part number
- ATV320U22M2WS
- Maximum output frequency
- 0.599 kHz
- Communication port protocol
- Modbus serial, CANopen
- Nominal switching frequency
- 4 kHz
- With safety function Safe Stop 1 (SS1)
- True
- With safety function Safe torque off (STO)
- True
