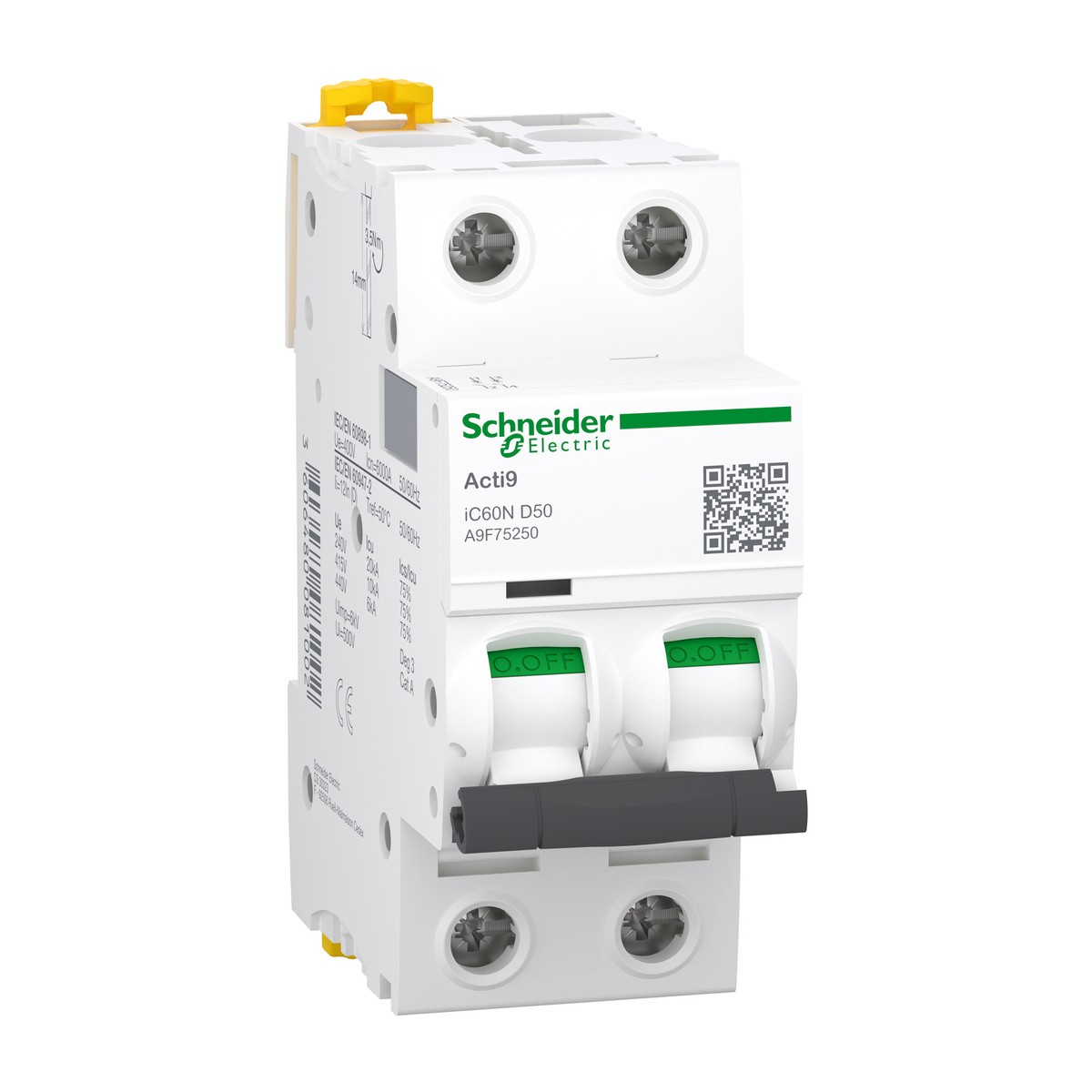

Schneider Electric A9F75250 Miniature Circuit Breaker, Acti9 iC60N, 2P, 50A, D Curve. The Schneider Electric A9F75250 is a robust Acti9 iC60N Miniature Circuit Breaker (MCB) designed for reliable overcurrent protection in final distribution circuits. This 2-pole (2P) device features a 50A rated current with a D-curve thermal-magnetic trip unit, ensuring effective protection against short-circuits and overloads for both AC and DC networks. It boasts a breaking capacity of 6000A (IEC/EN 60898-1) at 400V AC and 10kA (IEC/EN 60947-2) at 380-415V AC, perfectly suited for the 50/60 Hz systems prevalent in Egypt and the Gulf. Its versatility extends to various operational voltages, including 220-240V AC and 380-415V AC. The A9F75250 is DIN-rail mountable, offering easy installation in diverse industrial and commercial environments. With an IP20 degree of protection and an operating temperature range of -35 to 70 °C, it delivers consistent performance in challenging conditions. Ideal for applications in building services, water treatment plants, food and beverage facilities, textiles, and critical infrastructure within the oil and gas and cement industries. For dependable electrical protection, request a quote for the Schneider Electric A9F75250 today.
Details
- Brand: Schneider Electric
- Part number: A9F75250
- Series: Acti9
- Category: Miniature Circuit Breaker
Related Schneider Electric parts
- Schneider Electric A9F75301 — Acti9 iC60N Miniature Circuit Breaker 3P 1A D-curve
- Schneider Electric A9F75302 — Miniature Circuit Breaker, iC60N, 3P, 2A, D curve
- Schneider Electric A9F75304 — Miniature circuit breaker Acti9 iC60N 3P 4A D curve
- Schneider Electric A9F75306 — Miniature Circuit Breaker (MCB) 3P 6A D-Curve
- Schneider Electric A9F75316 — Miniature Circuit Breaker Acti9 iC60N 3P 16A D-curve
- Schneider Electric A9F75320 — Acti9 iC60N Miniature Circuit Breaker 3P 20A D-Curve
- Schneider Electric A9F75332 — Acti9 iC60N Miniature circuit breaker
- Schneider Electric A9F75340 — IC60N Miniature Circuit Breaker (MCB) 3P 40A D-Curve
- Schneider Electric A9F75350 — Acti9 iC60N 3P 50A D-curve MCB
- Schneider Electric A9F75363 — Miniature Circuit Breaker Acti9 iC60N 3P 63A D-Curve
- Schneider Electric A9F75410 — Acti9 iC60N Miniature Circuit Breaker 4P 10A D-Curve
- Schneider Electric A9F75463 — Miniature Circuit Breaker (MCB) Acti9 iC60N 4P 63A D-Curve
Specifications
- Depth
- 78.5 Mm
- Width
- 36 Mm
- Height
- 85 Mm
- Standards
- EN/IEC 60947-2, EN/IEC 60898-1
- Curve code
- D
- Net weight
- 0.25 Kg
- Network type
- AC, DC
- Mounting support
- 35 mm DIN rail
- Network frequency
- 50/60 Hz
- Poles description
- 2P
- [In] rated current
- 50 A
- Trip unit technology
- Thermal-magnetic
- Electrical durability
- 10000 Cycles
- Connections - terminals
- Single terminal (top or bottom) , for 1 cable(s) , 1…35 mm², rigid, copper
- IP degree of protection
- IP20 conforming to IEC 60529
- Manufacturer part number
- A9F75250
- Number of protected poles
- 2
- Suitability for isolation
- Yes
- [Ue] rated operational voltage
- 12...133 V AC 50/60 Hz, 220...240 V AC 50/60 Hz, 380...415 V AC 50/60 Hz, 440 V AC 50/60 Hz, <= 125 V DC
- Breaking capacity (IEC/EN 60898-1)
- 6000 A Icn at 400 V AC 50/60 Hz
- Breaking capacity (IEC/EN 60947-2)
- 10 KA Icu at 380-415 V AC 50/60 Hz
- Ambient air temperature for operation
- -35…70 °C
