A9F74203

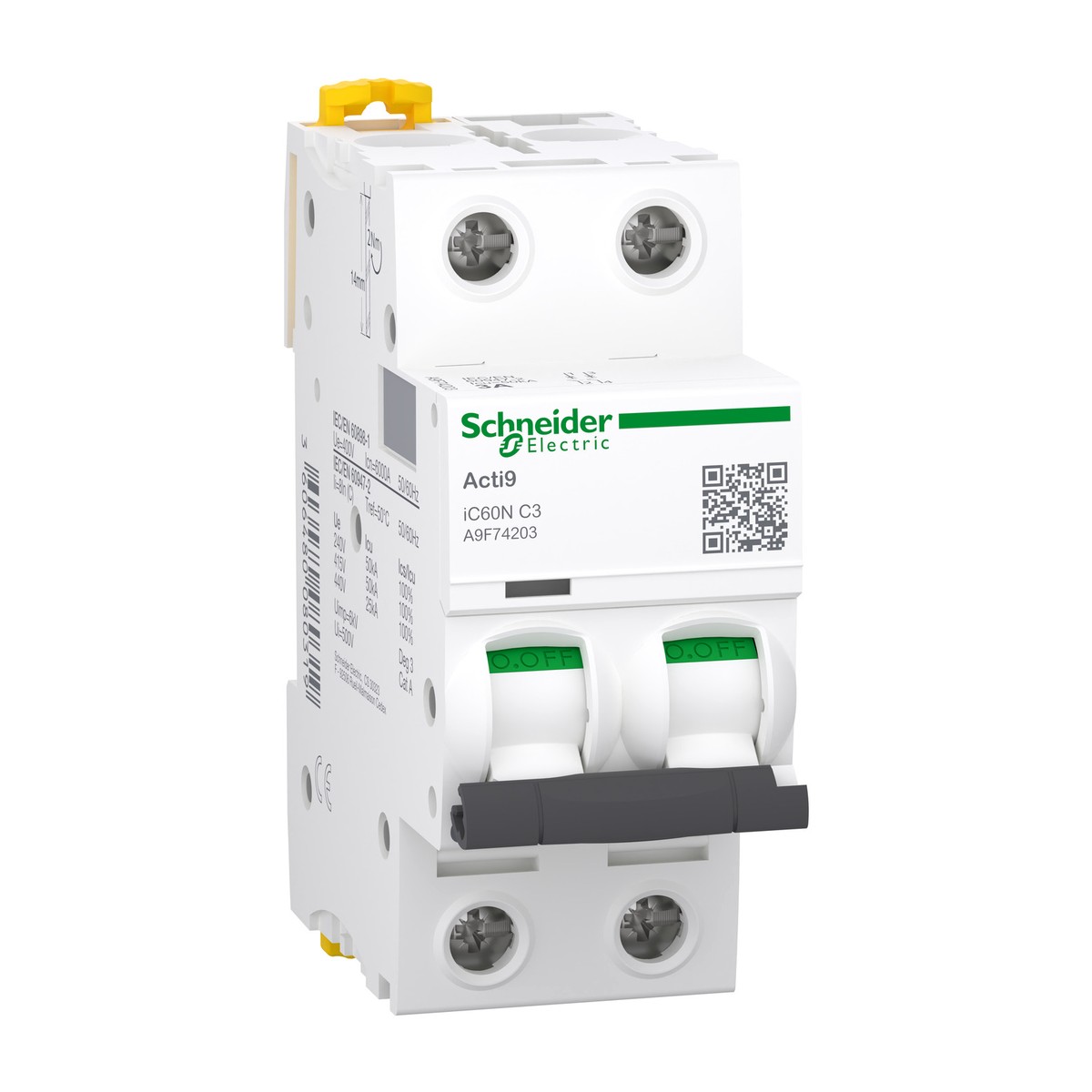

Schneider Electric A9F74203 Miniature Circuit Breaker (MCB) 2P 3A C-Curve. The Schneider Electric A9F74203 is a robust 2-pole, 3A Miniature Circuit Breaker (MCB) from the Acti9 iC60N range, engineered for reliable protection of final distribution circuits. This C-curve thermal-magnetic breaker efficiently guards against overcurrents and short circuits, ensuring system integrity and safety. With a formidable 50kA breaking capacity conforming to EN/IEC 60947-2 at 380-415V AC and 6000A conforming to EN/IEC 60898-1 at 400V AC, it is well-suited for demanding environments. Its versatility extends to various operational voltages, including 220-240V AC, 380-415V AC, and up to 125V DC, operating at 50/60 Hz. Designed for convenient 35mm DIN-rail mounting and featuring IP20 protection, the A9F74203 is an ideal choice for diverse applications in Egypt and the Gulf region, such as building services, water treatment facilities, food and beverage processing, and light industrial panels, including those in the oil and gas sector. For current pricing and availability, please request a quote.
Details
- Brand: Schneider Electric
- Part number: A9F74203
- Series: Acti9 iC60
- Category: Miniature Circuit Breaker
Related Schneider Electric parts
- Schneider Electric A9F74213 — Miniature Circuit Breaker (MCB), Acti9 iC60N, 2P, 13A, C curve
- Schneider Electric A9F74232 — Acti9 iC60N Miniature Circuit Breaker 2P 32A C-Curve
- Schneider Electric A9F74240 — Miniature Circuit Breaker (MCB) 2P 40A C-curve
- Schneider Electric A9F74263 — Miniature Circuit Breaker (MCB) 2P 63A C-Curve
- Schneider Electric A9F74301 — Acti9 iC60N Miniature Circuit Breaker 3P 1A C-curve
- Schneider Electric A9F74304 — Acti9 iC60N Miniature Circuit Breaker 3P 4A C-curve
- Schneider Electric A9F74306 — Acti9 iC60N Miniature Circuit Breaker (MCB) 3P 6A C-curve
- Schneider Electric A9F74310 — Acti9 iC60N 3P 10A C-curve Miniature Circuit Breaker
- Schneider Electric A9F74401 — Acti9 iC60N Miniature Circuit Breaker 4P 1A C-Curve
- Schneider Electric A9F74402 — iC60N Miniature Circuit Breaker 4P 2A C-curve
- Schneider Electric A9F74404 — Acti9 iC60N Miniature Circuit Breaker 4P 4A C-Curve
- Schneider Electric A9F74413 — Acti9 iC60N Miniature Circuit Breaker 4P 13A C Curve
Specifications
- Standards
- EN/IEC 60947-2, EN/IEC 60898-1
- Curve code
- C
- Network type
- AC, DC
- Mounting support
- 35 mm DIN rail
- Breaking capacity
- 50 KA Icu at 380-415 V AC 50/60 Hz conforming to EN/IEC 60947-2, 6000 A Icn at 400 V AC 50/60 Hz conforming to EN/IEC 60898-1, 10 KA Icu at <= 125 V DC conforming to EN/IEC 60947-2
- Poles description
- 2P
- Tightening torque
- 2 N.M top or bottom
- [In] rated current
- 3 A
- Trip unit technology
- Thermal-magnetic
- Mechanical durability
- 20000 Cycles
- Connections - terminals
- Single terminal (top or bottom), for 1 cable(s), 1…25 mm² rigid, copper; Single terminal (top or bottom), for 1 cable(s), 1…16 mm² flexible, copper
- IP degree of protection
- IP20 conforming to IEC 60529, IP40 in modular enclosure (Insulation class II) conforming to IEC 60529
- Manufacturer part number
- A9F74203
- Suitability for isolation
- Yes
- [Ue] rated operational voltage
- 12...133 V AC 50/60 Hz, 220...240 V AC 50/60 Hz, 380...415 V AC 50/60 Hz, 440 V AC 50/60 Hz, <= 125 V DC
- Ambient air temperature for operation
- -35…70 °C
