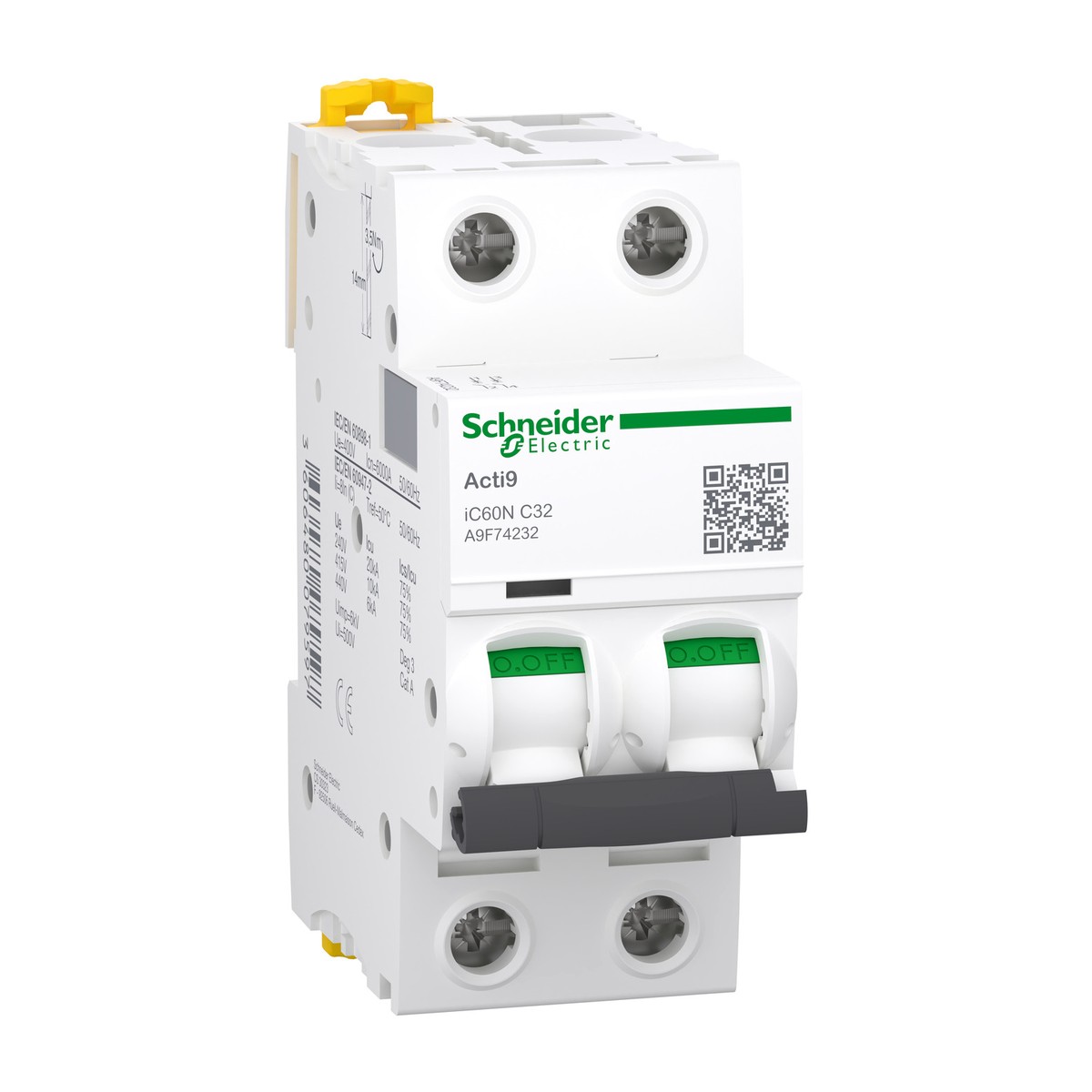

Schneider Electric A9F74232 Acti9 iC60N Miniature Circuit Breaker 2P 32A C-Curve. The Schneider Electric A9F74232 is a robust Miniature Circuit Breaker (MCB) from the acclaimed Acti9 iC60N series, specifically engineered for reliable electrical distribution in final circuits. This 2-pole, 32A C-curve thermal-magnetic MCB provides essential protection against overcurrents and short circuits for both AC and DC networks. It boasts a high breaking capacity of 10kA conforming to EN/IEC 60947-2 at 380-415 V AC and 6000A conforming to EN/IEC 60898-1 at 400 V AC, making it suitable for demanding environments. Designed for convenience, the A9F74232 features DIN-rail mounting and versatile terminal connections accommodating various cable types up to 35mm². Its suitability for isolation ensures safety during maintenance. With an IP20 degree of protection and an operational temperature range of -35 to 70 °C, it's built for durability in diverse conditions. This Schneider Electric MCB is a common component in a wide array of Egyptian and Gulf industries, including water treatment plants, oil and gas facilities, cement production, food and beverage processing, textiles, and building services.
Details
- Brand: Schneider Electric
- Part number: A9F74232
- Series: Acti9 iC60
- Category: Miniature Circuit Breaker
Related Schneider Electric parts
- Schneider Electric A9F74240 — Miniature Circuit Breaker (MCB) 2P 40A C-curve
- Schneider Electric A9F74263 — Miniature Circuit Breaker (MCB) 2P 63A C-Curve
- Schneider Electric A9F74301 — Acti9 iC60N Miniature Circuit Breaker 3P 1A C-curve
- Schneider Electric A9F74304 — Acti9 iC60N Miniature Circuit Breaker 3P 4A C-curve
- Schneider Electric A9F74306 — Acti9 iC60N Miniature Circuit Breaker (MCB) 3P 6A C-curve
- Schneider Electric A9F74310 — Acti9 iC60N 3P 10A C-curve Miniature Circuit Breaker
- Schneider Electric A9F74401 — Acti9 iC60N Miniature Circuit Breaker 4P 1A C-Curve
- Schneider Electric A9F74402 — iC60N Miniature Circuit Breaker 4P 2A C-curve
- Schneider Electric A9F74404 — Acti9 iC60N Miniature Circuit Breaker 4P 4A C-Curve
- Schneider Electric A9F74413 — Acti9 iC60N Miniature Circuit Breaker 4P 13A C Curve
- Schneider Electric A9F74416 — iC60N Miniature Circuit Breaker 4P 16A C-Curve
- Schneider Electric A9F74463 — Miniature Circuit Breaker Acti9 iC60N 4P 63A C-Curve
Specifications
- Depth
- 78.5 Mm
- Width
- 36 Mm
- Height
- 85 Mm
- Standards
- EN/IEC 60947-2, EN/IEC 60898-1
- Curve code
- C
- Net weight
- 0.25 Kg
- Network type
- DC, AC
- Mounting support
- 35 mm DIN rail
- Network frequency
- 50/60 Hz
- Poles description
- 2P
- Tightening torque
- 3.5 N.M top or bottom
- [In] rated current
- 32 A
- Trip unit technology
- Thermal-magnetic
- Electrical durability
- 10000 Cycles
- Wire stripping length
- 14 Mm for top or bottom connection
- IP degree of protection
- IP20
- Manufacturer part number
- A9F74232
- Suitability for isolation
- Yes conforming to EN/IEC 60898-1, Yes conforming to EN/IEC 60947-2
- [Ue] rated operational voltage
- 12...133 V AC 50/60 Hz, 220...240 V AC 50/60 Hz, 380...415 V AC 50/60 Hz, 440 V AC 50/60 Hz, <= 125 V DC
- Breaking capacity (IEC/EN 60898-1)
- 6000 A Icn at 400 V AC 50/60 Hz
- Breaking capacity (IEC/EN 60947-2)
- 10 KA Icu at 380-415 V AC 50/60 Hz
- Ambient air temperature for operation
- -35…70 °C
- Connections - terminals (rigid, copper)
- Single terminal (top or bottom) , for 1 cable(s) , 1…35 mm²
