A9F74402

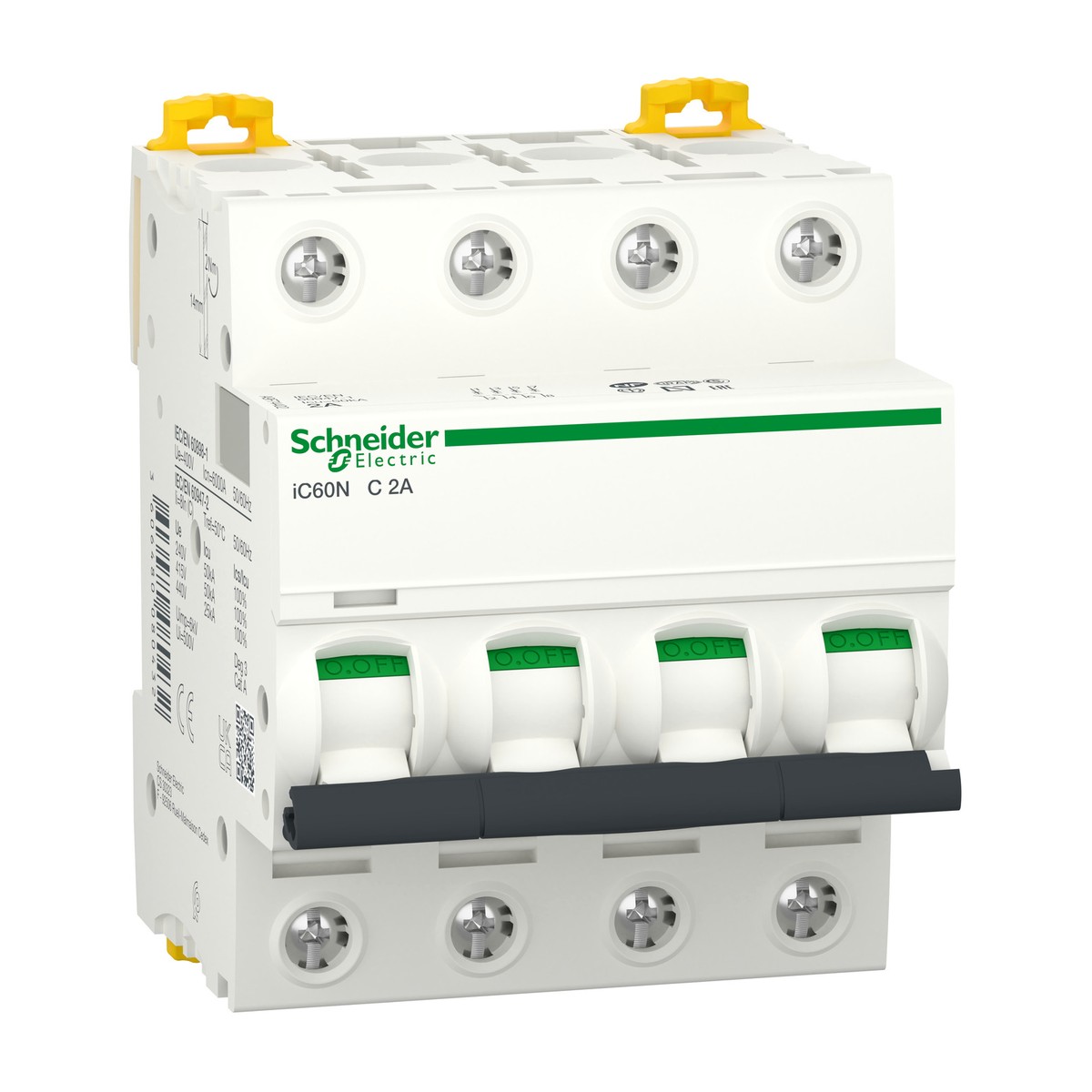

Schneider Electric A9F74402 iC60N Miniature Circuit Breaker 4P 2A C-curve. The Schneider Electric A9F74402 is a robust iC60N Miniature Circuit Breaker (MCB) designed for reliable protection in final distribution circuits. This 4-pole, 2 Amp C-curve MCB features thermal-magnetic trip unit technology, ensuring efficient overcurrent and short-circuit protection for both AC and DC networks. It supports common operational voltages, including 220-240 V AC and 380-415 V AC (50/60 Hz), as well as up to 250 V DC, making it highly versatile. Key specifications include a high breaking capacity of 50 kA Icu at 220-415 V AC (EN/IEC 60947-2) and 6000 A Icn at 400 V AC (EN/IEC 60898-1). Designed for straightforward installation, the A9F74402 mounts easily onto a 35 mm DIN rail and accepts rigid cables up to 25 mm² or flexible cables up to 16 mm². Its IP20 protection (IP40 in a modular enclosure) and wide -35 to 70 °C operating temperature range ensure durability. This dependable Schneider Electric MCB is ideal for critical infrastructure and building services across the Gulf and Egypt, serving applications in water treatment, commercial facilities, and light industrial settings where precise and robust circuit protection is essential.
Details
- Brand: Schneider Electric
- Part number: A9F74402
- Series: Acti9 iC60
- Category: Miniature Circuit Breaker
Related Schneider Electric parts
- Schneider Electric A9F74404 — Acti9 iC60N Miniature Circuit Breaker 4P 4A C-Curve
- Schneider Electric A9F74413 — Acti9 iC60N Miniature Circuit Breaker 4P 13A C Curve
- Schneider Electric A9F74416 — iC60N Miniature Circuit Breaker 4P 16A C-Curve
- Schneider Electric A9F74463 — Miniature Circuit Breaker Acti9 iC60N 4P 63A C-Curve
- Schneider Electric A9F75102 — Miniature Circuit Breaker (MCB) Acti9 iC60N 1P 2A D-Curve
- Schneider Electric A9F75103 — Miniature Circuit Breaker Acti9 iC60N 1P 3A D-curve
- Schneider Electric A9F75104 — Miniature Circuit Breaker Acti9 iC60N 1P 4A D-Curve
- Schneider Electric A9F75106 — Acti9 iC60N MCB 1P 6A D-curve
- Schneider Electric A9F75110 — Acti9 iC60N Miniature Circuit Breaker 1P 10A D-curve
- Schneider Electric A9F75116 — Acti9 iC60N Miniature Circuit Breaker 1P 16A D-curve
- Schneider Electric A9F75132 — Acti9 iC60N Miniature Circuit Breaker 1P 32A D-Curve
- Schneider Electric A9F75140 — Acti9 iC60N Miniature Circuit Breaker 1P 40A D-curve
Specifications
- Depth
- 78.5 mm
- Width
- 72 mm
- Height
- 85 mm
- Curve code
- C
- Net weight
- 0.5 Kg
- Network type
- DC; AC
- Mounting support
- 35 mm DIN rail
- Network frequency
- 50/60 Hz
- Poles description
- 4P
- Tightening torque
- 2 N.M top or bottom
- [In] rated current
- 2 A
- Trip unit technology
- Thermal-magnetic
- Connections - terminals
- Single terminal 1…25 mm² (rigid); 1…16 mm² (flexible)
- IP degree of protection
- IP20 conforming to IEC 60529; IP40 in modular enclosure (Insulation class II) conforming to IEC 60529
- Magnetic tripping limit
- 8 x In +/- 20 %
- Manufacturer part number
- A9F74402
- Number of protected poles
- 4
- [Ui] rated insulation voltage
- 500 V AC 50/60 Hz
- [Ue] rated operational voltage
- 12...133 V AC 50/60 Hz; 220...240 V AC 50/60 Hz; 380...415 V AC 50/60 Hz; 440 V AC 50/60 Hz; <= 250 V DC
- Breaking capacity (IEC/EN 60898-1)
- 6000 A Icn at 400 V AC 50/60 Hz
- Breaking capacity (IEC/EN 60947-2)
- 50 KA Icu at 12...133 V AC; 50 KA Icu at 220...240 V AC; 50 KA Icu at 380...415 V AC; 25 KA Icu at 440 V AC; 10 KA Icu at <= 250 V DC
- Ambient air temperature for operation
- -35…70 °C
