A9F74213

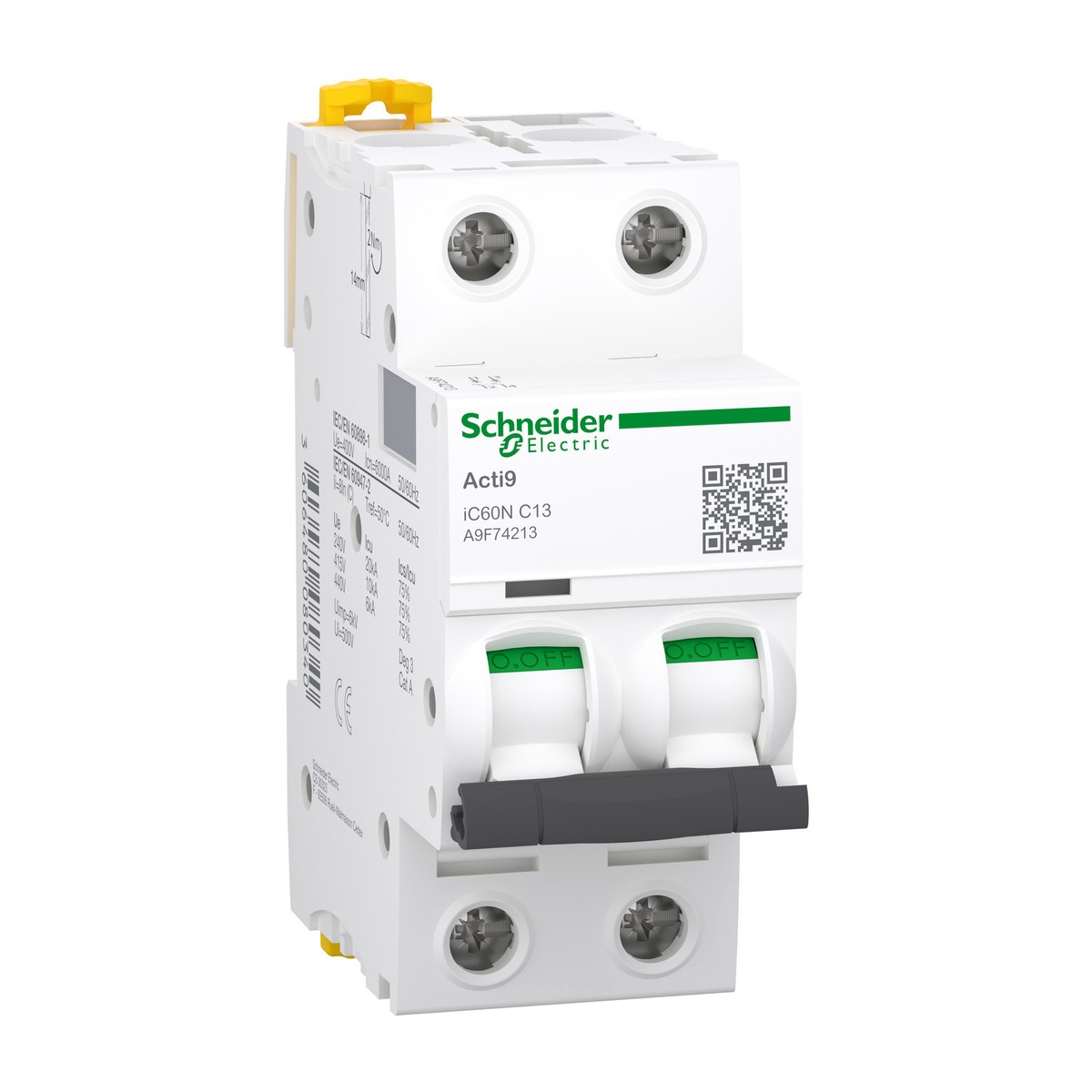

Schneider Electric A9F74213 Miniature Circuit Breaker (MCB), Acti9 iC60N, 2P, 13A, C curve. The Schneider Electric A9F74213 is a robust miniature circuit breaker (MCB) from the Acti9 iC60N series, specifically engineered for reliable protection of final distribution circuits. This 2-pole, 13A C-curve thermal-magnetic MCB provides essential overload and short-circuit protection for both AC and DC networks. It boasts a breaking capacity of 6000 A (IEC/EN 60898-1) at 400 V AC and 10 KA (IEC/EN 60947-2) at 380-415 V AC, making it suitable for a wide range of electrical installations. Designed for universal compatibility with 50/60 Hz networks, it supports operational voltages including 220-240 V AC and 380-415 V AC, commonly found across Egypt and the Gulf region. Its DIN rail mounting simplifies installation in diverse settings, from building services to industrial applications such as water treatment plants, food and beverage facilities, and general manufacturing. The A9F74213 offers excellent isolation capability, ensuring safety during maintenance. For trusted circuit protection in demanding environments, request a quote for the Schneider Electric A9F74213 today.
Details
- Brand: Schneider Electric
- Part number: A9F74213
- Series: Acti9 iC60
- Category: Miniature Circuit Breaker
Related Schneider Electric parts
- Schneider Electric A9F74232 — Acti9 iC60N Miniature Circuit Breaker 2P 32A C-Curve
- Schneider Electric A9F74240 — Miniature Circuit Breaker (MCB) 2P 40A C-curve
- Schneider Electric A9F74263 — Miniature Circuit Breaker (MCB) 2P 63A C-Curve
- Schneider Electric A9F74301 — Acti9 iC60N Miniature Circuit Breaker 3P 1A C-curve
- Schneider Electric A9F74304 — Acti9 iC60N Miniature Circuit Breaker 3P 4A C-curve
- Schneider Electric A9F74306 — Acti9 iC60N Miniature Circuit Breaker (MCB) 3P 6A C-curve
- Schneider Electric A9F74310 — Acti9 iC60N 3P 10A C-curve Miniature Circuit Breaker
- Schneider Electric A9F74401 — Acti9 iC60N Miniature Circuit Breaker 4P 1A C-Curve
- Schneider Electric A9F74402 — iC60N Miniature Circuit Breaker 4P 2A C-curve
- Schneider Electric A9F74404 — Acti9 iC60N Miniature Circuit Breaker 4P 4A C-Curve
- Schneider Electric A9F74413 — Acti9 iC60N Miniature Circuit Breaker 4P 13A C Curve
- Schneider Electric A9F74416 — iC60N Miniature Circuit Breaker 4P 16A C-Curve
Specifications
- Depth
- 78.5 Mm
- Width
- 36 Mm
- Height
- 85 Mm
- Curve code
- C
- Net weight
- 0.25 Kg
- Network type
- DC, AC
- Mounting mode
- Clip-on, Removable comb busbar installed
- Mounting support
- 35 mm DIN rail
- Network frequency
- 50/60 Hz
- Poles description
- 2P
- [In] rated current
- 13 A
- Trip unit technology
- Thermal-magnetic
- Electrical durability
- 10000 Cycles
- Mechanical durability
- 20000 Cycles
- IP degree of protection
- IP20 conforming to IEC 60529
- Manufacturer part number
- A9F74213
- Number of protected poles
- 2
- Product or component type
- Miniature circuit-breaker
- Suitability for isolation
- Yes conforming to EN/IEC 60898-1, Yes conforming to EN/IEC 60947-2
- [Ue] rated operational voltage
- 12...133 V AC 50/60 Hz, 220...240 V AC 50/60 Hz, 380...415 V AC 50/60 Hz, 440 V AC 50/60 Hz, <= 125 V DC
- Breaking capacity (IEC/EN 60898-1)
- 6000 A Icn at 400 V AC 50/60 Hz
- Breaking capacity (IEC/EN 60947-2)
- 10 KA Icu at 380...415 V AC 50/60 Hz
- Ambient air temperature for operation
- -35…70 °C
