O6T305

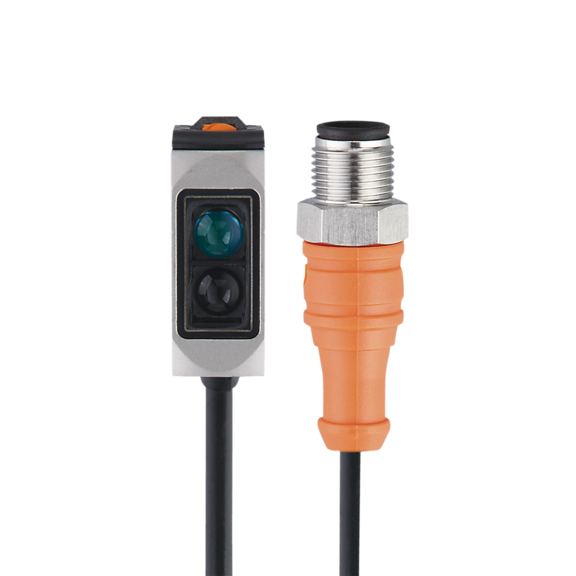

IFM O6T305 — Diffuse reflection sensor

IFM O6T305 Diffuse reflection sensor. IFM lists these product characteristics: Robust stainless steel housing for use in the food industry, Resistant to high-pressure cleaning with aggressive cleaning agents, High protection rating for the requirements of harsh industrial environments, Intuitive setting of range and output function.

Details

Related IFM parts

Request a quote for O6T305

Specifications

EMC
EN 60947-5-2
Cable
0.3 m, PVC; 3 x 0.25 mm²
Display
Switching status: 1 x LED, yellow; Power: 1 x LED, green
Housing
rectangular
Remarks
cULus - Class 2 source required
Material
housing: stainless steel (1.4404 / 316L); sealing: EPDM; plastics: PPSU
Connector
1 x M12; coding: A; Contacts: 4
Protection
IP 65; IP 67; IP 68; IP 69K
Range [mm]
5...500; (white paper 200 x 200 mm 90 % remission)
Weight [g]
51.2
Application
food and beverage industry
UL approval
Ta: -25...40 °C; Enclosure type: Type 1; voltage supply: Class 2; UL approval number: E006
MTTF [years]
910
Lens material
front lens:PMMA
Pack quantity
1 pcs.
Type of light
red light
Lens alignment
Side sensing
Dimensions [mm]
34.8 x 13 x 21
Output function
light-on/dark-on mode; (selectable)
IFM product code
O6T305
Protection class
III
Range adjustable
yes
Wave length [nm]
633
Electrical design
NPN
Function principle
Diffuse reflection sensor
Setting range [mm]
100...500
Operating voltage [V]
10...30 DC
Tightening torque [Nm]
1; (screws)
Current consumption [mA]
16; ((24 V))
Short-circuit protection
yes
Ambient temperature [°C]
-25...80
Reverse polarity protection
yes
Switching frequency DC [Hz]
1000
Max. light spot diameter [mm]
15
Light spot dimensions refer to
at maximum range
Type of short-circuit protection
yes (non-latching)
Max. voltage drop switching output DC [V]
2.5
Permanent current rating of switching output DC [mA]
100
