O6S300

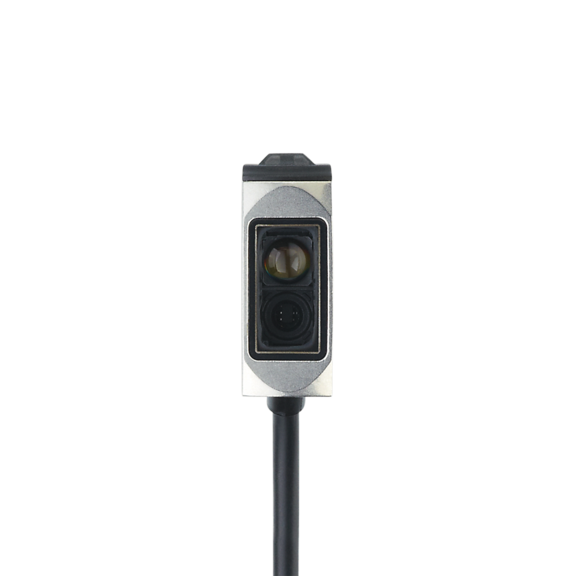

IFM O6S300 — Through-beam sensor transmitter

IFM O6S300 Through-beam sensor transmitter. IFM lists these product characteristics: Robust stainless steel housing for use in the food industry, Resistant to high-pressure cleaning with aggressive cleaning agents, High protection rating for the requirements of harsh industrial environments, Very long range independent of the object color.

Details

Related IFM parts

Request a quote for O6S300

Specifications

EMC
EN 60947-5-2
Cable
2 m, PVC; 2 x 0.25 mm²
Display
Power: 1 x LED, green
Housing
rectangular
Remarks
cULus - Class 2 source required
Material
housing: stainless steel (1.4404 / 316L); sealing: EPDM; plastics: PPSU
Range [m]
< 10
Protection
IP 65; IP 67; IP 68; IP 69K
Weight [g]
76.4
Application
food and beverage industry
UL approval
Ta: -25...80 °C; Enclosure type: Type 1; voltage supply: Class 2; UL approval number: E004
MTTF [years]
2600
Lens material
front lens:PMMA
Pack quantity
1 pcs.
Type of light
red light
Lens alignment
Side sensing
Dimensions [mm]
34.8 x 13 x 21
IFM product code
O6S300
Protection class
III
Wave length [nm]
633
Function principle
Through-beam sensor
Operating voltage [V]
10...30 DC
Tightening torque [Nm]
1; (screws)
Transmitter / receiver
transmitter
Current consumption [mA]
11; ((24 V))
Ambient temperature [°C]
-25...80
Max. light spot diameter [mm]
300
Light spot dimensions refer to
at maximum range
