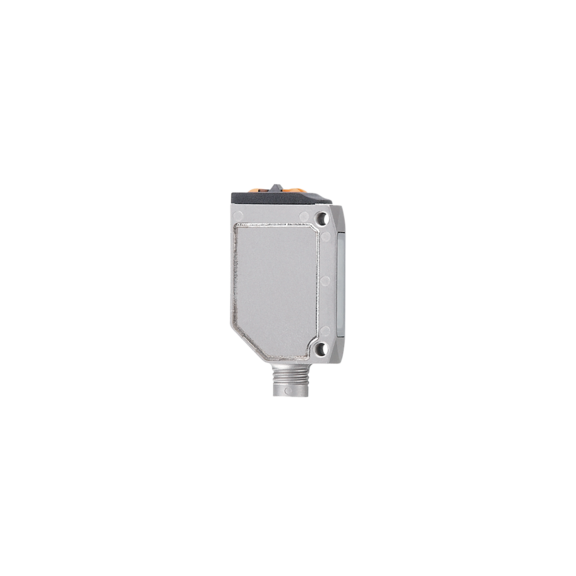

IFM O6E309 — Through-beam sensor receiver

IFM O6E309 Through-beam sensor receiver. IFM lists these product characteristics: Robust stainless steel housing for use in the food industry, Resistant to high-pressure cleaning with aggressive cleaning agents, High protection rating for the requirements of harsh industrial environments, Very long range independent of the object color, Intuitive setting of sensitivity and output function.

Details

Related IFM parts

Request a quote for O6E309

Specifications

EMC
EN 60947-5-2
Display
Switching status: 1 x LED, yellow; Power: 1 x LED, green
Housing
rectangular
Remarks
cULus - Class 2 source required
Material
housing: stainless steel (1.4404 / 316L); sealing: EPDM; plastics: PPSU
Profiles
Smart Sensor - SSP 0: Generic Profiled Sensor; Function: Device identification; Function: Multiple switching signal
SIO mode
yes
Connector
1 x M8; coding: A; Contacts: 4
Range [m]
< 10
Protection
IP 65; IP 67; IP 68; IP 69K
Weight [g]
34.1
Application
food and beverage industry
UL approval
Ta: -25...40 °C; Enclosure type: Type 1; voltage supply: Class 2; UL approval number: E010
MTTF [years]
716
Lens material
front lens:PMMA
Pack quantity
1 pcs.
SDCI standard
IEC 61131-9
Type of light
red light
Lens alignment
Side sensing
Dimensions [mm]
34.8 x 13 x 21
Output function
light-on/dark-on mode; (selectable)
IFM product code
O6E309
IO-Link revision
1.1
Protection class
III
Range adjustable
yes
Wave length [nm]
633
Electrical design
PNP
Transmission type
COM2 (38,4 kBaud)
Function principle
Through-beam sensor
Supported DeviceIDs
Type of operation: DeviceID; default: 421
Operating voltage [V]
10...30 DC
Tightening torque [Nm]
1; (screws)
Transmitter / receiver
receiver
Communication interface
IO-Link
Current consumption [mA]
7; ((24 V))
Short-circuit protection
yes
Ambient temperature [°C]
-25...80
Required master port class
A
Reverse polarity protection
yes
Switching frequency DC [Hz]
1000
Min. process cycle time [ms]
2.5
IO-Link functions (acyclical)
application specific tag; operating hours counter; switching cycles counter
IO-Link process data (cyclical)
Function: bit length; process value: 8; binary switching information: 1
Type of short-circuit protection
yes (non-latching)
Max. voltage drop switching output DC [V]
2.5
Permanent current rating of switching output DC [mA]
100
