O6H702

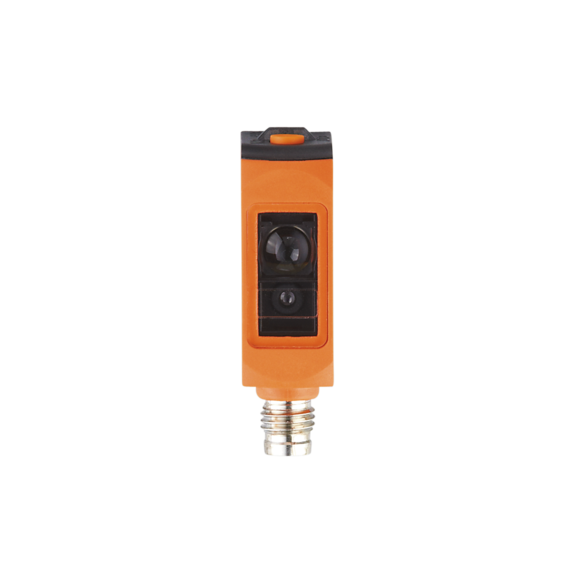

IFM O6H702 Diffuse reflection sensors with background suppression. IFM lists these product characteristics: Precise background suppression, Excellent price/performance ratio, Compact rectangular design.
Details
- Brand: IFM
- Part number: O6H702
- Series: O6
- Category: Photoelectric sensors
Related IFM parts
- Diffuse reflection sensors with background suppression
- Diffuse reflection sensors with background suppression
- Diffuse reflection sensors with background suppression
- Retro-reflective sensor
- Retro-reflective sensor
- Retro-reflective sensor
- Retro-reflective sensor
- Through-beam sensor transmitter
- Diffuse reflection sensor
- Diffuse reflection sensor
- Diffuse reflection sensor
- Diffuse reflection sensor
Specifications
- EMC
- EN 60947-5-2
- Display
- Switching status: 1 x LED, yellow; Power: 1 x LED, green
- Housing
- rectangular
- Remarks
- cULus - Class 2 source required
- Material
- housing: ABS; PPSU; sealing: EPDM
- Profiles
- Smart Sensor - SSP 0: Generic Profiled Sensor; Function: Device identification; Function: Multiple switching signal; Function: Process data variable; Function: Device diagnosis; Function: Teach channel
- SIO mode
- yes
- Connector
- 1 x M8; coding: A; Contacts: 4
- Protection
- IP 65; IP 67
- Range [mm]
- 1...100; (white paper 200 x 200 mm)
- Weight [g]
- 19.5
- Application
- Industrial applications
- UL approval
- Ta: -25...40 °C; Enclosure type: Type 1; voltage supply: Class 2
- MTTF [years]
- 513
- Lens material
- front lens:PMMA
- Pack quantity
- 1 pcs.
- SDCI standard
- IEC 61131-9
- Type of light
- red light
- Lens alignment
- Side sensing
- Dimensions [mm]
- 46 x 13 x 21
- Output function
- light-on/dark-on mode; (selectable)
- Special feature
- Background suppression
- IFM product code
- O6H702
- IO-Link revision
- 1.1
- Protection class
- III
- Range adjustable
- yes
- Wave length [nm]
- 650
- Electrical design
- PNP
- Transmission type
- COM2 (38,4 kBaud)
- Function principle
- Diffuse reflection sensor
- Supported DeviceIDs
- Type of operation: DeviceID; default: 526
- Operating voltage [V]
- 10...30 DC
- Laser protection class
- 1
- Tightening torque [Nm]
- 0.5; (screws)
- Communication interface
- IO-Link
- Current consumption [mA]
- 16; (24 V)
- Short-circuit protection
- yes
- Ambient temperature [°C]
- -10...60
- Notes on laser protection
- Caution:: Laser light; laser class:: 1; EN / IEC60825-1:2007; EN / IEC60825-1:2014; Complies with 21 CFR 1040.10 except for conformance with IEC 60825-1 Ed. 3, as described in Laser Notice No. 56, dated May 8, 2019.
- Required master port class
- A
- Reverse polarity protection
- yes
- Switching frequency DC [Hz]
- 1000
- Min. process cycle time [ms]
- 10
- IO-Link functions (acyclical)
- application specific tag; operating hours counter; switch-on cycle counter
- Max. light spot diameter [mm]
- 2
- Light spot dimensions refer to
- at maximum range
- IO-Link process data (cyclical)
- Function: bit length; process value: 32; device status: 4; binary switching information: 1
- Background suppression available
- yes
- Type of short-circuit protection
- yes (non-latching)
- Max. voltage drop switching output DC [V]
- 2.5
- Range on black object (6 % remission) [mm]
- 12...100
- Range on grey object (18 % remission) [mm]
- 8...100
- Range on white object (90 % remission) [mm]
- 1...100
- Permanent current rating of switching output DC [mA]
- 100
