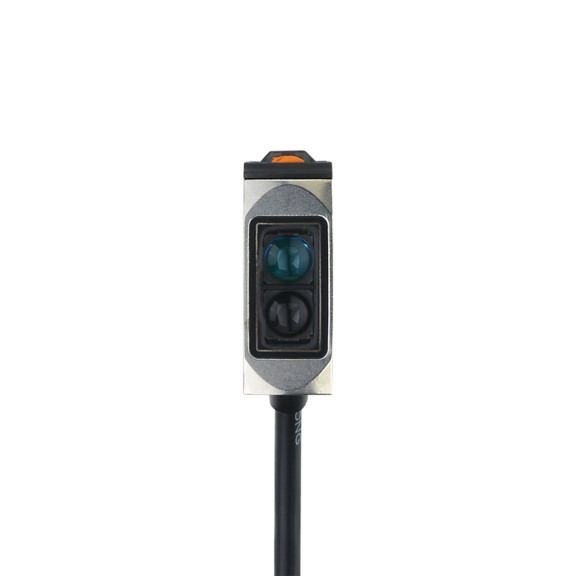

IFM O6T403 — Diffuse reflection sensor

IFM O6T403 Diffuse reflection sensor. IFM lists these product characteristics: Robust stainless steel housing for use in metalworking and in the automotive industry, Resistant to oils and coolants, High protection rating for the requirements of harsh industrial environments, Intuitive setting of range and output function.

Details

Related IFM parts

Request a quote for O6T403

Specifications

EMC
EN 60947-5-2
Cable
5 m, PUR; 3 x 0.25 mm²
Display
Switching status: 1 x LED, yellow; Power: 1 x LED, green
Housing
rectangular
Remarks
cULus - Class 2 source required
Material
housing: stainless steel (1.4404 / 316L); plastics: PPSU; sealing: FKM
Protection
IP 65; IP 67; IP 68
Range [mm]
5...500; (white paper 200 x 200 mm 90 % remission)
Weight [g]
133.3
Application
suited for use in the machine tool industry
UL approval
Ta: -25...60 °C; Enclosure type: Type 1; voltage supply: Class 2; UL approval number: E018
MTTF [years]
896
Lens material
front lens:PMMA
Pack quantity
1 pcs.
Type of light
red light
Lens alignment
Side sensing
Dimensions [mm]
34.8 x 13 x 21
Output function
light-on/dark-on mode; (selectable)
IFM product code
O6T403
Protection class
III
Range adjustable
yes
Wave length [nm]
633
Electrical design
NPN
Function principle
Diffuse reflection sensor
Setting range [mm]
100...500
Operating voltage [V]
10...30 DC
Tightening torque [Nm]
1; (screws)
Current consumption [mA]
16; ((24 V))
Short-circuit protection
yes
Ambient temperature [°C]
-25...60
Reverse polarity protection
yes
Switching frequency DC [Hz]
1000
Max. light spot diameter [mm]
15
Light spot dimensions refer to
at maximum range
Type of short-circuit protection
yes (non-latching)
Max. voltage drop switching output DC [V]
2.5
Permanent current rating of switching output DC [mA]
100
