O6H213

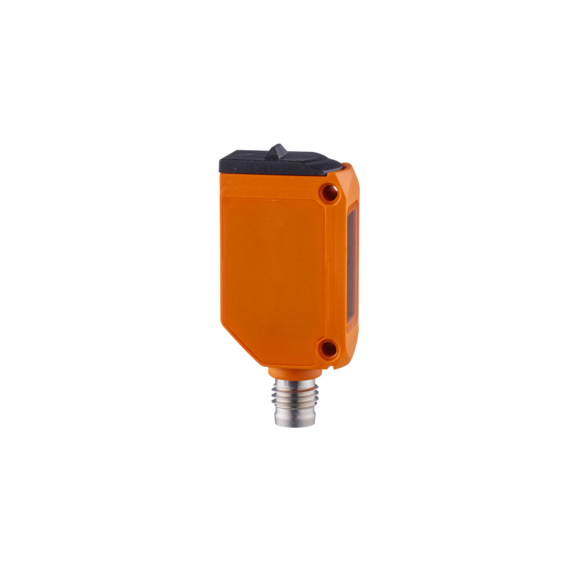

IFM O6H213 Diffuse reflection sensors with background suppression. IFM lists these product characteristics: Particularly compact housing for use where space is restricted, Ready for operation immediately thanks to fixed setting, For applications in robotics, assembly and handling technology, Precise background suppression sensing on highly reflective background, Excellent price/performance ratio.
Details
- Brand: IFM
- Part number: O6H213
- Series: O6
- Category: Photoelectric sensors
Related IFM parts
- Diffuse reflection sensors with background suppression
- Diffuse reflection sensors with background suppression
- Diffuse reflection sensors with background suppression
- Diffuse reflection sensors with background suppression
- Diffuse reflection sensors with background suppression
- Diffuse reflection sensors with background suppression
- Diffuse reflection sensors with background suppression
- Diffuse reflection sensor
- Diffuse reflection sensor
- Diffuse reflection sensor
- Diffuse reflection sensor
- Diffuse reflection sensor
Specifications
- EMC
- EN 60947-5-2
- Display
- Switching status: 1 x LED, yellow; Power: 1 x LED, green
- Housing
- rectangular
- Remarks
- cULus - Class 2 source required
- Material
- housing: ABS orange; upper part of the housing: PPSU black
- Connector
- 1 x M8; coding: A; Contacts: 4; Locking: brass, coated; sealing: EPDM
- Protection
- IP 65; IP 67
- Range [mm]
- < 100; (white paper 200 x 200 mm)
- Weight [g]
- 13.1
- Application
- Industrial applications
- UL approval
- Ta: -25...40 °C; Enclosure type: Type 1; voltage supply: Class 2; UL approval number: E001
- MTTF [years]
- 1113
- Lens material
- front lens:PMMA
- Pack quantity
- 1 pcs.
- Type of light
- red light
- Lens alignment
- Side sensing
- Dimensions [mm]
- 46 x 13 x 21
- Output function
- light-on mode
- Special feature
- Background suppression
- IFM product code
- O6H213
- Protection class
- III
- Sealing material
- EPDM
- Wave length [nm]
- 633
- Electrical design
- NPN
- Function principle
- Diffuse reflection sensor
- Operating voltage [V]
- 10...30 DC
- Tightening torque [Nm]
- 0.5
- Current consumption [mA]
- 22; ((24 V))
- Short-circuit protection
- yes
- Ambient temperature [°C]
- -25...60
- Reverse polarity protection
- yes
- Switching frequency DC [Hz]
- 1000
- Max. light spot diameter [mm]
- 6
- Light spot dimensions refer to
- at maximum range
- Background suppression available
- yes
- Type of short-circuit protection
- yes (non-latching)
- Max. voltage drop switching output DC [V]
- 2.5
- Range on black object (6 % remission) [mm]
- 8...100
- Range on grey object (18 % remission) [mm]
- 4...100
- Range on white object (90 % remission) [mm]
- < 100
- Permanent current rating of switching output DC [mA]
- 100
