O6H207

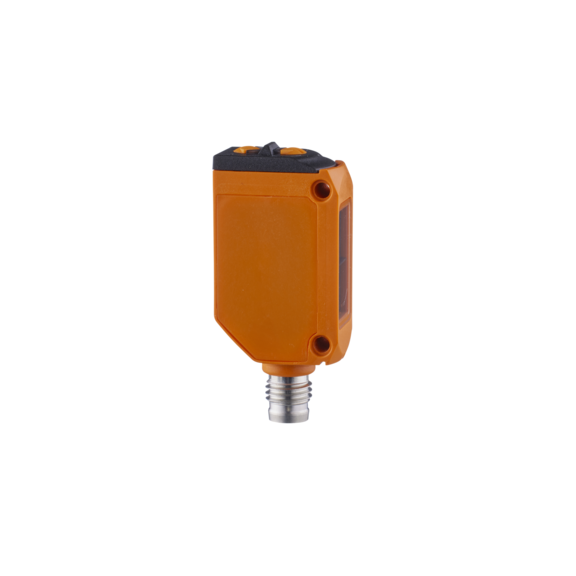

IFM O6H207 Diffuse reflection sensors with background suppression. IFM lists these product characteristics: Particularly compact housing for use where space is restricted, Intuitive setting of the sensitivity via potentiometer, User-friendly selection of light-on or dark-on via rotary switch, Precise background suppression sensing on highly reflective background, Excellent price/performance ratio.
Details
- Brand: IFM
- Part number: O6H207
- Series: O6
- Category: Photoelectric sensors
Related IFM parts
- Diffuse reflection sensors with background suppression
- Diffuse reflection sensor
- Diffuse reflection sensor
- Diffuse reflection sensor
- Diffuse reflection sensor
- Diffuse reflection sensor
- Diffuse reflection sensor
- Diffuse reflection sensor
- Diffuse reflection sensor
- Diffuse reflection sensors with background suppression
- Retro-reflective sensor
- Retro-reflective sensor
Specifications
- EMC
- EN 60947-5-2
- Display
- Switching status: 1 x LED, yellow; Power: 1 x LED, green
- Housing
- rectangular
- Remarks
- cULus - Class 2 source required
- Material
- housing: ABS orange; upper part of the housing: PPSU black
- Connector
- 1 x M8; coding: A; Contacts: 4; Locking: brass, coated; sealing: EPDM
- Protection
- IP 65; IP 67
- Range [mm]
- 2...200; (white paper 200 x 200 mm)
- Weight [g]
- 18.1
- Application
- Industrial applications
- UL approval
- Ta: -25...40 °C; Enclosure type: Type 1; voltage supply: Class 2; UL approval number: E001
- MTTF [years]
- 683
- Lens material
- front lens:PMMA
- Pack quantity
- 1 pcs.
- Type of light
- red light
- Lens alignment
- Side sensing
- Dimensions [mm]
- 46 x 13 x 21
- Output function
- light-on/dark-on mode; (selectable)
- Special feature
- Background suppression
- IFM product code
- O6H207
- Protection class
- III
- Range adjustable
- yes
- Sealing material
- EPDM
- Wave length [nm]
- 633
- Electrical design
- NPN
- Function principle
- Diffuse reflection sensor
- Operating voltage [V]
- 10...30 DC
- Tightening torque [Nm]
- 0.5
- Current consumption [mA]
- 22; ((24 V))
- Short-circuit protection
- yes
- Ambient temperature [°C]
- -25...60
- Reverse polarity protection
- yes
- Switching frequency DC [Hz]
- 1000
- Max. light spot diameter [mm]
- 8
- Light spot dimensions refer to
- at maximum range
- Background suppression available
- yes
- Type of short-circuit protection
- yes (non-latching)
- Max. voltage drop switching output DC [V]
- 2.5
- Range on black object (6 % remission) [mm]
- 8...200
- Range on grey object (18 % remission) [mm]
- 4...200
- Range on white object (90 % remission) [mm]
- 2...200
- Permanent current rating of switching output DC [mA]
- 100
