O6W202

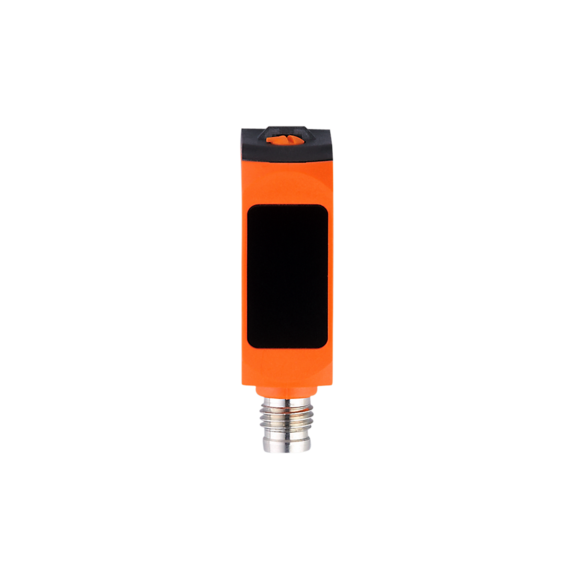

IFM O6W202 Diffuse reflection sensors with background suppression. IFM lists these product characteristics: Particularly compact housing for use where space is restricted, Intuitive setting of the sensitivity via potentiometer, Precise background suppression sensing on highly reflective background, Excellent price/performance ratio.
Details
- Brand: IFM
- Part number: O6W202
- Series: O6
- Category: Photoelectric sensors
Related IFM parts
- Retro-reflective sensor
- Retro-reflective sensor
- Diffuse reflection sensors with background suppression
- Diffuse reflection sensors with background suppression
- Through-beam sensor receiver
- Through-beam sensor receiver
- Through-beam sensor receiver
- Through-beam sensor receiver
- Through-beam sensor receiver
- Through-beam sensor receiver
- Through-beam sensor receiver
- Through-beam sensor receiver
Specifications
- EMC
- EN 60947-5-2
- Display
- Switching status: 1 x LED, yellow; Power: 1 x LED, green
- Housing
- rectangular
- Material
- housing: ABS orange; upper part of the housing: PPSU black; sealing: EPDM
- Profiles
- Smart Sensor - SSP 3.1: Measuring Sensor; Common - I&D: Identification and Diagnosis; Function: Multiple switching signal; Function: Teach channel
- SIO mode
- yes
- Connector
- 1 x M8; coding: A; Contacts: 4
- Protection
- IP 65; IP 67
- Range [mm]
- 25...400
- Weight [g]
- 18
- Application
- Industrial applications
- UL approval
- Ta: -25...55 °C; Enclosure type: Type 1; voltage supply: Limited Voltage/Current; File number UL: E174191
- MTTF [years]
- 682
- Lens material
- front lens:PMMA
- Pack quantity
- 1 pcs.
- SDCI standard
- IEC 61131-9
- Type of light
- Infrared light
- Application [m]
- 0.025...2
- Dimensions [mm]
- 35.4 x 13 x 21
- Output function
- light-on mode
- Special feature
- Background suppression
- IFM product code
- O6W202
- IO-Link revision
- 1.1
- Protection class
- III
- Range adjustable
- yes
- Wave length [nm]
- 940
- Electrical design
- PNP
- Transmission type
- COM2 (38,4 kBaud)
- Function principle
- Diffuse reflection sensor
- Operating elements
- potentiometer
- Sampling rate [Hz]
- 10
- Supported DeviceIDs
- Type of operation: DeviceID; default: 1159
- Operating voltage [V]
- 10...30 DC
- Tightening torque [Nm]
- 0.5
- Communication interface
- IO-Link
- Current consumption [mA]
- < 30
- Short-circuit protection
- yes
- Ambient temperature [°C]
- -25...55
- Notes on laser protection
- Caution:: Laser light; laser class:: 1; EN / IEC60825-1:2007; EN / IEC60825-1:2014; Complies with 21 CFR 1040.10 except for conformance with IEC 60825-1 Ed. 3, as described in Laser Notice No. 56, dated May 8, 2019.
- Storage temperature [°C]
- -40...85
- Background suppression [m]
- 2
- Required master port class
- A
- Reverse polarity protection
- yes
- Min. process cycle time [ms]
- 10
- Max. light spot diameter [mm]
- 200
- Max. power-on delay time [ms]
- 300
- Light spot dimensions refer to
- at maximum range
- Background suppression available
- yes
- Type of short-circuit protection
- yes (non-latching)
- Max. immunity to extraneous light [klx]
- 8
- Max. voltage drop switching output DC [V]
- 2.5
- Permanent current rating of switching output DC [mA]
- 100
