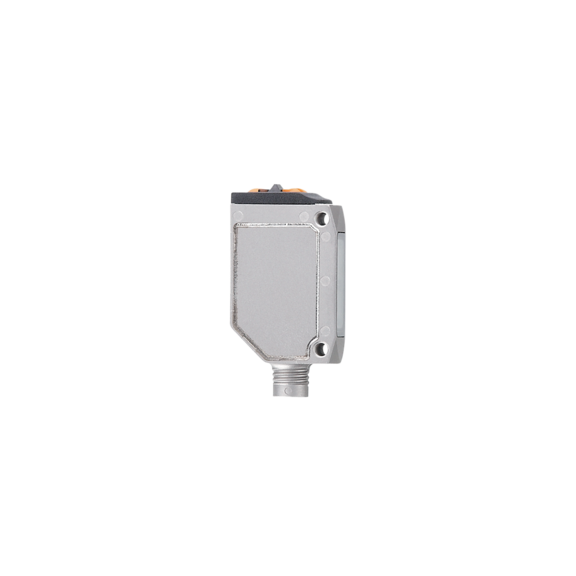

IFM O6E306 — Through-beam sensor receiver

IFM O6E306 Through-beam sensor receiver. IFM lists these product characteristics: Robust stainless steel housing for use in the food industry, Resistant to high-pressure cleaning with aggressive cleaning agents, High protection rating for the requirements of harsh industrial environments, Very long range independent of the object color, Intuitive setting of sensitivity and output function.

Details

Related IFM parts

Request a quote for O6E306

Specifications

EMC
EN 60947-5-2
Display
Switching status: 1 x LED, yellow; Power: 1 x LED, green
Housing
rectangular
Remarks
cULus - Class 2 source required
Material
housing: stainless steel (1.4404 / 316L); sealing: EPDM; plastics: PPSU
Connector
1 x M8; coding: A; Contacts: 3
Range [m]
< 10
Protection
IP 65; IP 67; IP 68; IP 69K
Weight [g]
35.7
Application
food and beverage industry
UL approval
Ta: -25...40 °C; Enclosure type: Type 1; voltage supply: Class 2; UL approval number: E001
MTTF [years]
1014
Lens material
front lens:PMMA
Pack quantity
1 pcs.
Type of light
red light
Lens alignment
Side sensing
Dimensions [mm]
34.8 x 13 x 21
Output function
light-on/dark-on mode; (selectable)
IFM product code
O6E306
Protection class
III
Range adjustable
yes
Wave length [nm]
633
Electrical design
NPN
Function principle
Through-beam sensor
Operating voltage [V]
10...30 DC
Tightening torque [Nm]
1; (screws)
Transmitter / receiver
receiver
Current consumption [mA]
7; ((24 V))
Short-circuit protection
yes
Ambient temperature [°C]
-25...80
Reverse polarity protection
yes
Switching frequency DC [Hz]
1000
Type of short-circuit protection
yes (non-latching)
Max. voltage drop switching output DC [V]
2.5
Permanent current rating of switching output DC [mA]
100
