O6S701

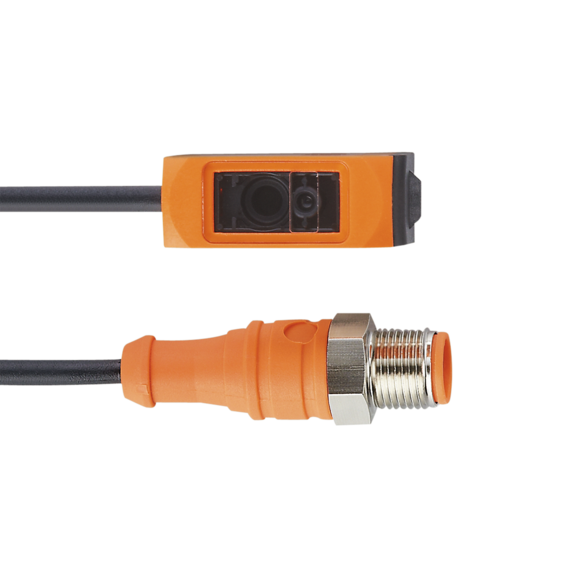

IFM O6S701 Through-beam sensor transmitter. IFM lists these product characteristics: Very long range, Visible red light for simple alignment, Extensive range of mounting components, Robust housing for use in harsh industrial environments.
Details
- Brand: IFM
- Part number: O6S701
- Series: O6
- Category: Photoelectric sensors
Related IFM parts
- Through-beam sensor transmitter
- Laser distance sensor
- Diffuse reflection sensors with background suppression
- Diffuse reflection sensors with background suppression
- Diffuse reflection sensors with background suppression
- Through-beam sensor transmitter
- Through-beam sensor transmitter
- Through-beam sensor transmitter
- Diffuse reflection sensors with background suppression
- Through-beam sensor transmitter
- Diffuse reflection sensor
- Retro-reflective sensor
Specifications
- EMC
- EN 60947-5-2
- Cable
- 0.3 m, PUR, black, Ø 3.7 mm; 3 x 0.25 mm²
- Display
- Power: 1 x LED, green
- Housing
- rectangular
- Remarks
- cULus - Class 2 source required
- Material
- housing: ABS orange; upper part of the housing: PPSU black; sealing: EPDM
- Profiles
- Smart Sensor - SSP 0: Generic Profiled Sensor; Function: Device identification; Function: Device diagnosis
- SIO mode
- yes
- Connector
- 1 x M12; coding: A; Contacts: 4
- Range [m]
- < 15
- Protection
- IP 65; IP 67
- Weight [g]
- 33.2
- Application
- suited for use in the machine tool industry
- UL approval
- Ta: -25...50 °C; Enclosure type: Type 1; voltage supply: Class 2
- MTTF [years]
- 697
- Lens material
- front lens:PMMA
- Pack quantity
- 1 pcs.
- SDCI standard
- IEC 61131-9
- Type of light
- red light
- Lens alignment
- Side sensing
- Dimensions [mm]
- 35.4 x 13 x 21
- IFM product code
- O6S701
- IO-Link revision
- 1.1
- Protection class
- III
- Wave length [nm]
- 650
- Transmission type
- COM2 (38,4 kBaud)
- Function principle
- Through-beam sensor
- Supported DeviceIDs
- Type of operation: DeviceID; default: 523
- Operating voltage [V]
- 10...30 DC
- Laser protection class
- 1
- Tightening torque [Nm]
- 0.5; (screws)
- Transmitter / receiver
- transmitter
- Communication interface
- IO-Link
- Current consumption [mA]
- 10; (24 V)
- Ambient temperature [°C]
- -10...60
- Notes on laser protection
- Caution:: Laser light; laser class:: 1; EN / IEC60825-1:2007; EN / IEC60825-1:2014; Complies with 21 CFR 1040.10 except for conformance with IEC 60825-1 Ed. 3, as described in Laser Notice No. 56, dated May 8, 2019.
- Required master port class
- A
- Reverse polarity protection
- yes
- Min. process cycle time [ms]
- 2.5
- IO-Link functions (acyclical)
- application specific tag; operating hours counter; switching cycles counter
- Max. light spot diameter [mm]
- 35
- Light spot dimensions refer to
- at maximum range
- IO-Link process data (cyclical)
- Function: bit length; process value: 8; device status: 4
- Diameter of the smallest detectable object [mm]
- 7; (15 m)
