O6S402

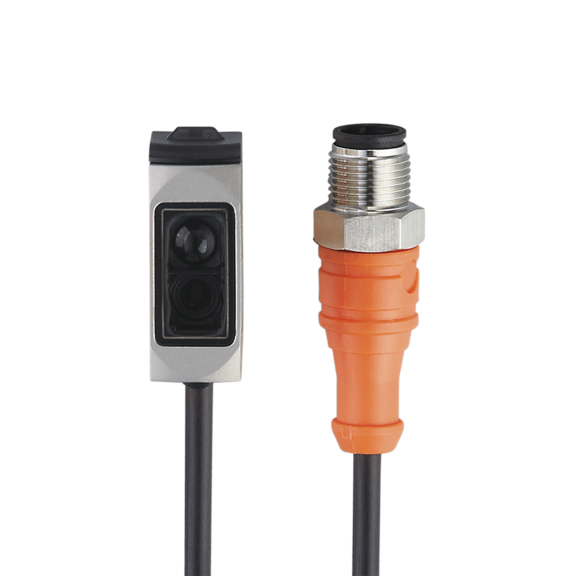

IFM O6S402 Through-beam sensor transmitter. IFM lists these product characteristics: Robust stainless steel housing for use in metalworking and in the automotive industry, Resistant to oils and coolants, High protection rating for the requirements of harsh industrial environments, Very long range independent of the object color.
Details
- Brand: IFM
- Part number: O6S402
- Series: O6
- Category: Photoelectric sensors
Related IFM parts
- Through-beam sensor transmitter
- Through-beam sensor transmitter
- Diffuse reflection sensors with background suppression
- Through-beam sensor transmitter
- Diffuse reflection sensor
- Retro-reflective sensor
- Retro-reflective sensor
- Through-beam sensor receiver
- Through-beam sensor receiver
- Through-beam sensor receiver
- Through-beam sensor receiver
- Retro-reflective sensor
Specifications
- EMC
- EN 60947-5-2
- Cable
- 0.3 m, PUR; 2 x 0.25 mm²
- Display
- Power: 1 x LED, green
- Housing
- rectangular
- Remarks
- cULus - Class 2 source required
- Material
- housing: stainless steel (1.4404 / 316L); plastics: PPSU; sealing: FKM
- Connector
- 1 x M12; coding: A; Contacts: 4
- Range [m]
- < 10
- Protection
- IP 65; IP 67; IP 68
- Weight [g]
- 49.7
- Application
- suited for use in the machine tool industry
- UL approval
- Ta: -25...50 °C; Enclosure type: Type 1; voltage supply: Class 2; UL approval number: E021
- MTTF [years]
- 2942
- Lens material
- front lens:PMMA
- Pack quantity
- 1 pcs.
- Type of light
- red light
- Lens alignment
- Side sensing
- Dimensions [mm]
- 34.8 x 13 x 21
- IFM product code
- O6S402
- Protection class
- III
- Wave length [nm]
- 633
- Function principle
- Through-beam sensor
- Operating voltage [V]
- 10...30 DC
- Tightening torque [Nm]
- 1; (screws)
- Transmitter / receiver
- transmitter
- Current consumption [mA]
- 11; ((24 V))
- Ambient temperature [°C]
- -25...60
- Max. light spot diameter [mm]
- 300
- Light spot dimensions refer to
- at maximum range
