O6E700

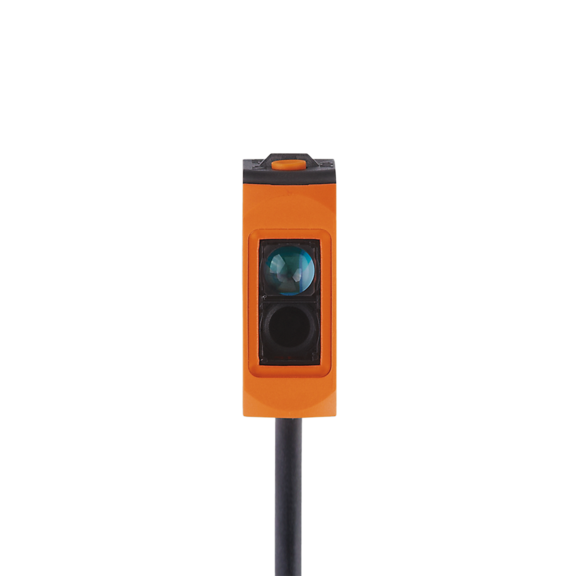

IFM O6E700 Through-beam sensor receiver. IFM lists these product characteristics: Particularly compact housing for use where space is restricted, Very long range independent of the object color, Sensitivity adjustable via teach buttons, User-friendly selection of light-on or dark-on via rotary switch, Excellent price/performance ratio.
Details
- Brand: IFM
- Part number: O6E700
- Series: O6
- Category: Photoelectric sensors
Related IFM parts
- Through-beam sensor receiver
- Through-beam sensor receiver
- Through-beam sensor receiver
- Retro-reflective sensor
- Retro-reflective sensor
- Retro-reflective sensor
- Retro-reflective sensor
- Retro-reflective sensor
- Retro-reflective sensor
- Retro-reflective sensor
- Retro-reflective sensor
- Retro-reflective sensor
Specifications
- EMC
- EN 60947-5-2
- Cable
- 2 m, PUR, black, Ø 3.7 mm; 3 x 0.25 mm²
- Display
- Switching status: 1 x LED, yellow; Power: 1 x LED, green
- Housing
- rectangular
- Remarks
- cULus - Class 2 source required
- Material
- housing: ABS orange; upper part of the housing: PPSU black; sealing: EPDM
- Profiles
- Smart Sensor - SSP 0: Generic Profiled Sensor; Function: Device identification; Function: Multiple switching signal; Function: Device diagnosis; Function: Teach channel
- SIO mode
- yes
- Range [m]
- 15
- Protection
- IP 65; IP 67
- Weight [g]
- 59.5
- Application
- suited for use in the machine tool industry
- UL approval
- Ta: -25...60 °C; Enclosure type: Type 1; voltage supply: Class 2; File number UL: E174191
- MTTF [years]
- 1134
- Lens material
- front lens:PMMA
- Pack quantity
- 1 pcs.
- SDCI standard
- IEC 61131-9
- Type of light
- red light
- Lens alignment
- Side sensing
- Dimensions [mm]
- 35.4 x 13 x 21
- Output function
- light-on/dark-on mode; (selectable)
- IFM product code
- O6E700
- IO-Link revision
- 1.1
- Protection class
- III
- Wave length [nm]
- 650
- Electrical design
- PNP
- Transmission type
- COM2 (38,4 kBaud)
- Function principle
- Through-beam sensor
- Supported DeviceIDs
- Type of operation: DeviceID; default: 524
- Operating voltage [V]
- 10...30 DC
- Tightening torque [Nm]
- 0.5; (screws)
- Transmitter / receiver
- receiver
- Communication interface
- IO-Link
- Current consumption [mA]
- 13; (24 V)
- Ambient temperature [°C]
- -10...60
- Required master port class
- A
- Reverse polarity protection
- yes
- Switching frequency DC [Hz]
- 1000
- Min. process cycle time [ms]
- 2.5
- IO-Link functions (acyclical)
- application specific tag; operating hours counter; switching cycles counter
- IO-Link process data (cyclical)
- Function: bit length; process value: 8; device status: 4; binary switching information: 1
- Type of short-circuit protection
- yes (non-latching)
- Max. voltage drop switching output DC [V]
- 2.5
- Diameter of the smallest detectable object [mm]
- 7; (15 m)
- Permanent current rating of switching output DC [mA]
- 100
