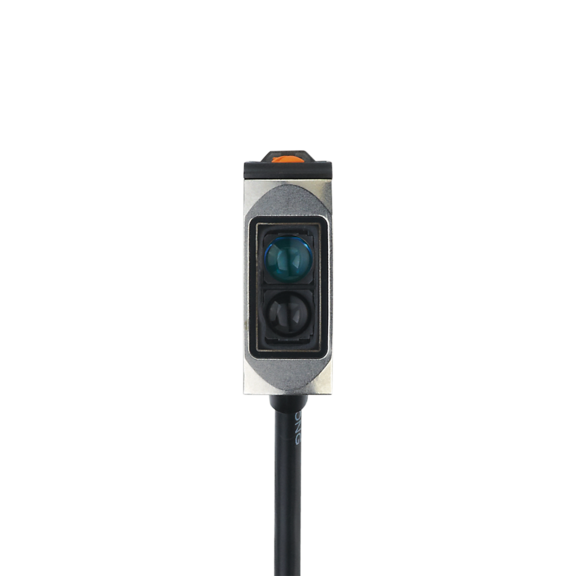

IFM O6P304 — Retro-reflective sensor

IFM O6P304 Retro-reflective sensor. IFM lists these product characteristics: Robust stainless steel housing for use in the food industry, Resistant to high-pressure cleaning with aggressive cleaning agents, High protection rating for the requirements of harsh industrial environments, Very long range independent of the object color, Intuitive setting of sensitivity and output function.

Details

Related IFM parts

Request a quote for O6P304

Specifications

EMC
EN 60947-5-2
Cable
2 m, PVC; 3 x 0.25 mm²
Display
Switching status: 1 x LED, yellow; Power: 1 x LED, green
Housing
rectangular
Remarks
cULus - Class 2 source required
Material
housing: stainless steel (1.4404 / 316L); sealing: EPDM; plastics: PPSU
Protection
IP 65; IP 67; IP 68; IP 69K
Weight [g]
81.2
Application
food and beverage industry
UL approval
Ta: -25...80 °C; Enclosure type: Type 1; voltage supply: Class 2; UL approval number: E003
MTTF [years]
908
Lens material
front lens:PMMA
Pack quantity
1 pcs.
Type of light
red light
Lens alignment
Side sensing
Dimensions [mm]
34.8 x 13 x 21
Output function
light-on/dark-on mode; (selectable)
Special feature
polarization filter
IFM product code
O6P304
Protection class
III
Range adjustable
yes
Wave length [nm]
633
Electrical design
NPN
Function principle
Retro-reflective sensor
Operating voltage [V]
10...30 DC
Tightening torque [Nm]
1; (screws)
Current consumption [mA]
12; ((24 V))
Short-circuit protection
yes
Ambient temperature [°C]
-25...80
Reverse polarity protection
yes
Switching frequency DC [Hz]
1000
Max. light spot diameter [mm]
150
Polarization filter available
yes
Light spot dimensions refer to
at maximum range
Type of short-circuit protection
yes (non-latching)
Max. voltage drop switching output DC [V]
2.5
Range referred to prismatic reflector [m]
0.05...5; (Prismatic reflector Ø 80 E20005)
Permanent current rating of switching output DC [mA]
100
