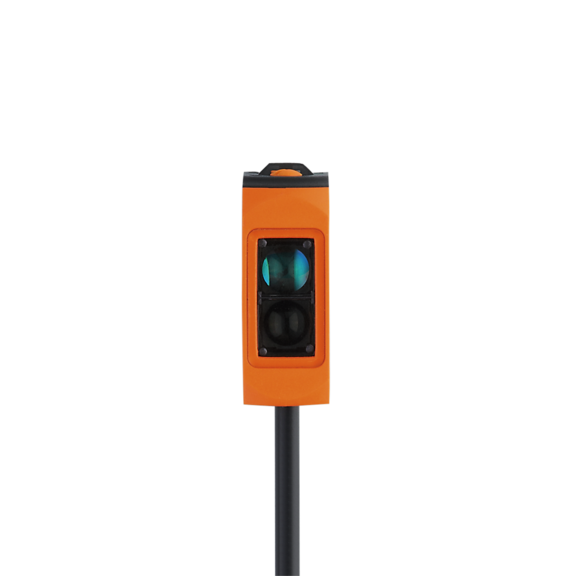

IFM O6T218 — Diffuse reflection sensor

IFM O6T218 Diffuse reflection sensor. IFM lists these product characteristics: Particularly compact housing for use where space is restricted, Intuitive potentiometer setting of the range, User-friendly selection of light-on or dark-on via rotary switch, Excellent price/performance ratio.

Details

Related IFM parts

Request a quote for O6T218

Specifications

EMC
EN 60947-5-2
Cable
5 m, PUR; 3 x 0.25 mm²
Display
Switching status: 1 x LED, yellow; Power: 1 x LED, green
Housing
rectangular
Material
housing: ABS orange; upper part of the housing: PPSU black
Protection
IP 65; IP 67
Range [mm]
5...600; (white paper 200 x 200 mm 90 % remission)
Weight [g]
121.6
Application
Industrial applications
Lens material
front lens:PMMA
Pack quantity
1 pcs.
Type of light
Infrared light
Lens alignment
Side sensing
Dimensions [mm]
35.4 x 13 x 21
Output function
light-on/dark-on mode; (selectable)
IFM product code
O6T218
Protection class
III
Range adjustable
yes
Wave length [nm]
850
Electrical design
NPN
Function principle
Diffuse reflection sensor
Setting range [mm]
100...600
Operating voltage [V]
10...30 DC
Tightening torque [Nm]
0.5
Current consumption [mA]
16; ((24 V))
Short-circuit protection
yes
Ambient temperature [°C]
-25...60
Reverse polarity protection
yes
Switching frequency DC [Hz]
1000
Max. light spot diameter [mm]
24
Light spot dimensions refer to
at maximum range
Type of short-circuit protection
yes (non-latching)
Max. voltage drop switching output DC [V]
2.5
Permanent current rating of switching output DC [mA]
100
