O6T216

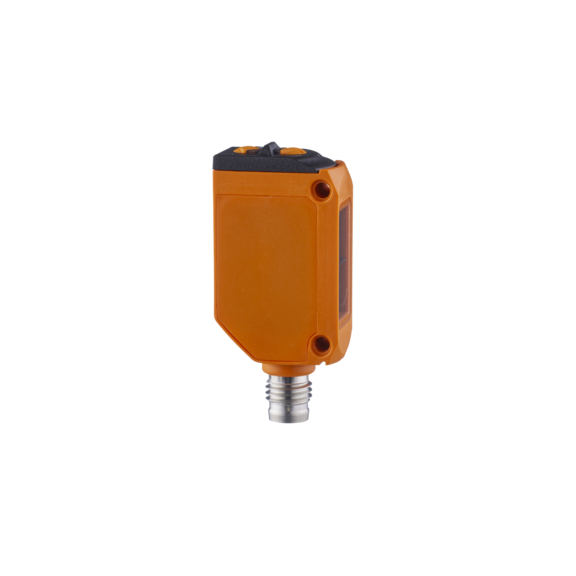

IFM O6T216 — Diffuse reflection sensor

IFM O6T216 Diffuse reflection sensor. IFM lists these product characteristics: Particularly compact housing for use where space is restricted, Intuitive potentiometer setting of the range, User-friendly selection of light-on or dark-on via rotary switch, Excellent price/performance ratio.

Details

Related IFM parts

Request a quote for O6T216

Specifications

EMC
EN 60947-5-2
Display
Switching status: 1 x LED, yellow; Power: 1 x LED, green
Housing
rectangular
Remarks
cULus - Class 2 source required
Material
housing: ABS orange; upper part of the housing: PPSU black
Connector
1 x M8; coding: A; Contacts: 4; Locking: brass, coated; sealing: EPDM
Protection
IP 65; IP 67
Range [mm]
5...600; (white paper 200 x 200 mm 90 % remission)
Weight [g]
18.2
Application
Industrial applications
UL approval
Ta: -25...40 °C; Enclosure type: Type 1; voltage supply: Class 2; UL approval number: E001
MTTF [years]
898
Lens material
front lens:PMMA
Pack quantity
1 pcs.
Type of light
Infrared light
Lens alignment
Side sensing
Dimensions [mm]
46 x 13 x 21
Output function
light-on/dark-on mode; (selectable)
IFM product code
O6T216
Protection class
III
Range adjustable
yes
Sealing material
EPDM
Wave length [nm]
850
Electrical design
NPN
Function principle
Diffuse reflection sensor
Setting range [mm]
100...600
Operating voltage [V]
10...30 DC
Tightening torque [Nm]
0.5
Current consumption [mA]
16; ((24 V))
Short-circuit protection
yes
Ambient temperature [°C]
-25...60
Reverse polarity protection
yes
Switching frequency DC [Hz]
1000
Max. light spot diameter [mm]
24
Light spot dimensions refer to
at maximum range
Type of short-circuit protection
yes (non-latching)
Max. voltage drop switching output DC [V]
2.5
Permanent current rating of switching output DC [mA]
100
