O6P309

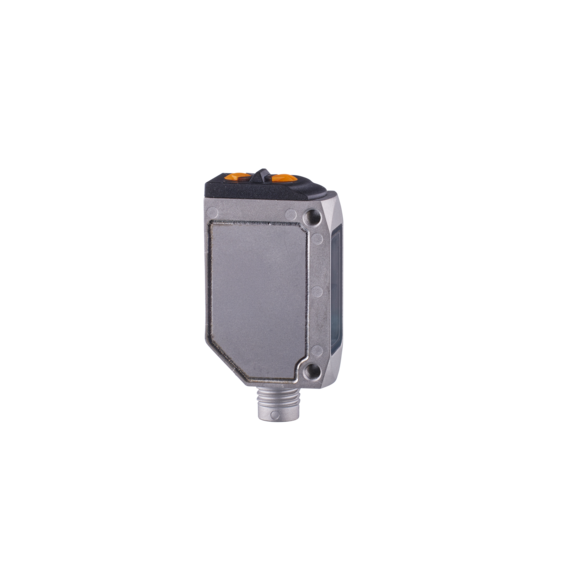

IFM O6P309 Retro-reflective sensor. IFM lists these product characteristics: Robust stainless steel housing for use in the food industry, Resistant to high-pressure cleaning with aggressive cleaning agents, High protection rating for the requirements of harsh industrial environments, Very long range independent of the object color, Intuitive setting of sensitivity and output function.
Details
- Brand: IFM
- Part number: O6P309
- Series: O6
- Category: Photoelectric sensors
Related IFM parts
- Retro-reflective sensor
- Retro-reflective sensor
- Through-beam sensor transmitter
- Diffuse reflection sensors with background suppression
- Diffuse reflection sensors with background suppression
- Diffuse reflection sensors with background suppression
- Diffuse reflection sensors with background suppression
- Diffuse reflection sensors with background suppression
- Diffuse reflection sensors with background suppression
- Diffuse reflection sensors with background suppression
- Diffuse reflection sensors with background suppression
- Diffuse reflection sensors with background suppression
Specifications
- EMC
- EN 60947-5-2
- Display
- Switching status: 1 x LED, yellow; Power: 1 x LED, green
- Housing
- rectangular
- Remarks
- cULus - Class 2 source required
- Material
- housing: stainless steel (1.4404 / 316L); sealing: EPDM; plastics: PPSU
- Profiles
- Smart Sensor - SSP 0: Generic Profiled Sensor; Function: Device identification; Function: Multiple switching signal
- SIO mode
- yes
- Connector
- 1 x M8; coding: A; Contacts: 4
- Protection
- IP 65; IP 67; IP 68; IP 69K
- Weight [g]
- 34.4
- Application
- food and beverage industry
- UL approval
- Ta: -25...40 °C; Enclosure type: Type 1; voltage supply: Class 2; UL approval number: E010
- MTTF [years]
- 681
- Lens material
- front lens:PMMA
- Pack quantity
- 1 pcs.
- SDCI standard
- IEC 61131-9
- Type of light
- red light
- Lens alignment
- Side sensing
- Dimensions [mm]
- 41.3 x 13 x 21
- Output function
- light-on/dark-on mode; (selectable)
- Special feature
- polarization filter
- IFM product code
- O6P309
- IO-Link revision
- 1.1
- Protection class
- III
- Range adjustable
- yes
- Wave length [nm]
- 633
- Electrical design
- PNP
- Transmission type
- COM2 (38,4 kBaud)
- Function principle
- Retro-reflective sensor
- Supported DeviceIDs
- Type of operation: DeviceID; default: 422
- Operating voltage [V]
- 10...30 DC
- Tightening torque [Nm]
- 1; (screws)
- Communication interface
- IO-Link
- Current consumption [mA]
- 12; ((24 V))
- Short-circuit protection
- yes
- Ambient temperature [°C]
- -25...80
- Required master port class
- A
- Reverse polarity protection
- yes
- Switching frequency DC [Hz]
- 1000
- Min. process cycle time [ms]
- 2.5
- IO-Link functions (acyclical)
- application specific tag; operating hours counter; switching cycles counter
- Max. light spot diameter [mm]
- 150
- Polarization filter available
- yes
- Light spot dimensions refer to
- at maximum range
- IO-Link process data (cyclical)
- Function: bit length; process value: 8; binary switching information: 1
- Type of short-circuit protection
- yes (non-latching)
- Max. voltage drop switching output DC [V]
- 2.5
- Range referred to prismatic reflector [m]
- 0.05...5; (Prismatic reflector Ø 80 E20005)
- Permanent current rating of switching output DC [mA]
- 100
